EGR Solenoid Valve: Description

The EGR solenoid valve is a duty control type solenoid valve, which controls EGR valve operating negative pressure to the throttle body port.

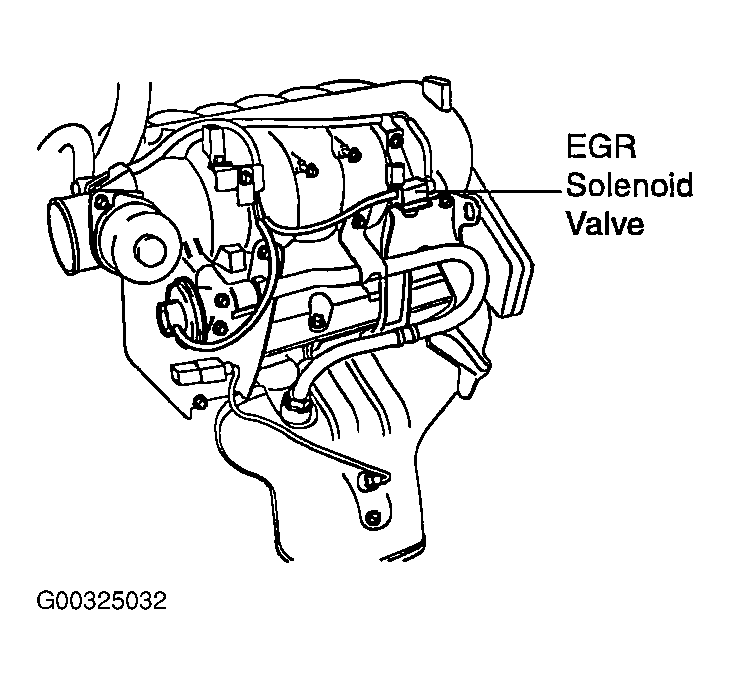

Fig 1: Locating EGR Solenoid Valve

Courtesy of KIA MOTORS AMERICA, INC.
