3. Ecu Terminal In/Out Check Sheet

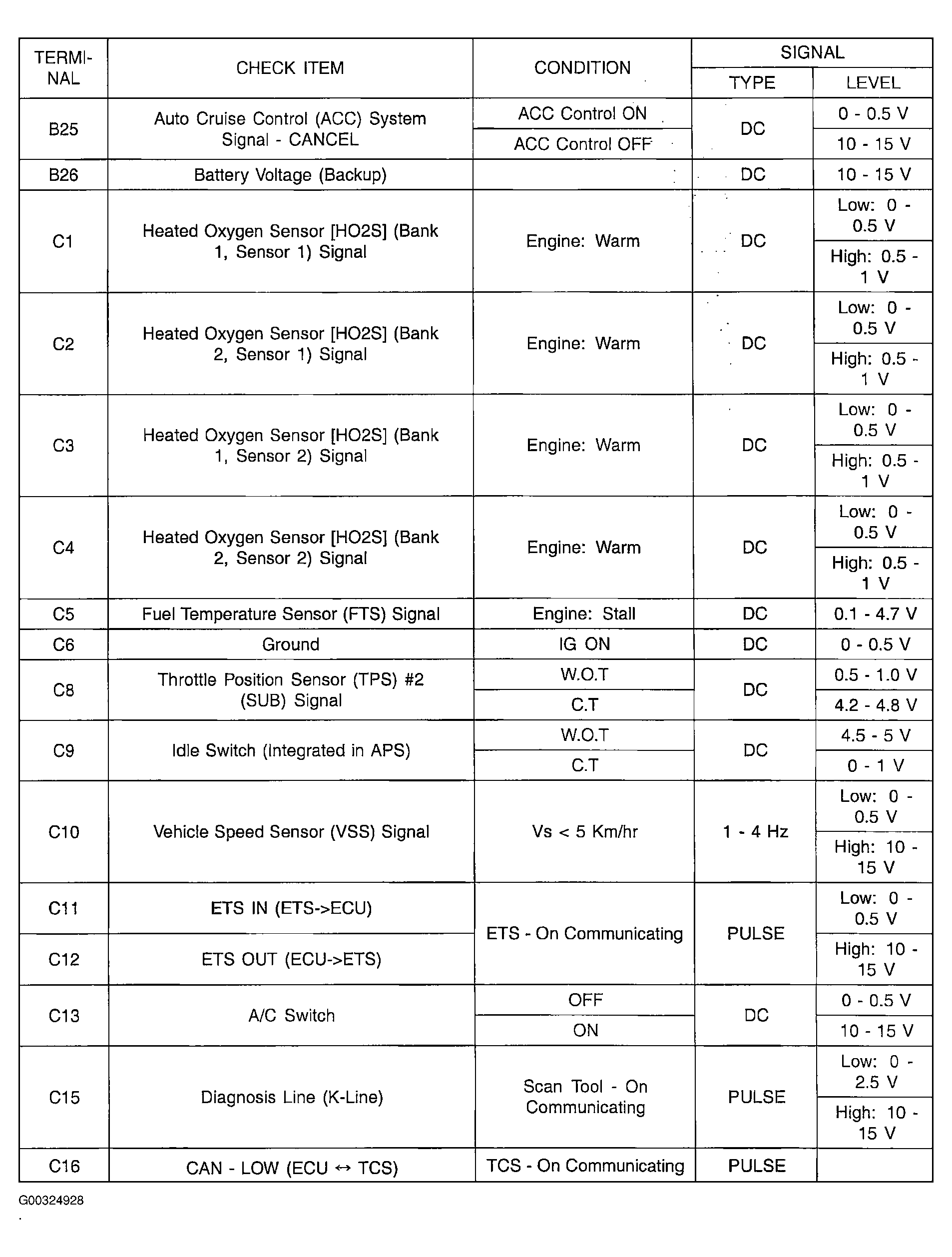

Fig 1: ECM In/Out Condition Chart (1 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

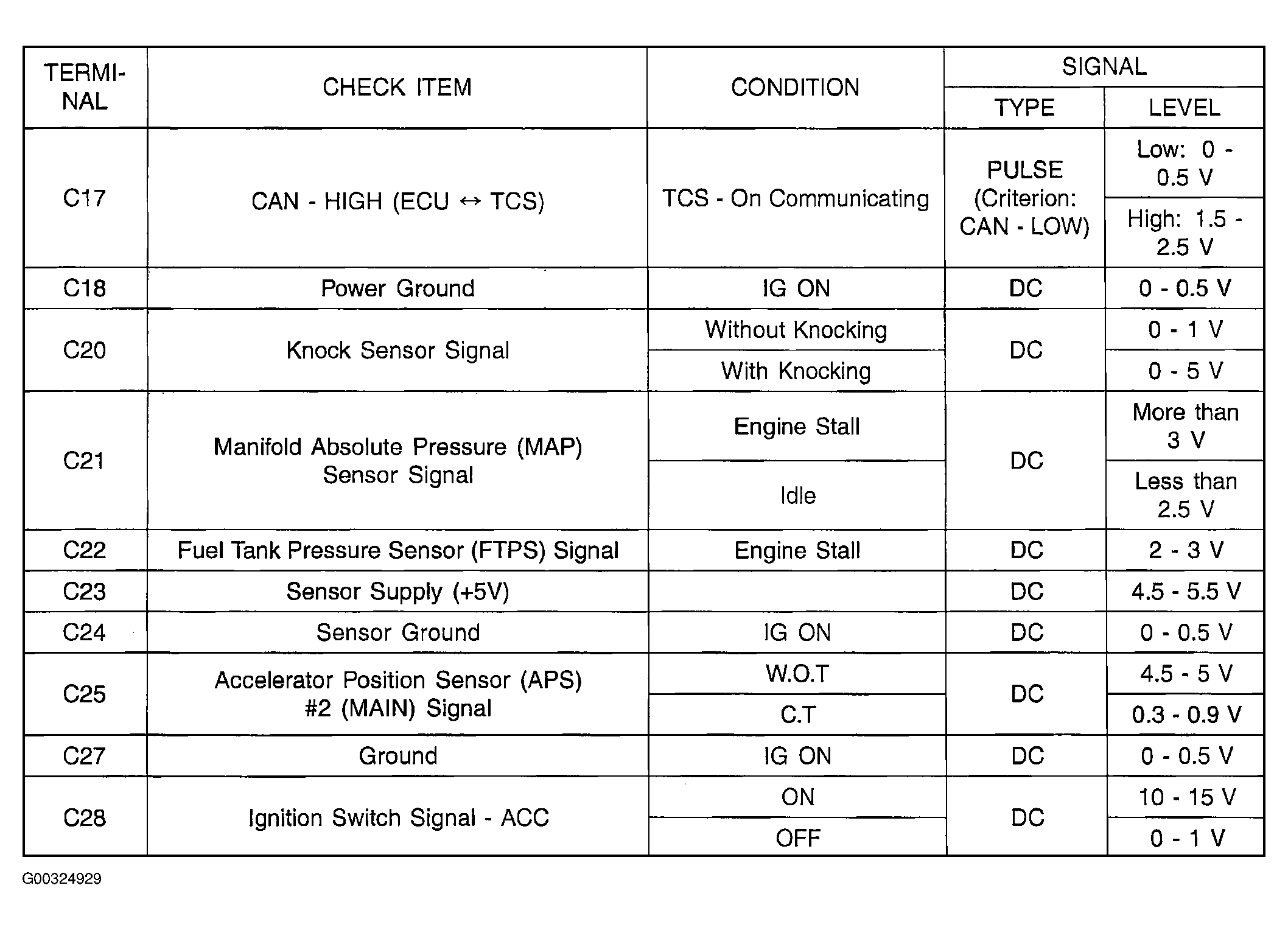

Fig 2: ECM In/Out Condition Chart (2 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

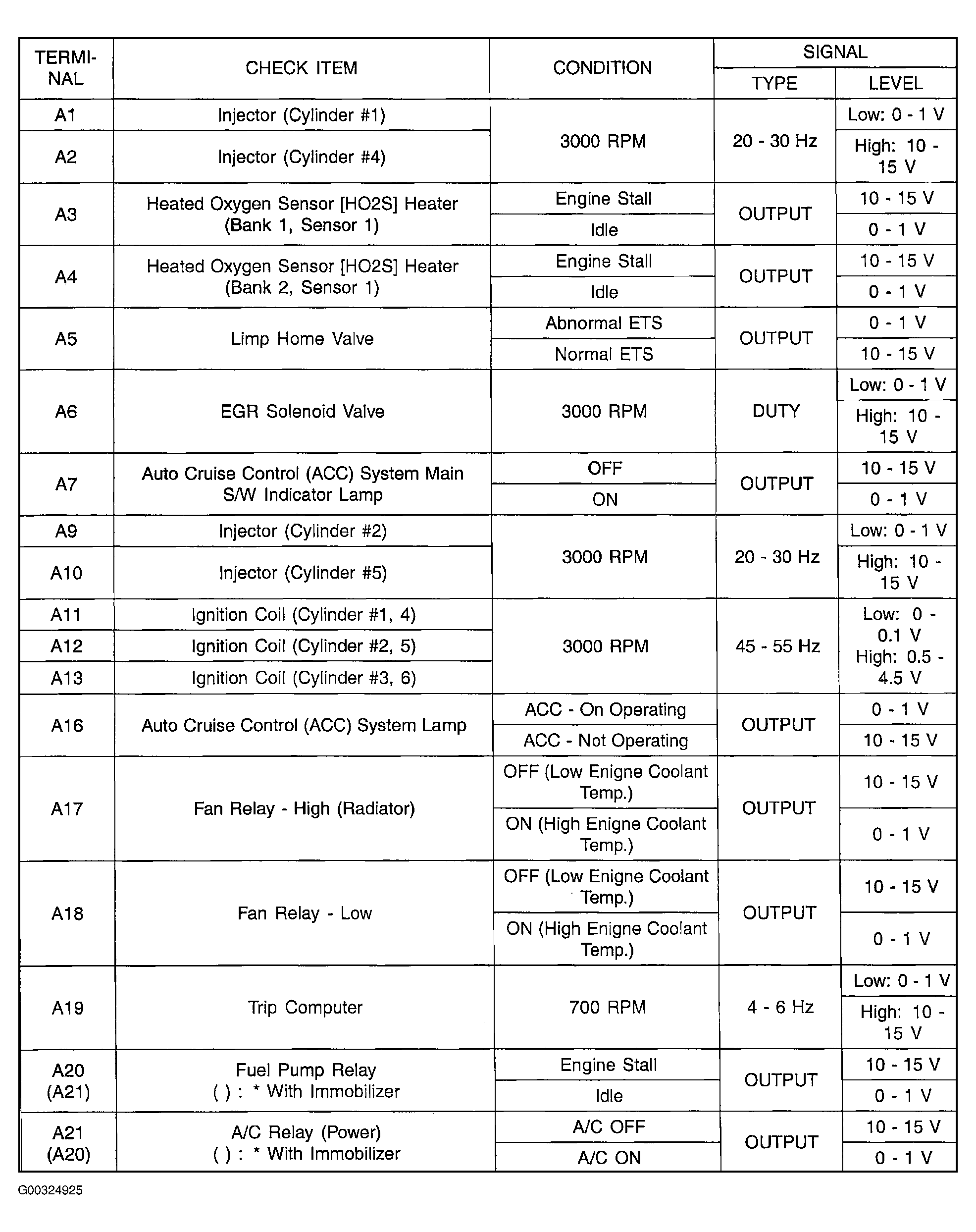

Fig 3: ECM In/Out Condition Chart (3 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

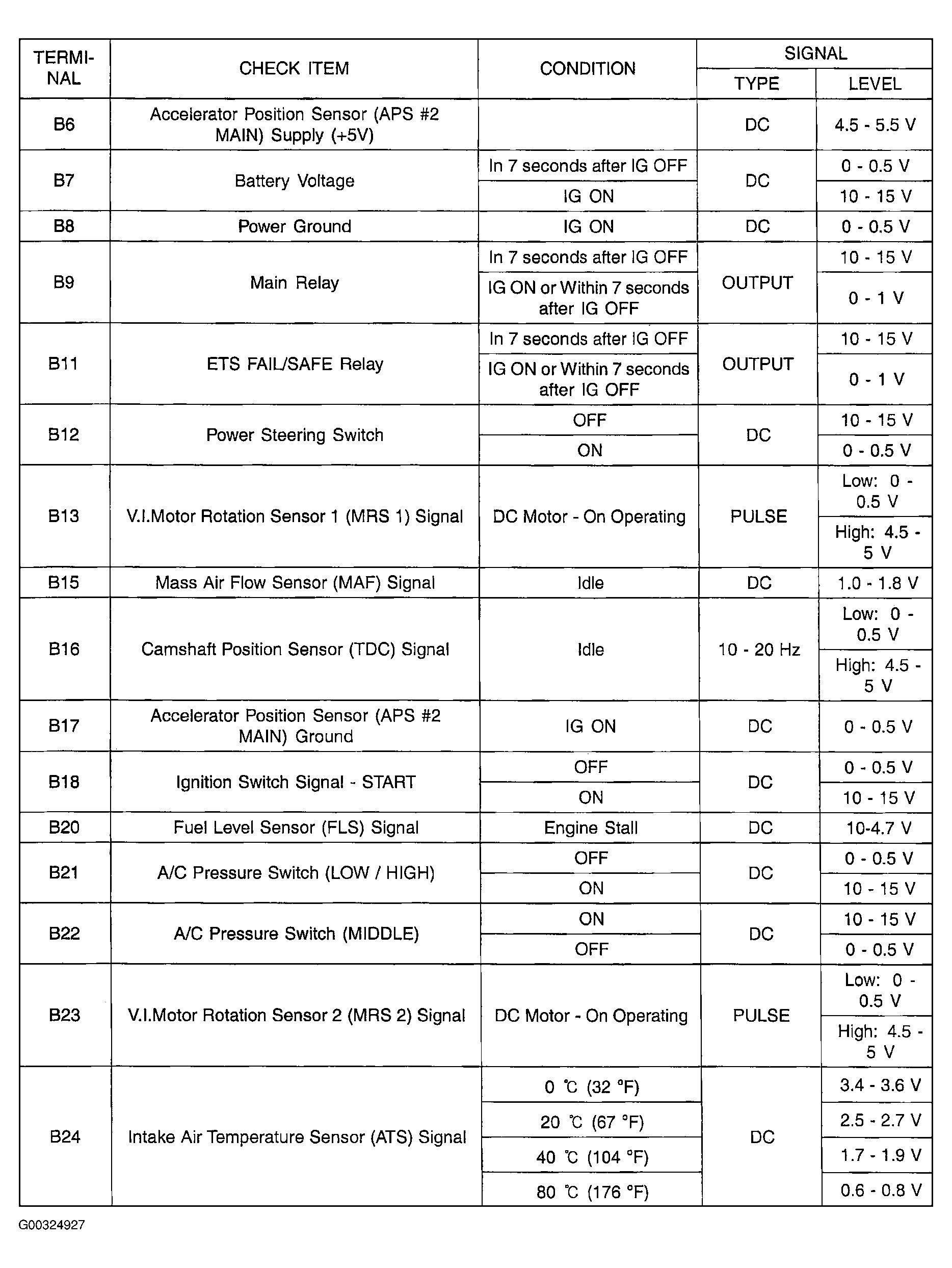

Fig 4: ECM In/Out Condition Chart (4 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.

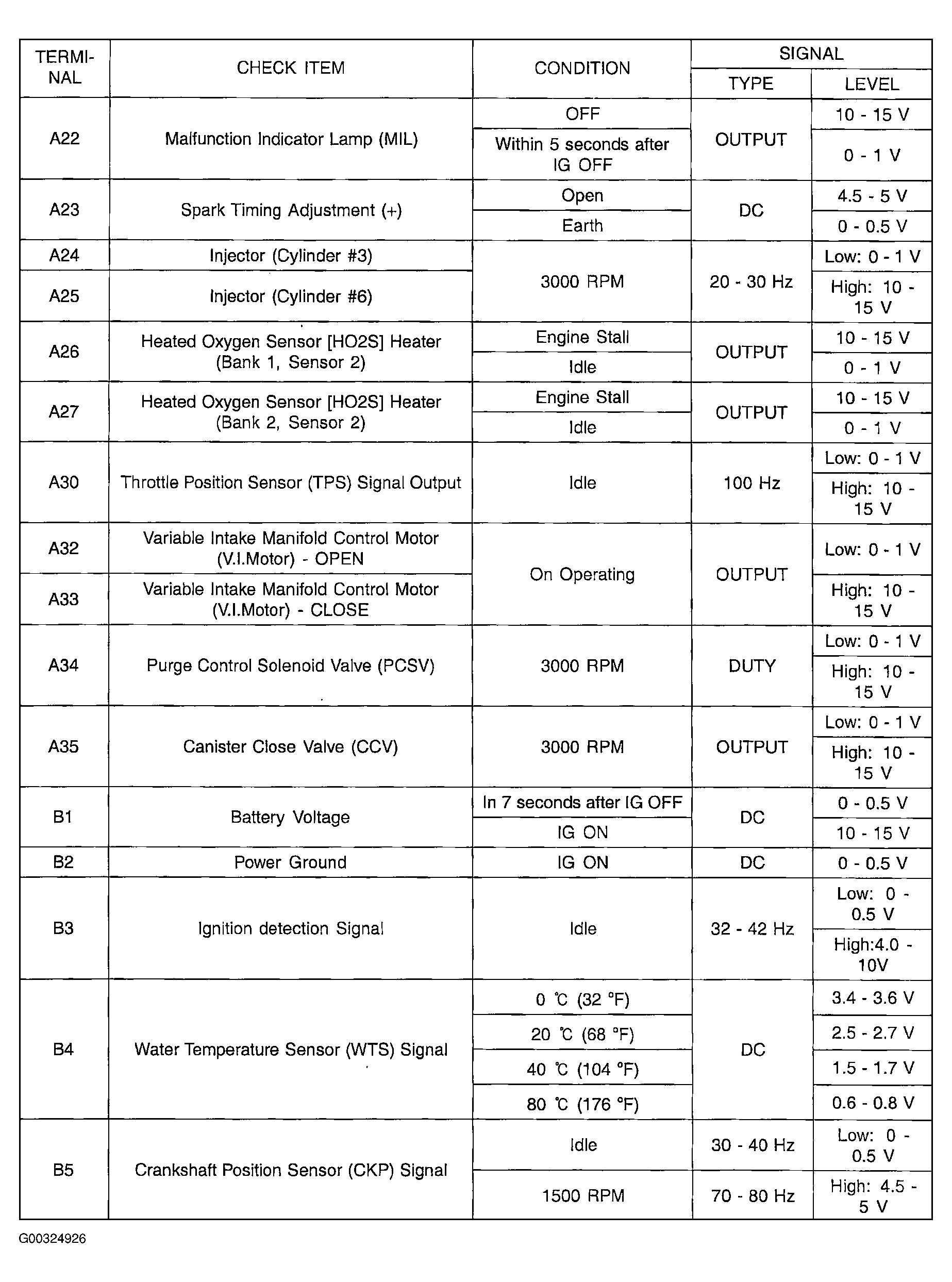

Fig 5: ECM In/Out Condition Chart (5 Of 5)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
