Testing With Hi-Scan (Pro)

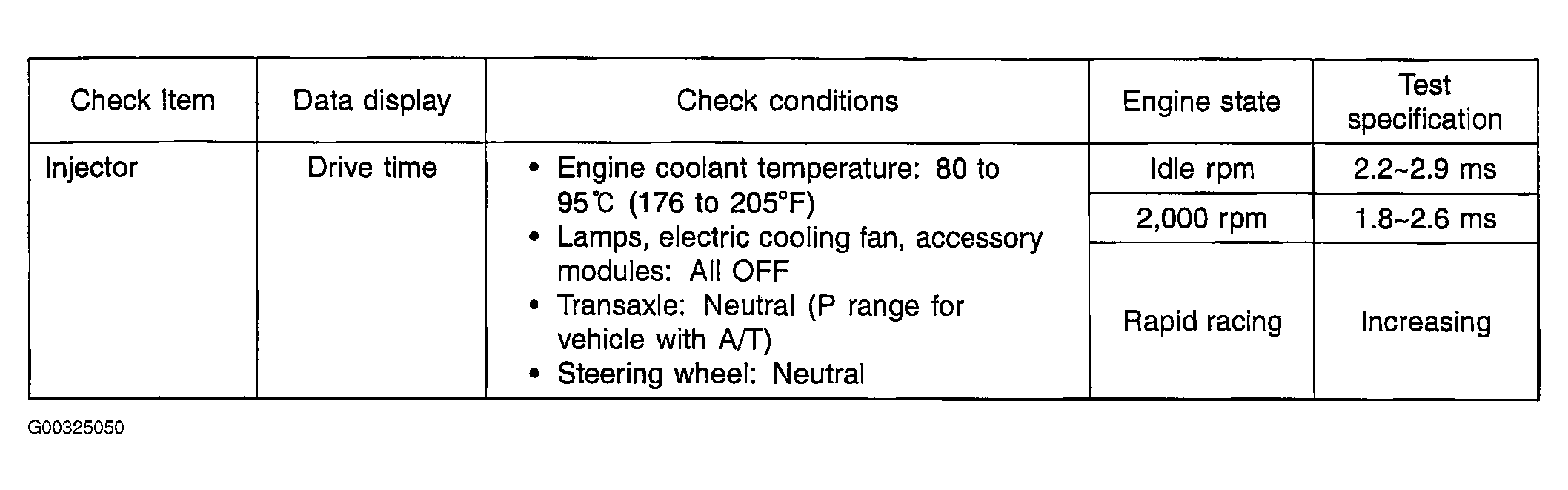

Fig 1: Testing Fuel Injector Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

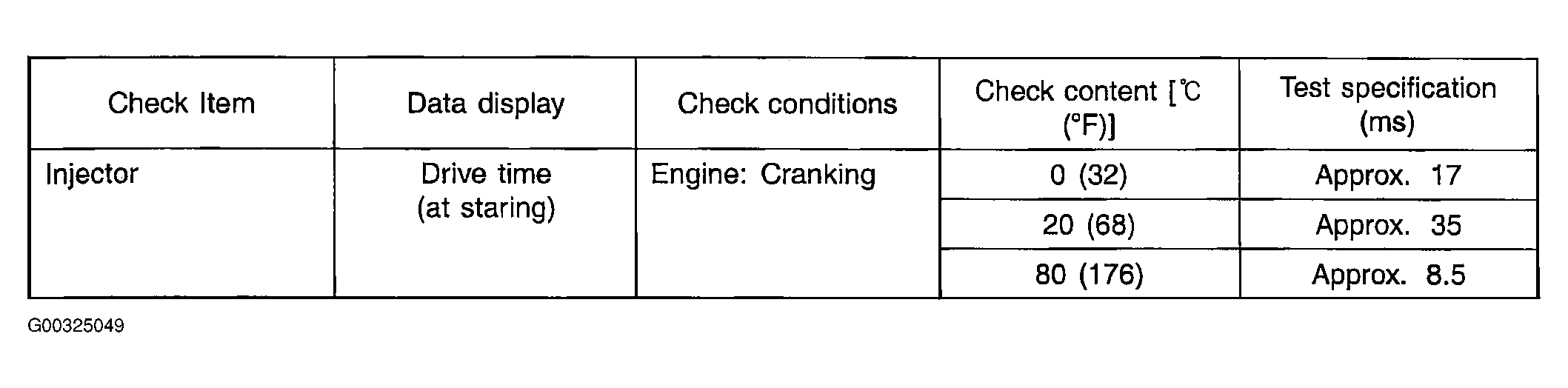

Fig 2: Testing Fuel Injector Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

Drive time indicates the injector activation time when the supply voltage is 11V and the cranking speed is less than 250 rpm.
When engine coolant temperature is lower than 0 °C (32 °F), the ECU fires all four cylinders simultaneously.
When the vehicle is new (within initial operation of about 500 km (300 miles)), the injector drive time may be about 10% longer.

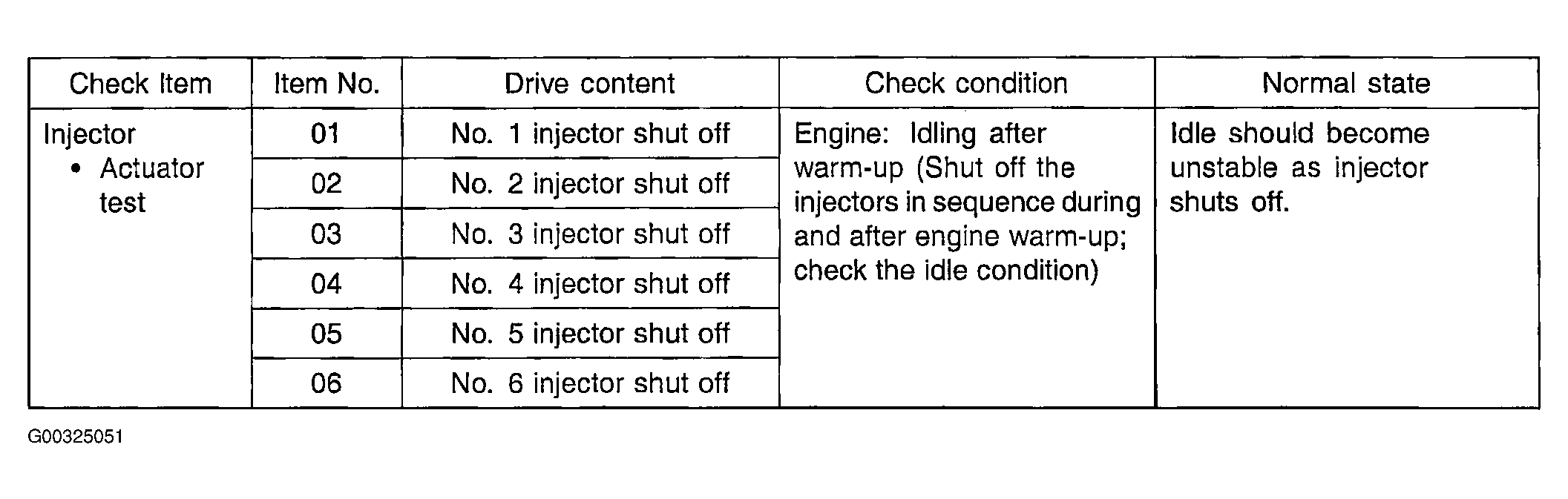

Fig 3: Illustrating Injector Actuator Test

Courtesy of KIA MOTORS AMERICA, INC.
