Harness Inspection Procedures

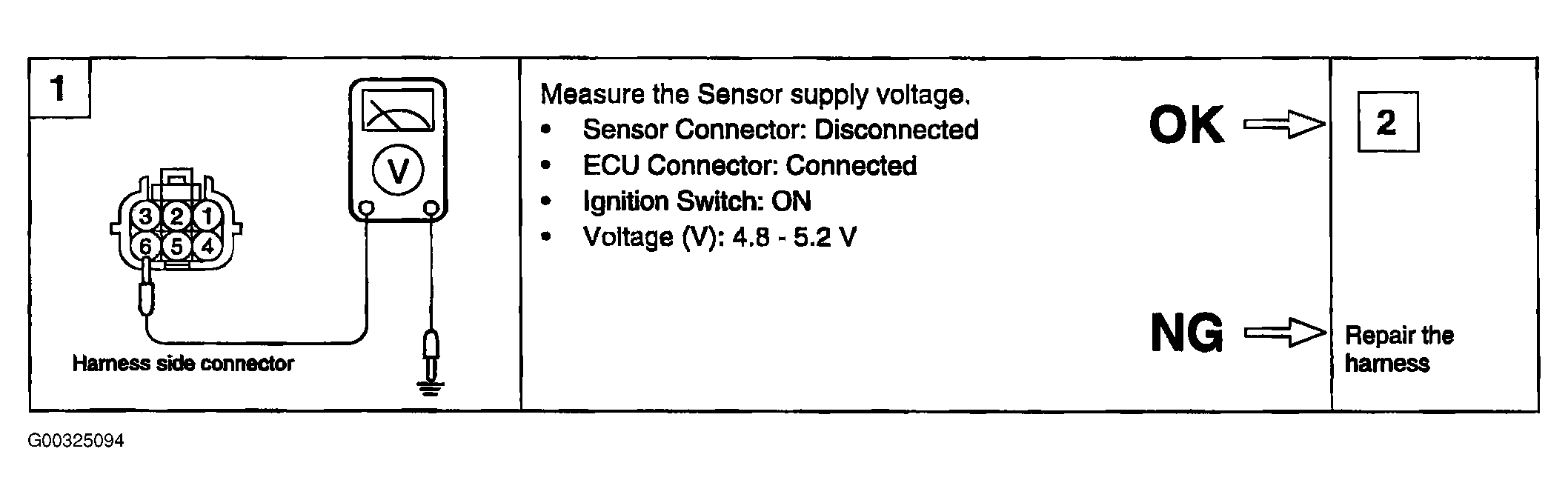

Fig 1: Illustrating FLS Harness Inspection Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

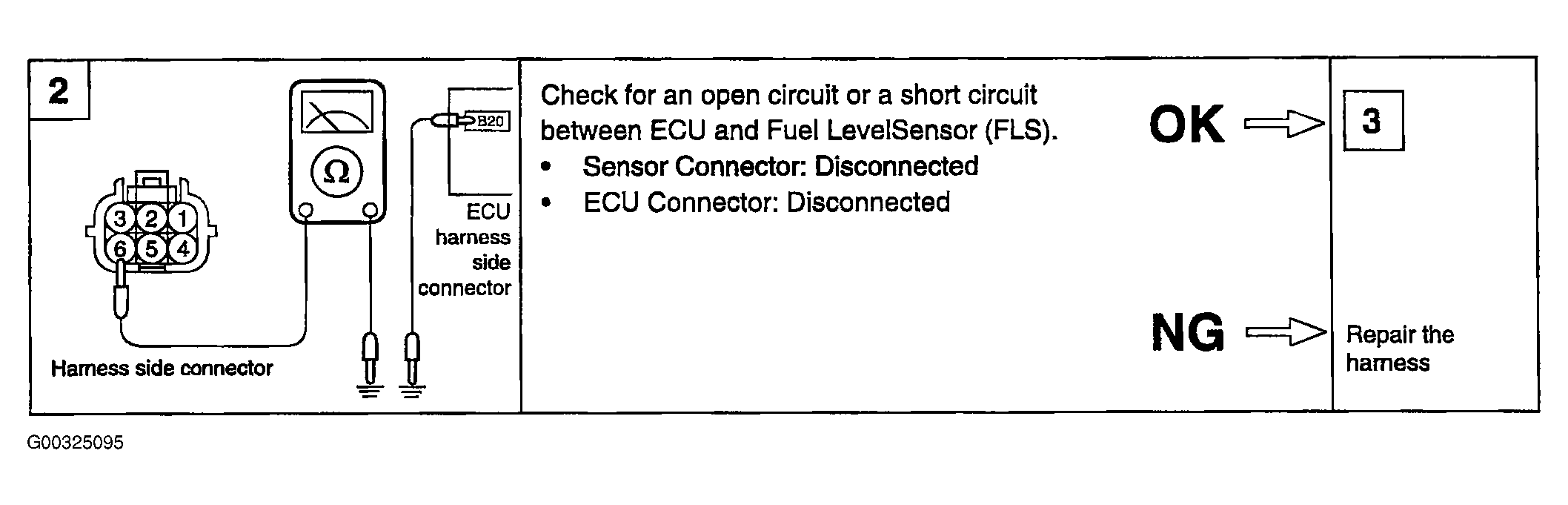

Fig 2: Illustrating FLS Harness Inspection Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

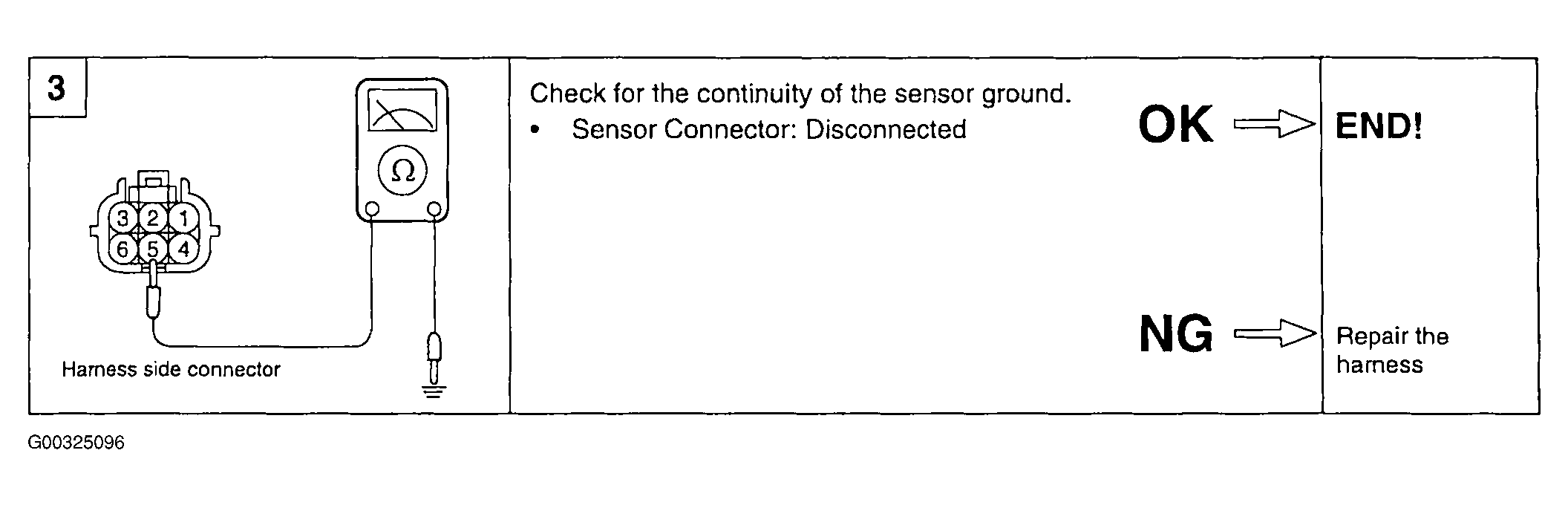

Fig 3: Illustrating FLS Harness Inspection Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
