Fuel Flow Control Chart

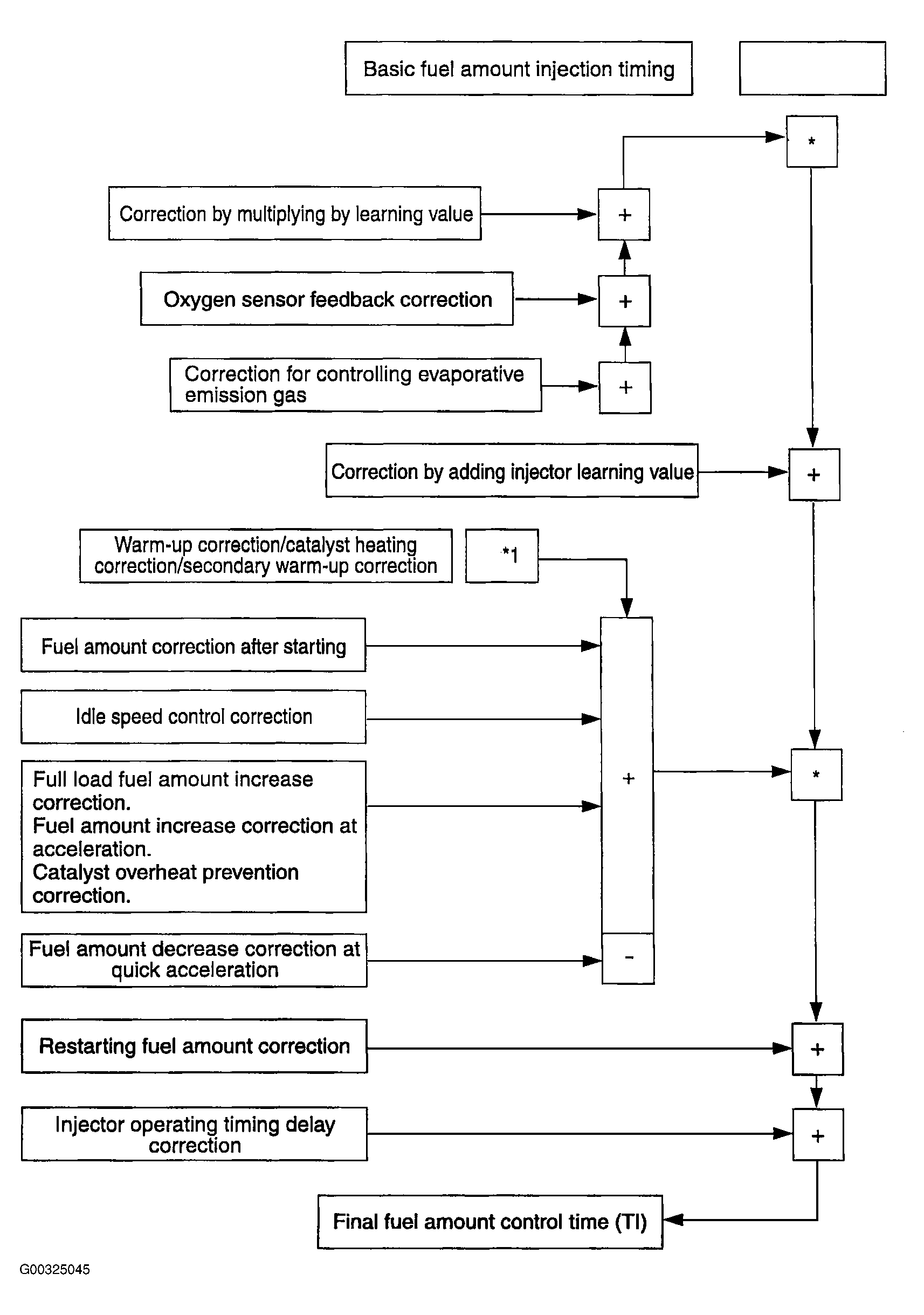

Fig 1: Illustrating Fuel Flow Control Chart
Courtesy of KIA MOTORS AMERICA, INC.
