Troubleshooting Procedures: Notes

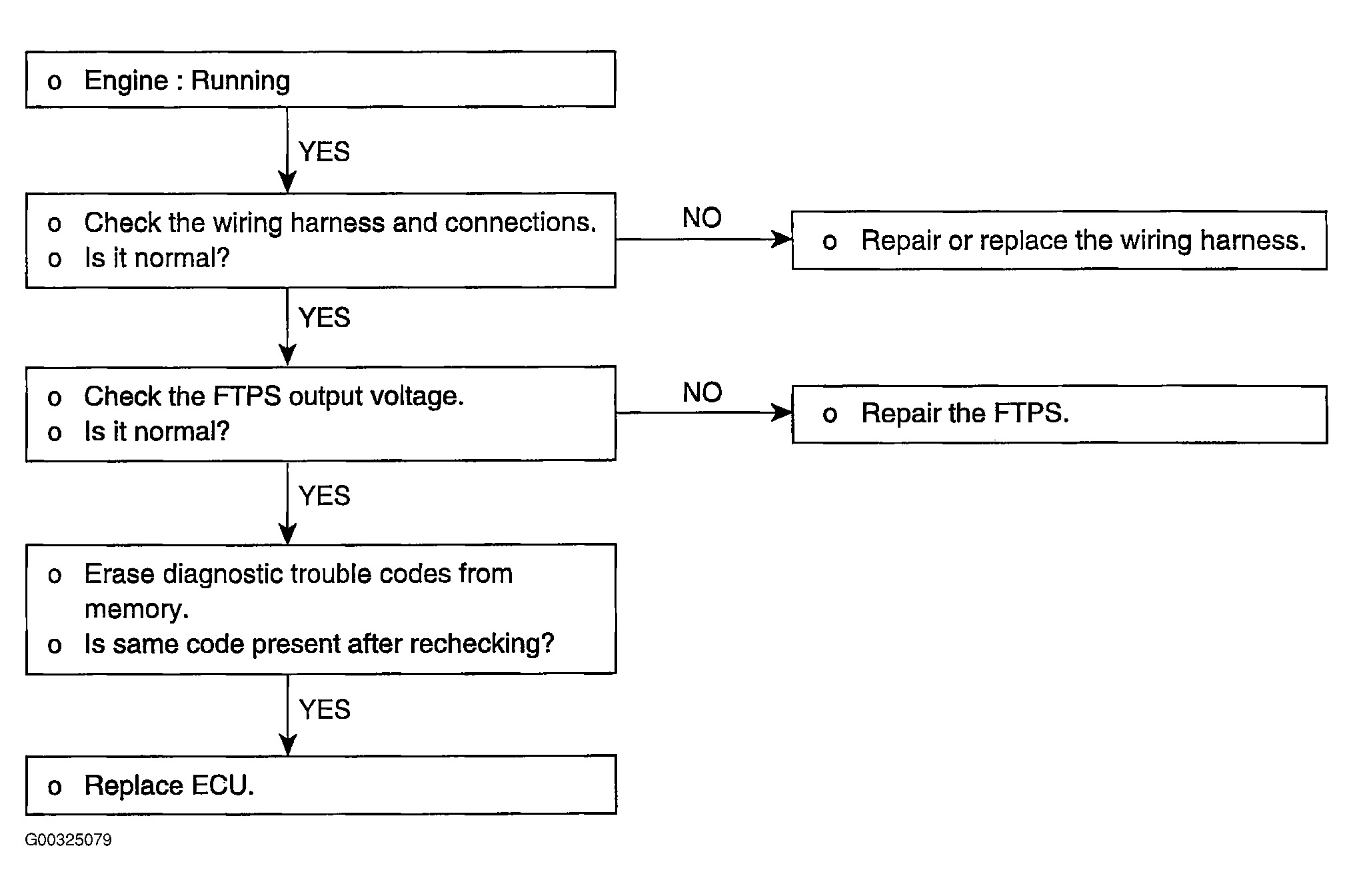

Fig 1: Illustrating FTSP Trouble Chart

G00325079

Courtesy of KIA MOTORS AMERICA, INC.
