Idle Speed Control

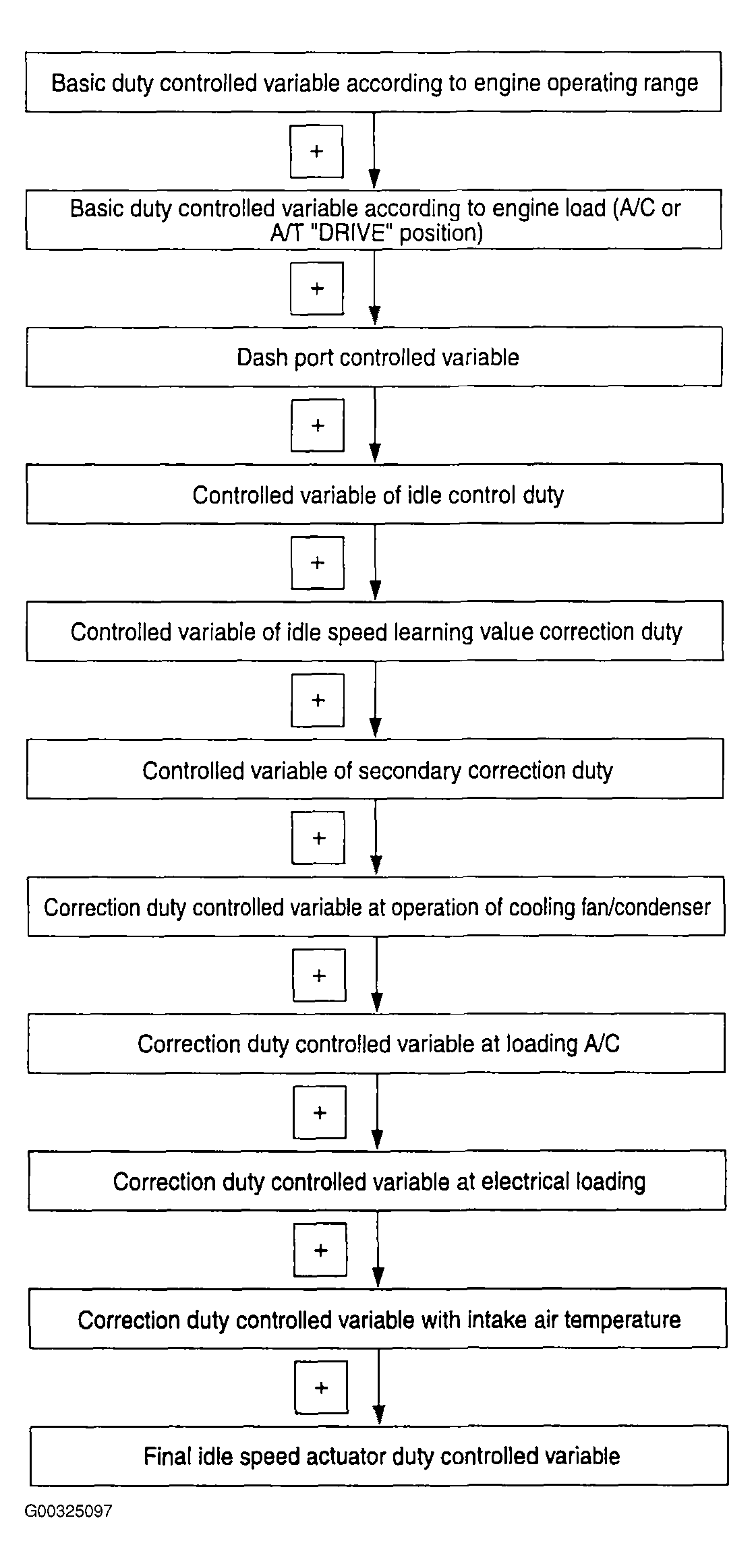

Fig 1: Illustrating Idle Speed Control Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
