Harness Inspection Procedures

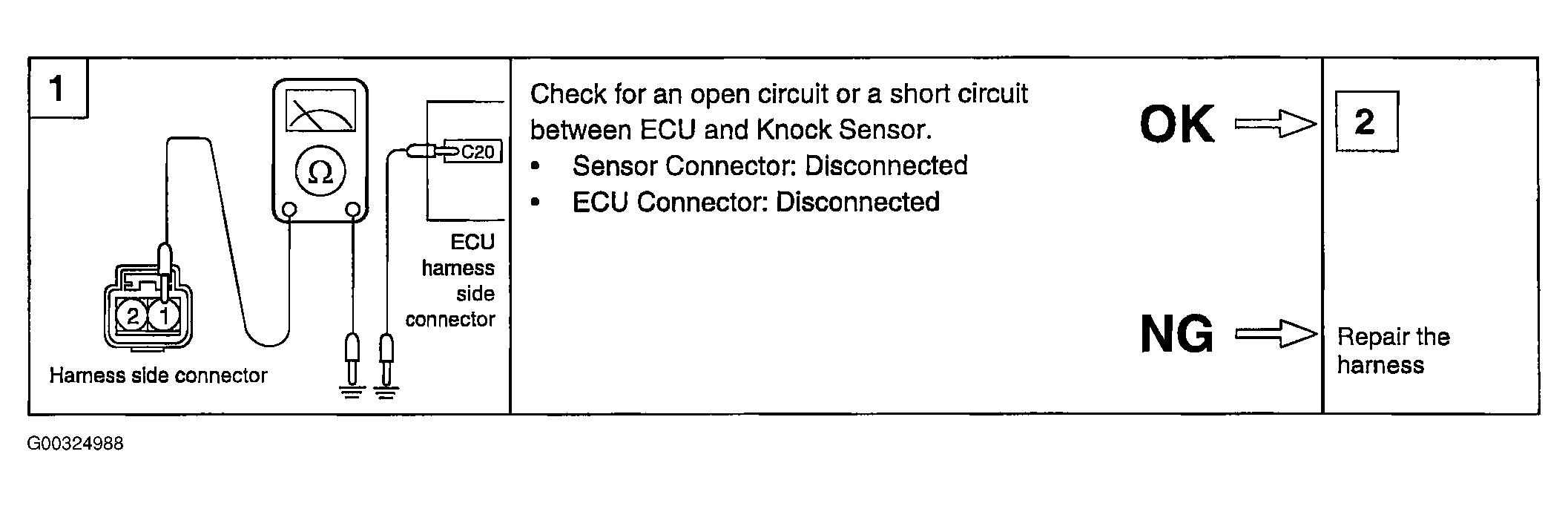

Fig 1: Illustrating Knock Sensor Harness Inspection Procedure (1 Of 2)
G00324988Courtesy of KIA MOTORS AMERICA, INC.

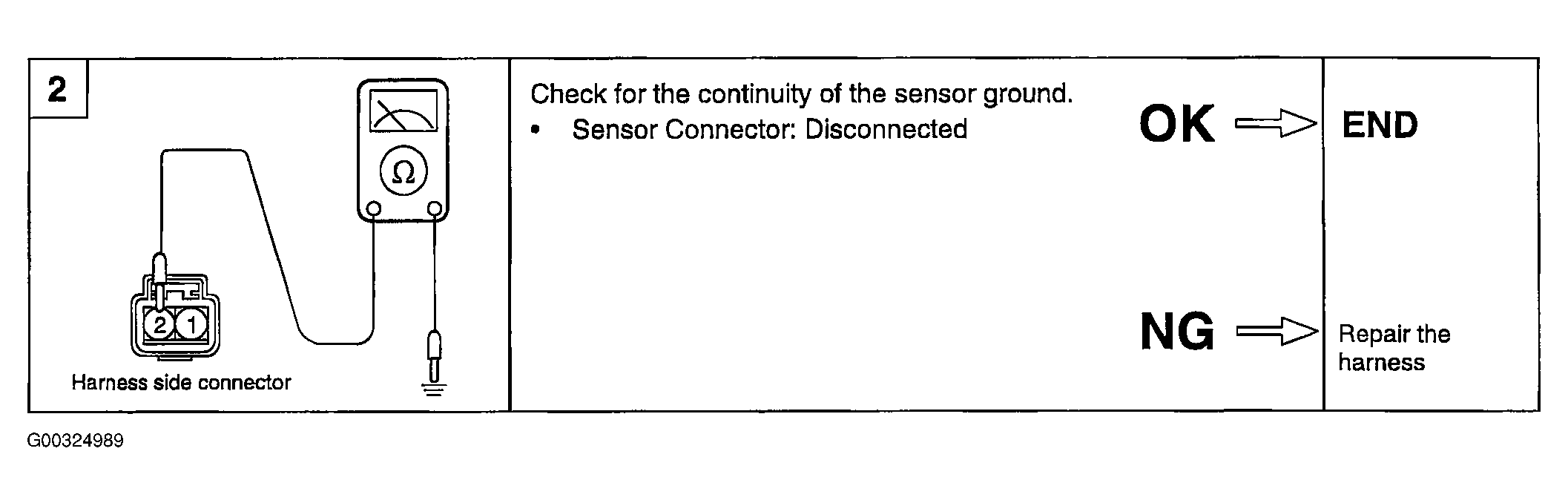

Fig 2: Illustrating Knock Sensor Harness Inspection Procedure (1 Of 2)
G00324989Courtesy of KIA MOTORS AMERICA, INC.
