Troubleshooting Procedures: Notes

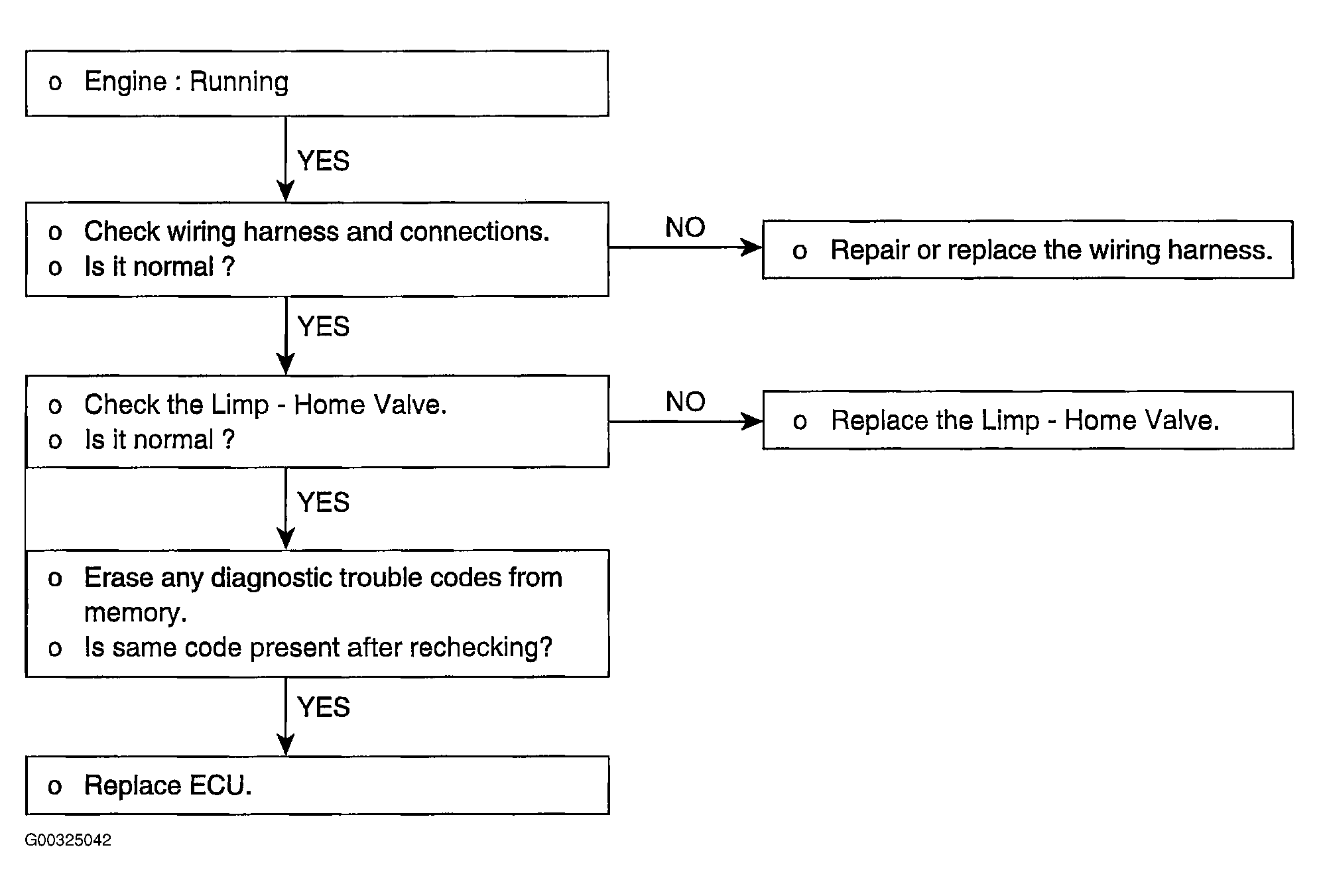

Fig 1: Illustrating Limp-Home Trouble Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
