Location Of MPI Components

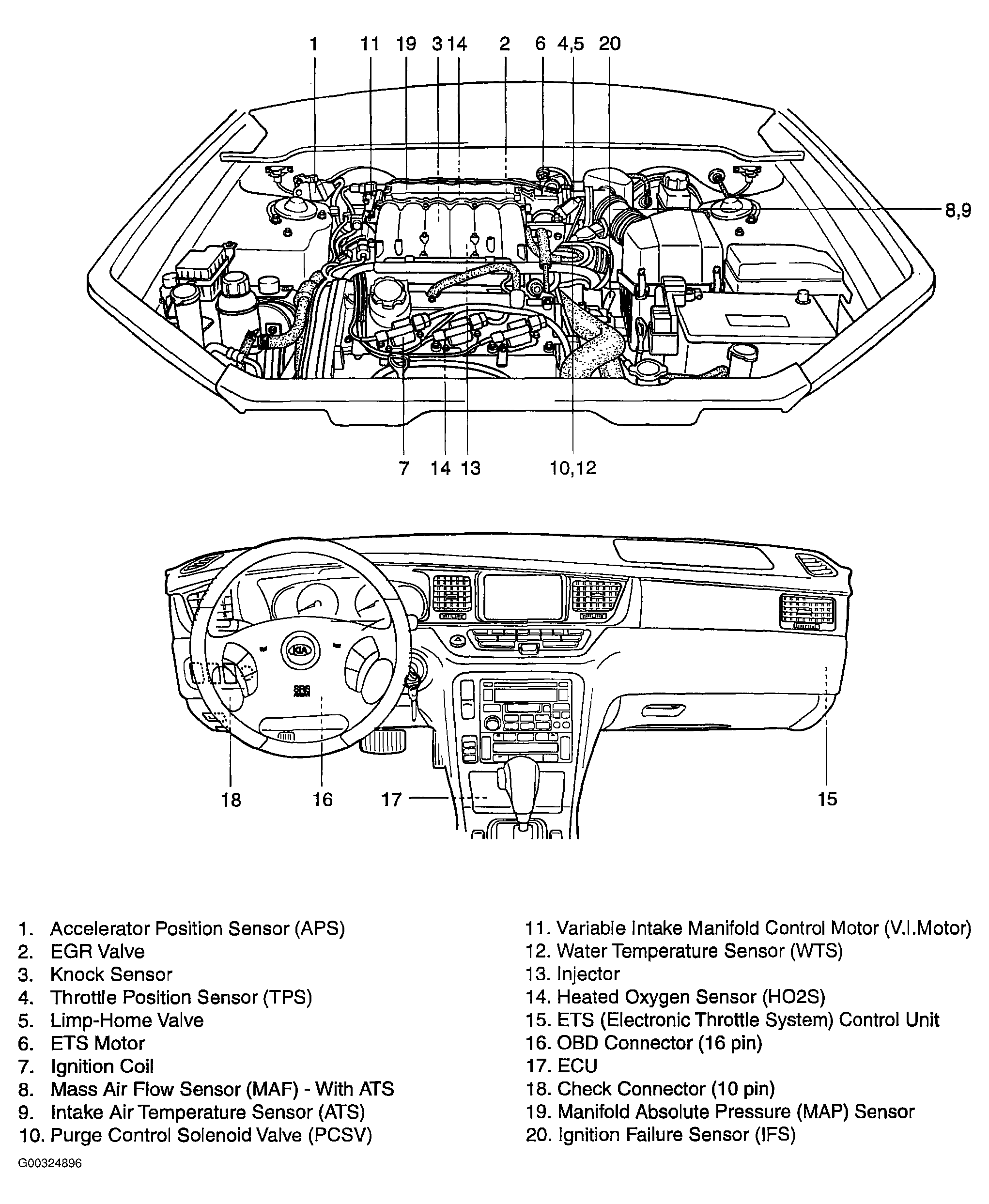

Fig 1: Identifying MPI Component Locations
G00324896Courtesy of KIA MOTORS AMERICA, INC.

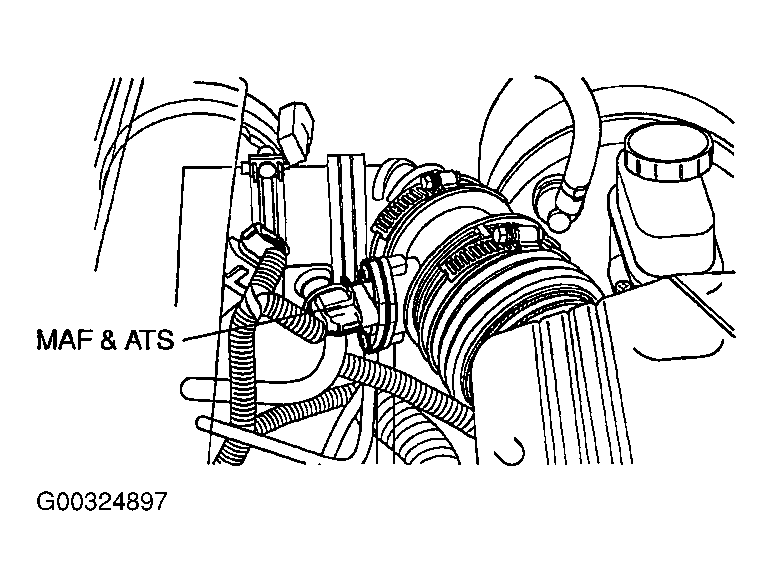

Fig 2: Locating Mass Air Flow (MAF) Sensor & Intake Air Temperature Sensor (IATS)
G00324897Courtesy of KIA MOTORS AMERICA, INC.

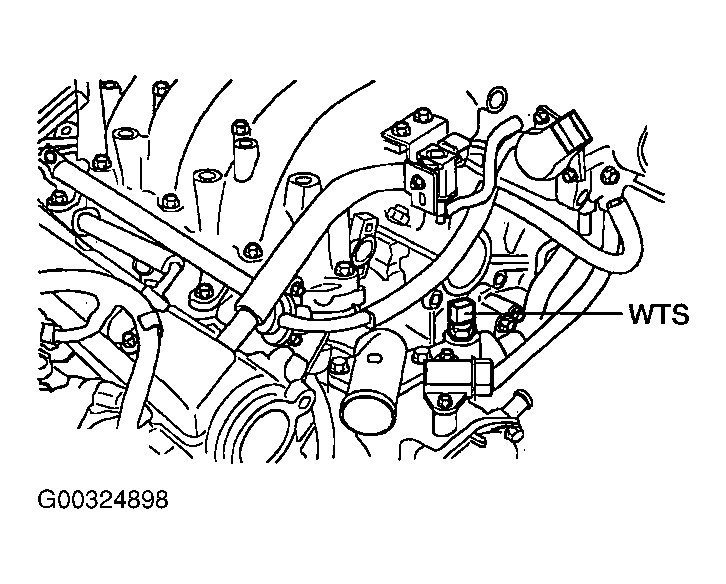

Fig 3: Locating Water Temperature Sensor (WTS)
G00324898Courtesy of KIA MOTORS AMERICA, INC.

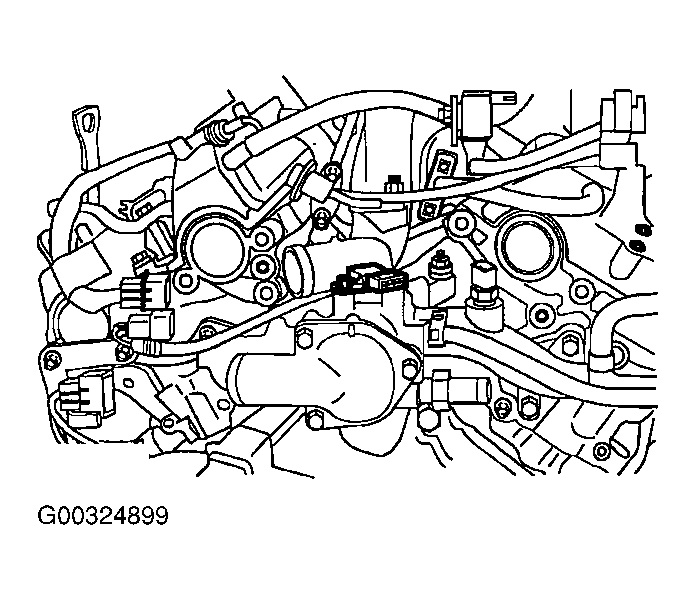

Fig 4: Locating Ignition Failure Sensor (IFS)
G00324899Courtesy of KIA MOTORS AMERICA, INC.

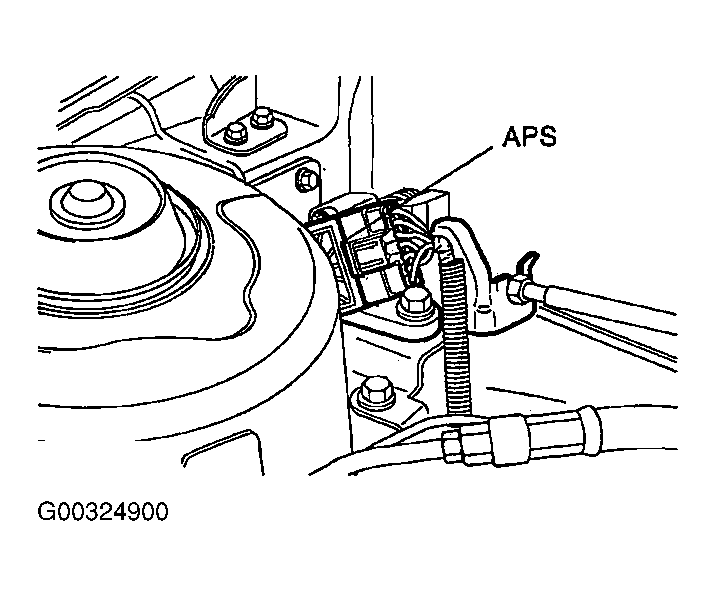

Fig 5: Locating Accelerator Position Sensor (APS)
G00324900Courtesy of KIA MOTORS AMERICA, INC.

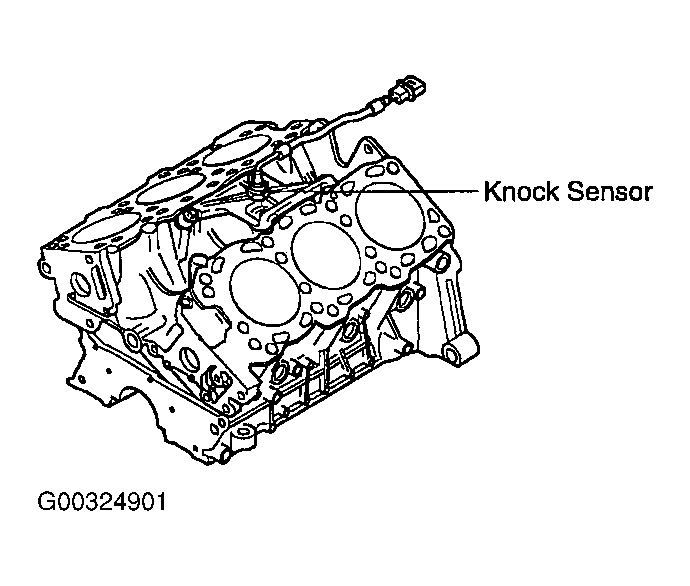

Fig 6: Locating Knock Sensor
G00324901Courtesy of KIA MOTORS AMERICA, INC.

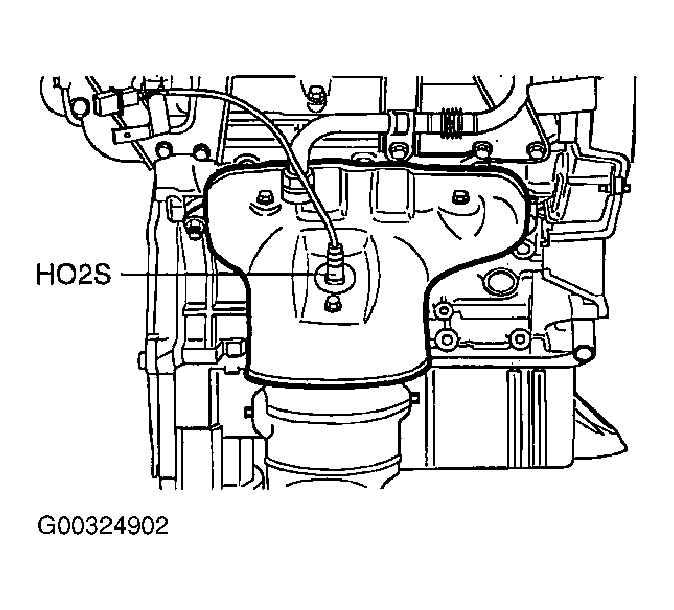

Fig 7: Locating Heated Oxygen Sensor (HO2S)
G00324902Courtesy of KIA MOTORS AMERICA, INC.

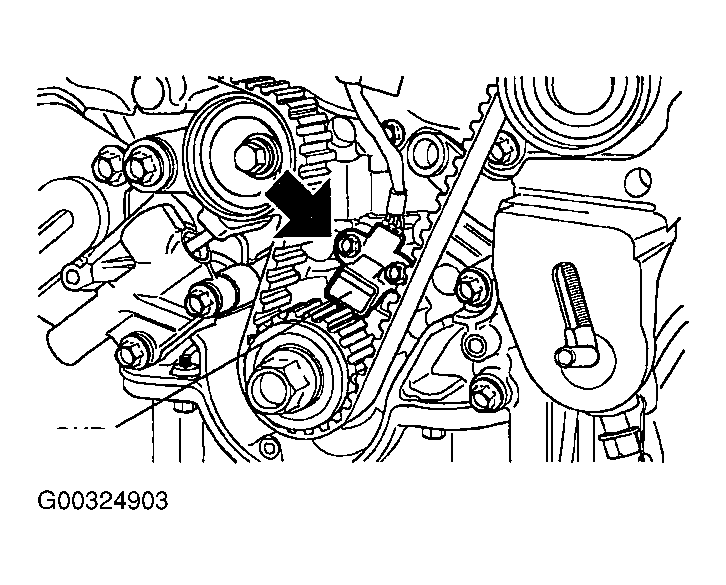

Fig 8: Locating Crankshaft Position (CKP) Sensor
G00324903Courtesy of KIA MOTORS AMERICA, INC.

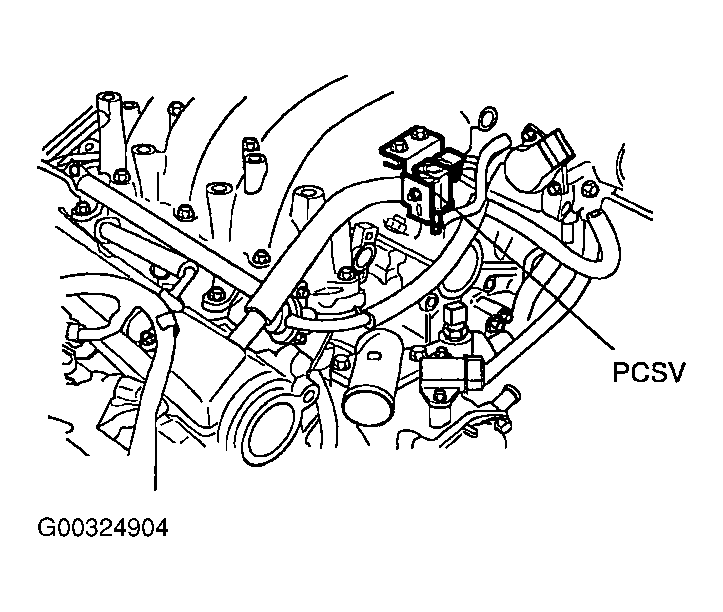

Fig 9: Locating Purge Control Solenoid Valve (PCSV)
G00324904Courtesy of KIA MOTORS AMERICA, INC.

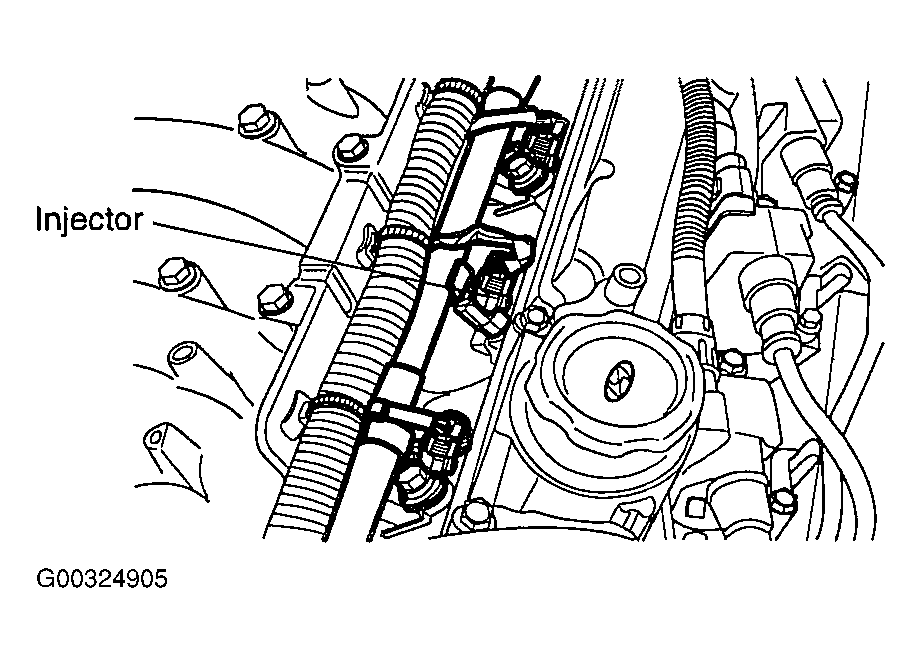

Fig 10: Locating Fuel Injectors
G00324905Courtesy of KIA MOTORS AMERICA, INC.

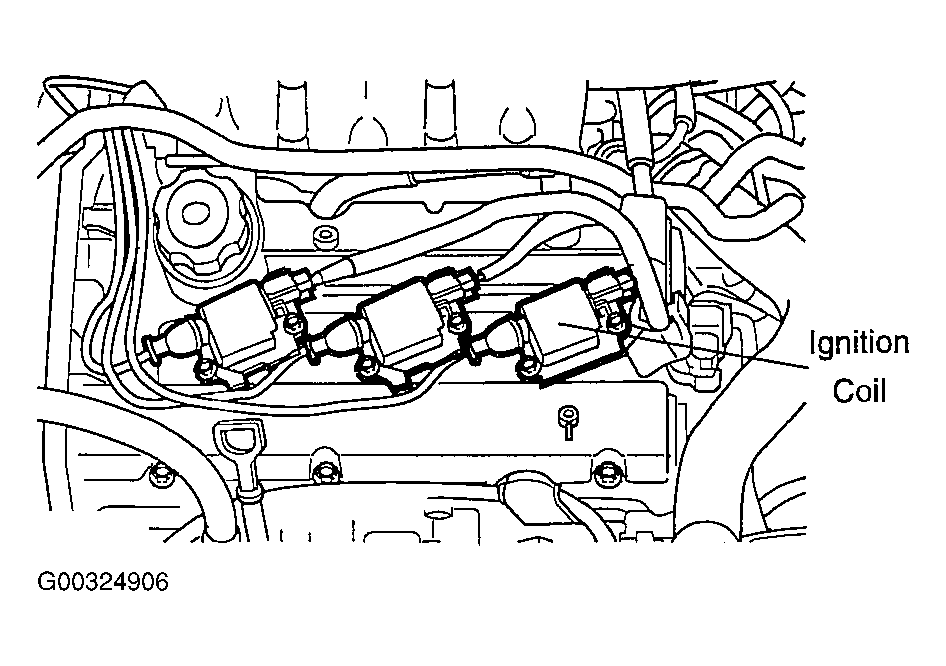

Fig 11: Locating Ignition Coils
G00324906Courtesy of KIA MOTORS AMERICA, INC.

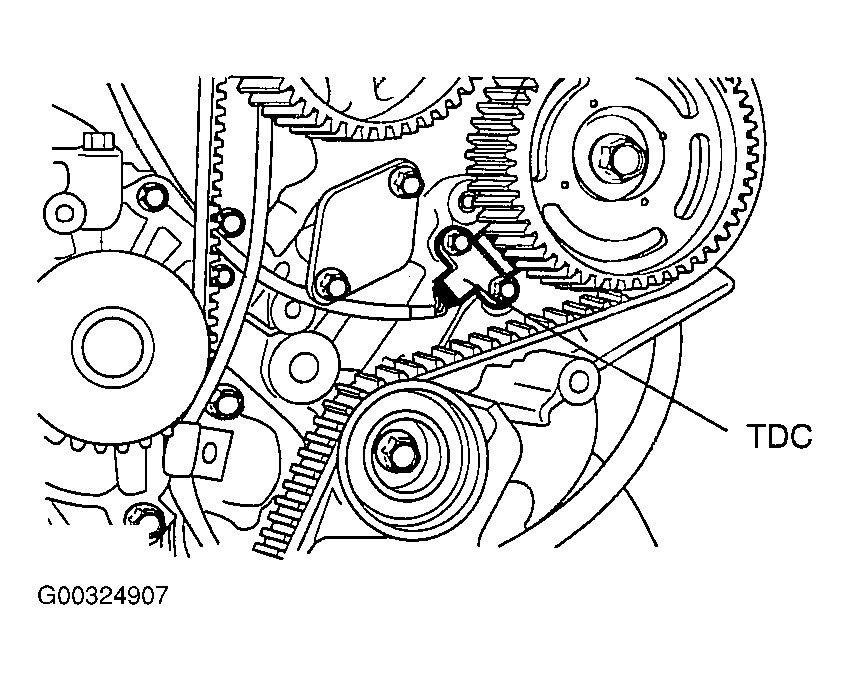

Fig 12: Locating Camshaft Position (TDC) Sensor
G00324907Courtesy of KIA MOTORS AMERICA, INC.

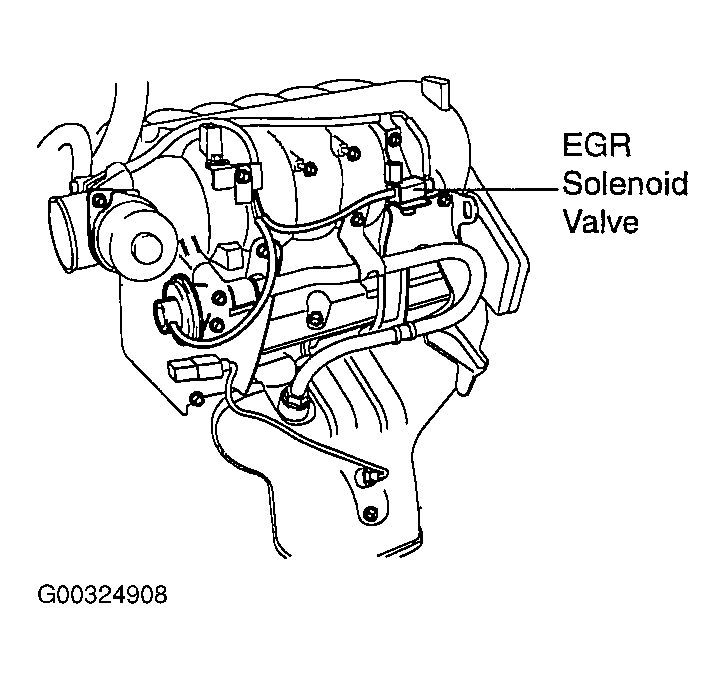

Fig 13: Locating EGR Solenoid Valve
G00324908Courtesy of KIA MOTORS AMERICA, INC.

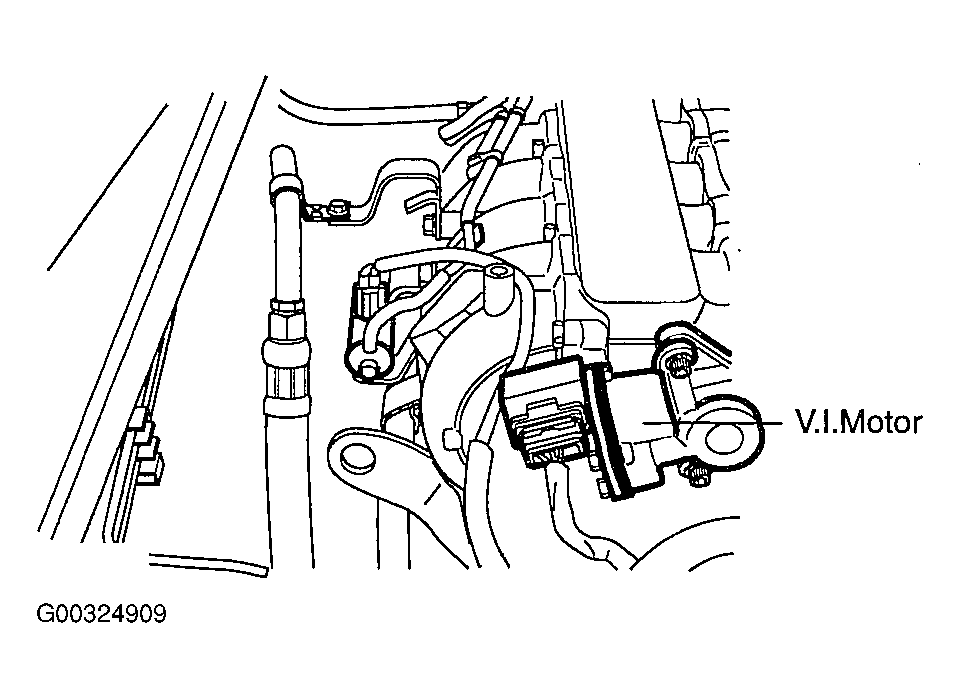

Fig 14: Locating Variable Intake Manifold Control Motor (V.I.Motor)
G00324909Courtesy of KIA MOTORS AMERICA, INC.

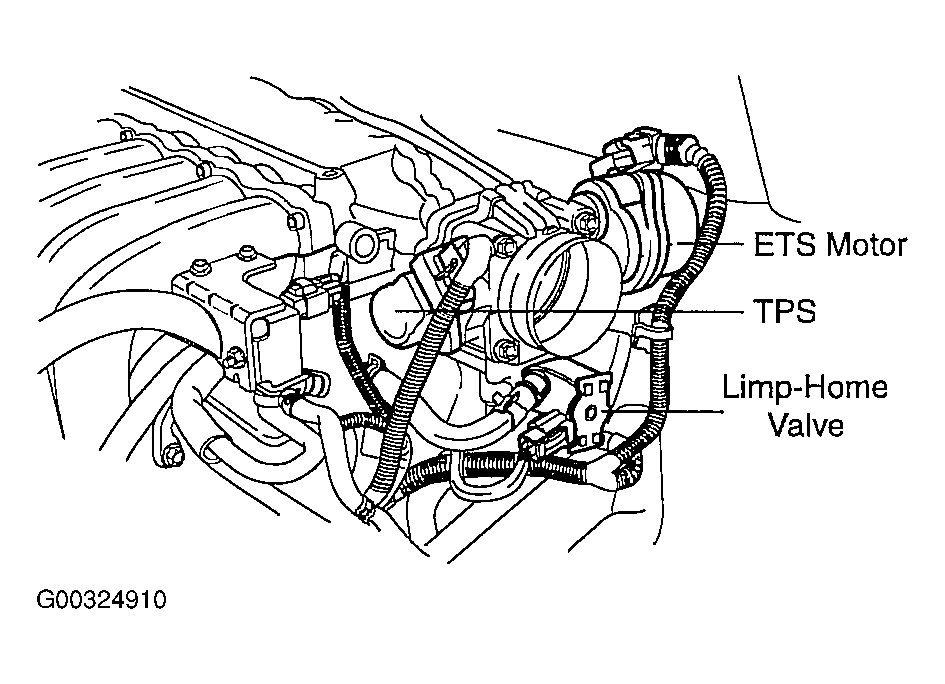

Fig 15: Locating Limp-Home Valve, ETS Motor & TPS
G00324910Courtesy of KIA MOTORS AMERICA, INC.

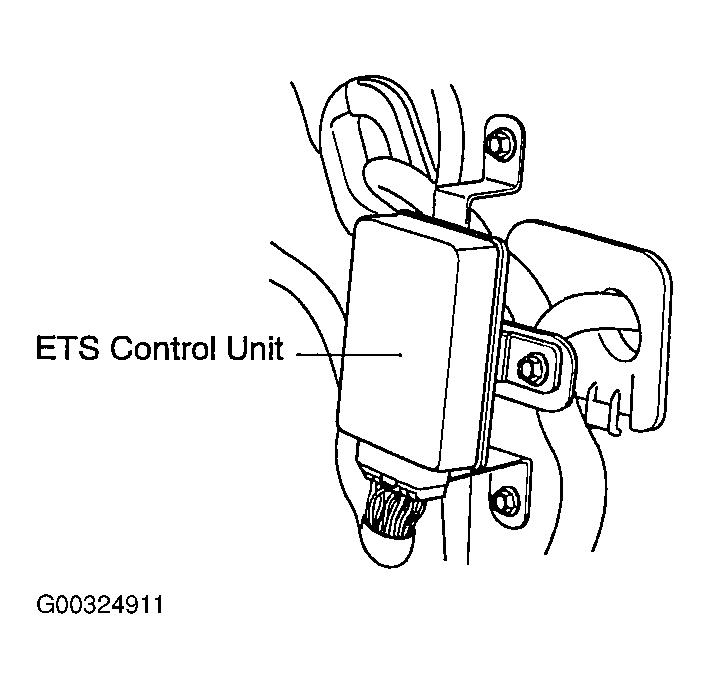

Fig 16: Locating ETS (Electronic Throttle System) Control Unit
G00324911Courtesy of KIA MOTORS AMERICA, INC.

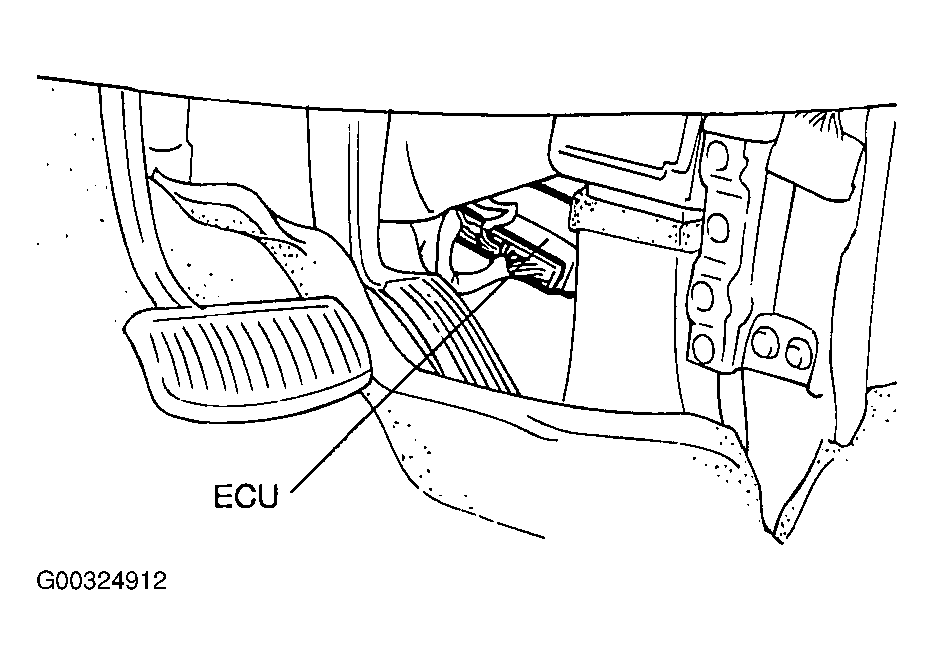

Fig 17: Locating ECU
G00324912Courtesy of KIA MOTORS AMERICA, INC.
