Sensor Inspection: Notes
- Connect the voltmeter between 1 and 4 of MAP sensor connector.
Terminal 4: MAP sensor ground
Terminal 1: MAP sensor output

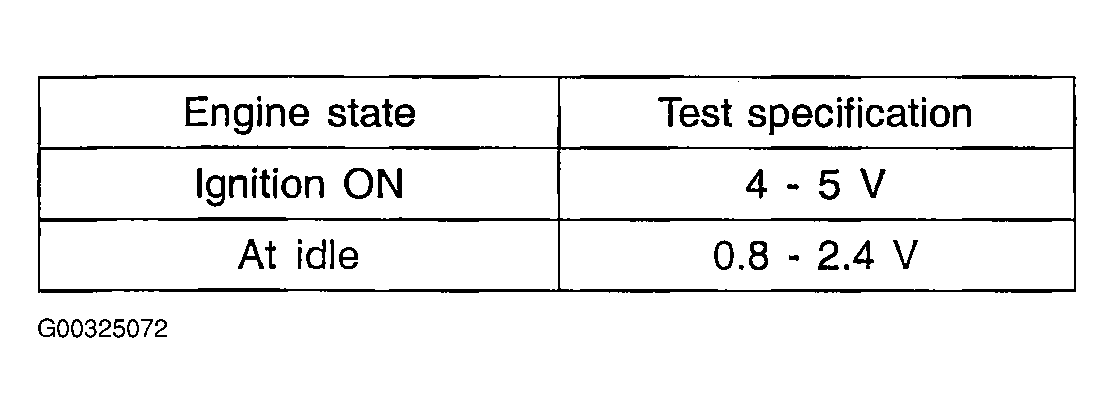

- Measure the voltage between terminals.
- If the voltage deviates from the standard value, replace the MAP sensor assembly.
