Testing With Hi-Scan (Pro)

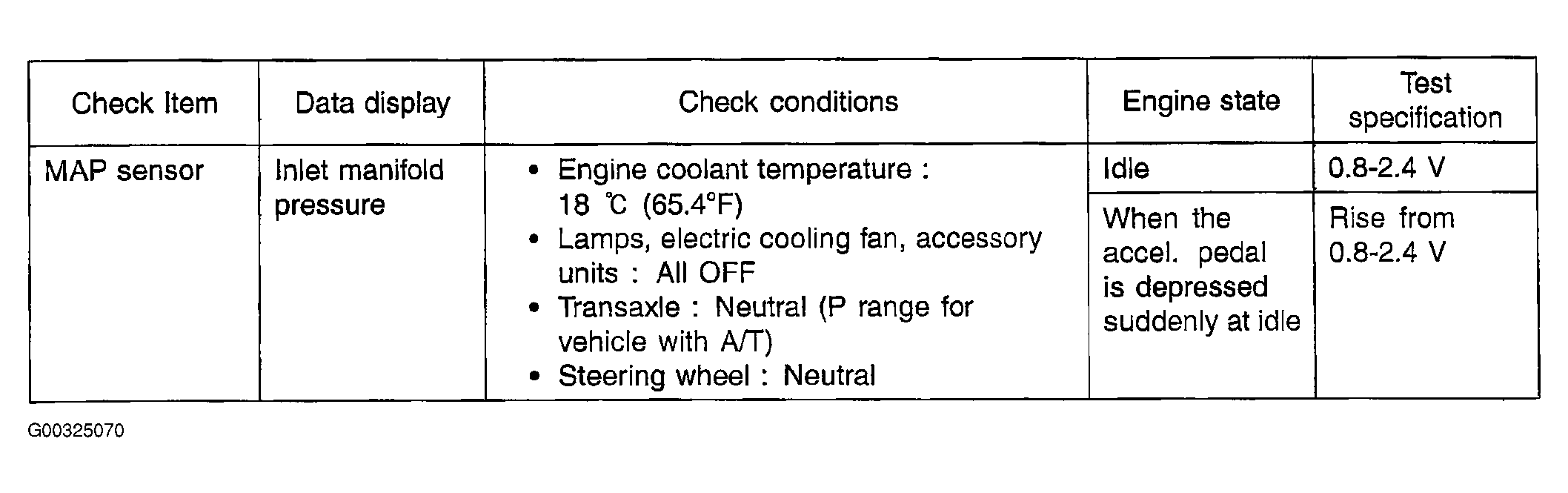

Fig 1: Testing MAP Sensor Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
