Troubleshooting Procedures: Notes

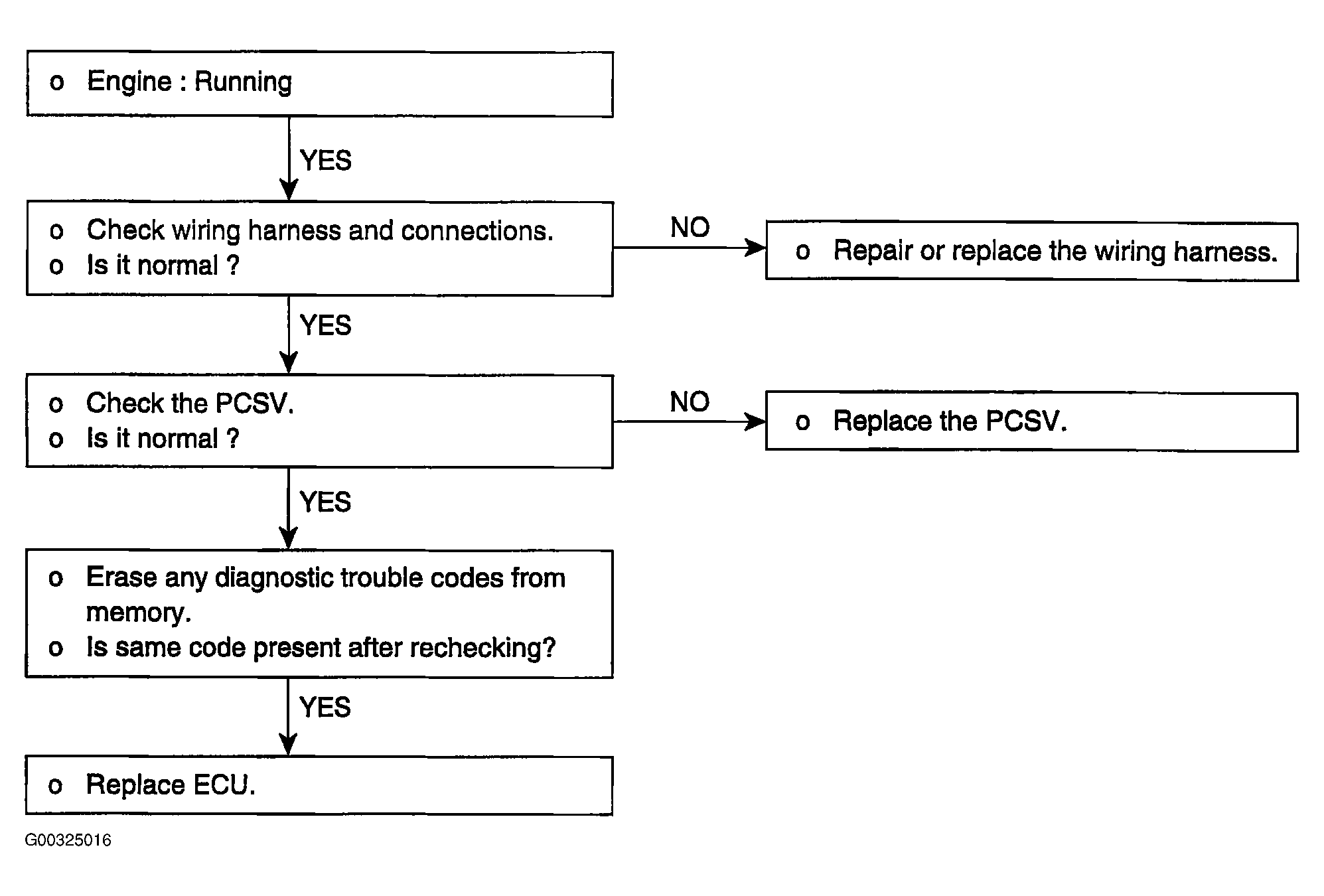

Fig 1: Troubleshooting PCSV Procedures Diagram

G00325016

Courtesy of KIA MOTORS AMERICA, INC.
