Harness Inspection Procedures (VSS)

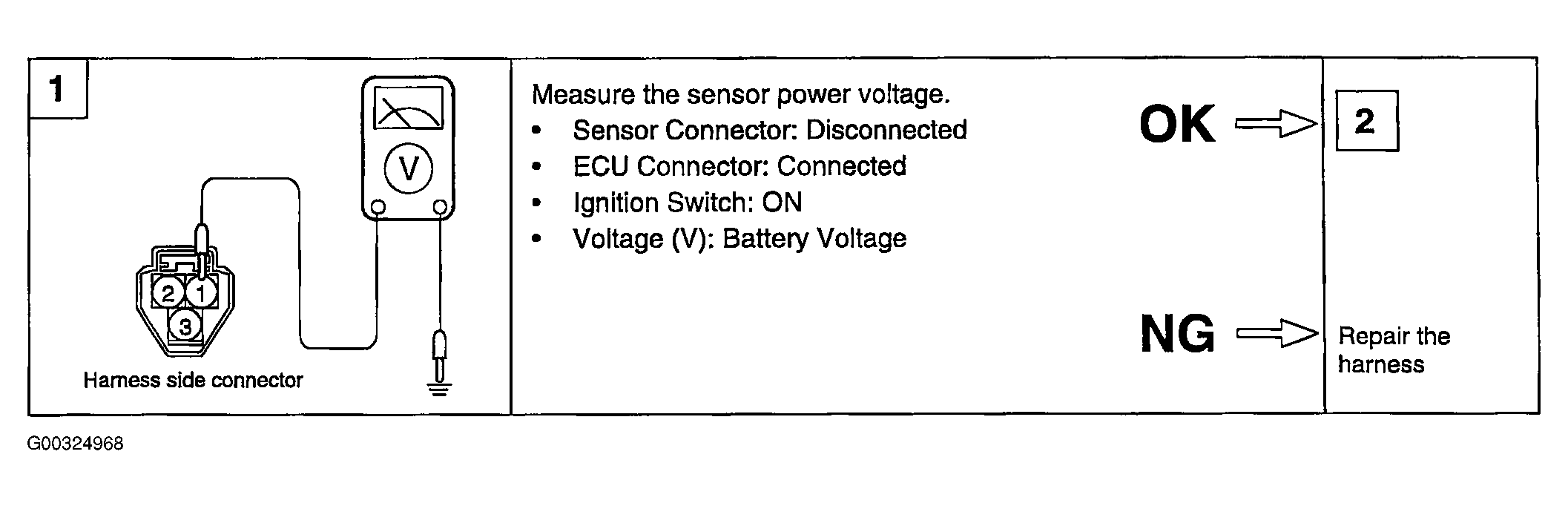

Fig 1: Illustrating VSS Harness Inspection Procedure (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

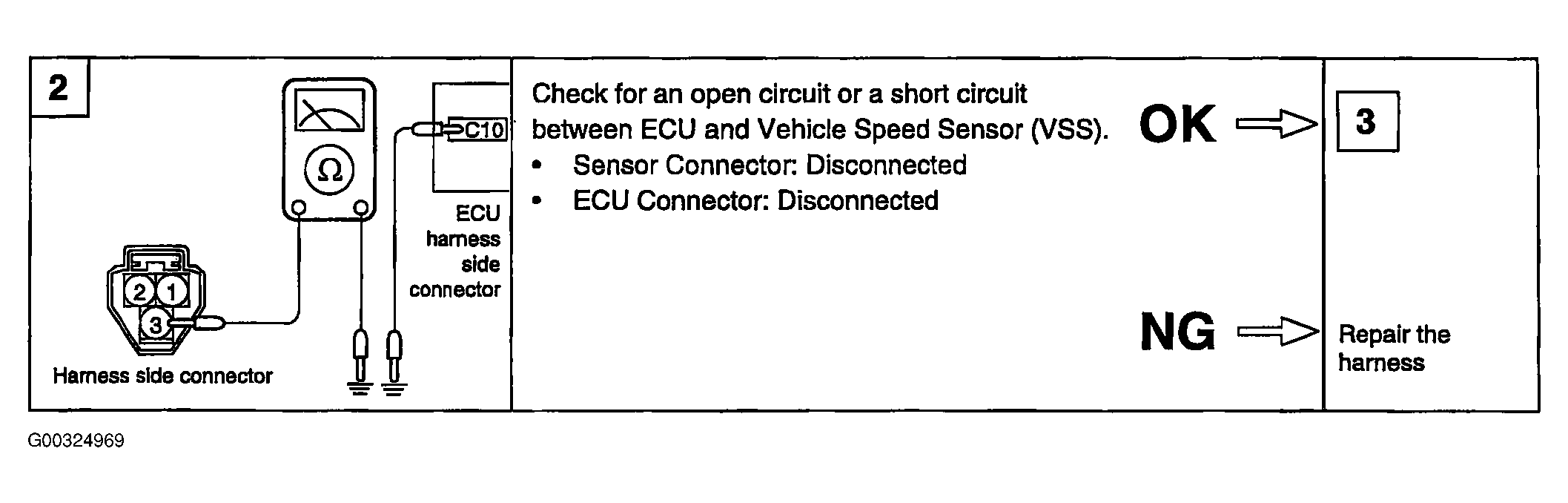

Fig 2: Illustrating VSS Harness Inspection Procedure (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Fig 3: Illustrating VSS Harness Inspection Procedure (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
