Circuit Diagram And Output Feature

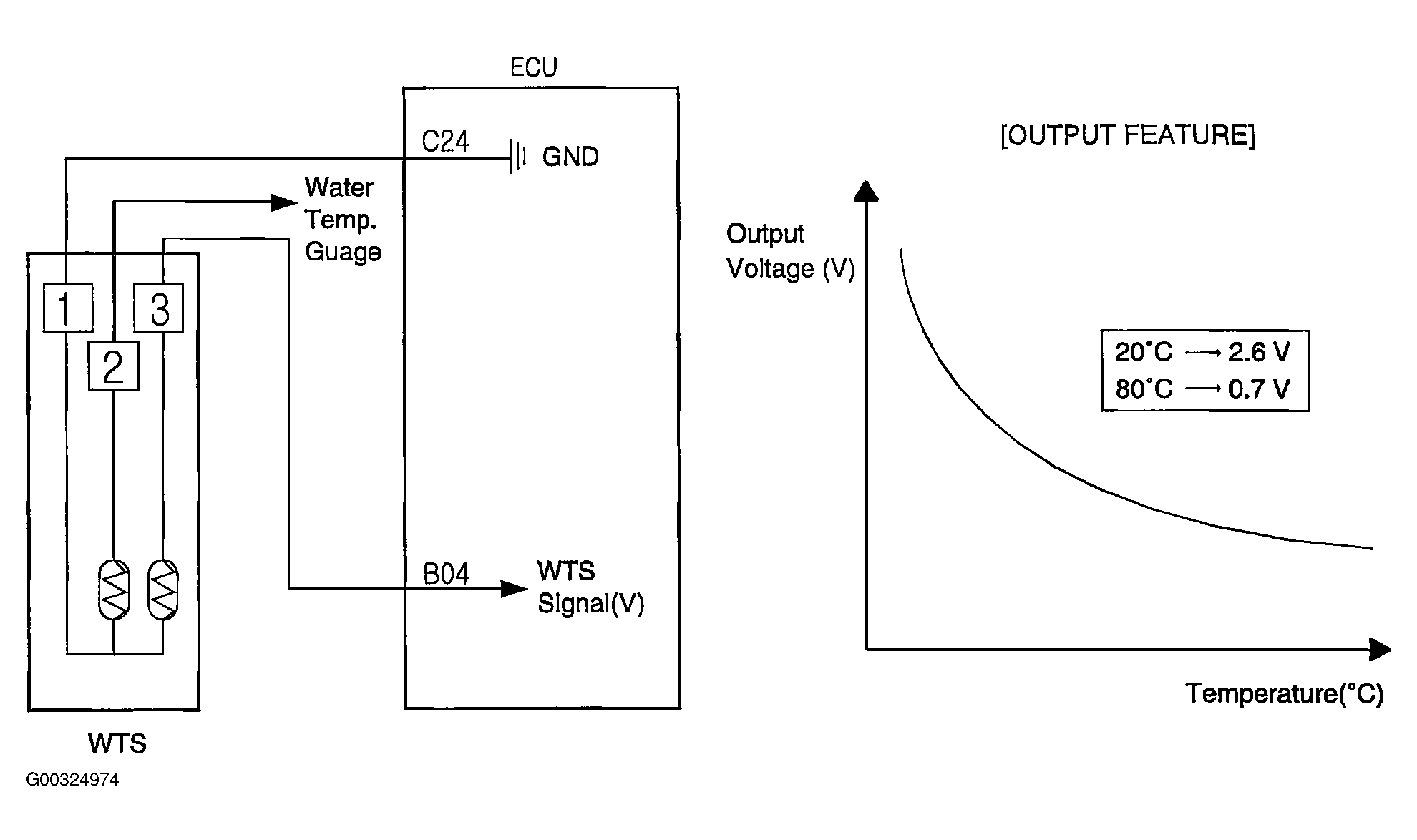

Fig 1: Illustrating WTS Circuit Diagram And Output Feature
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
