Using Volt Meter

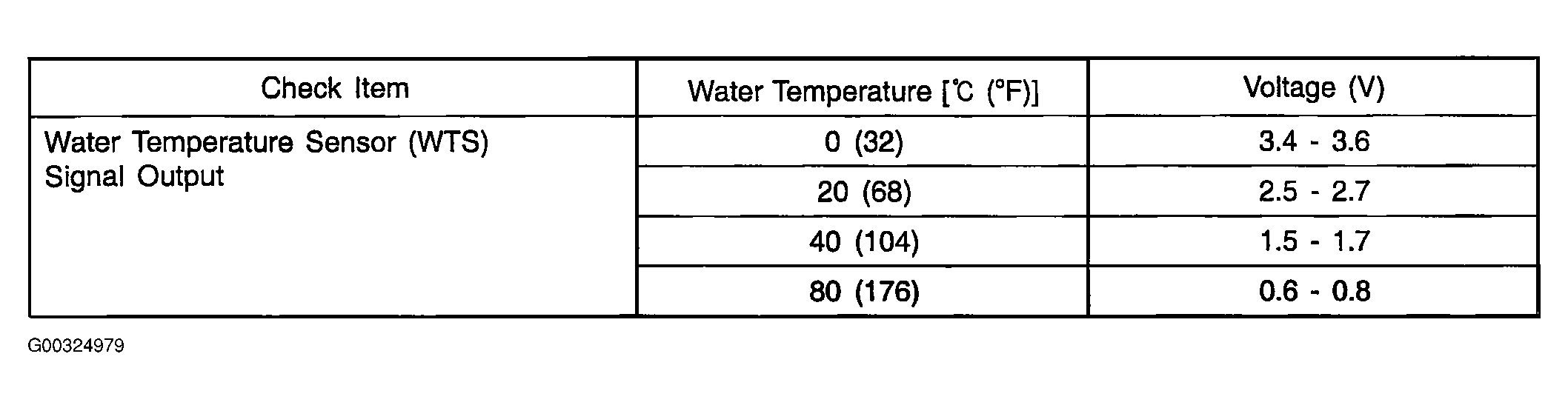

Fig 1: Testing WTS Voltage Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
