Fuel Line: Components

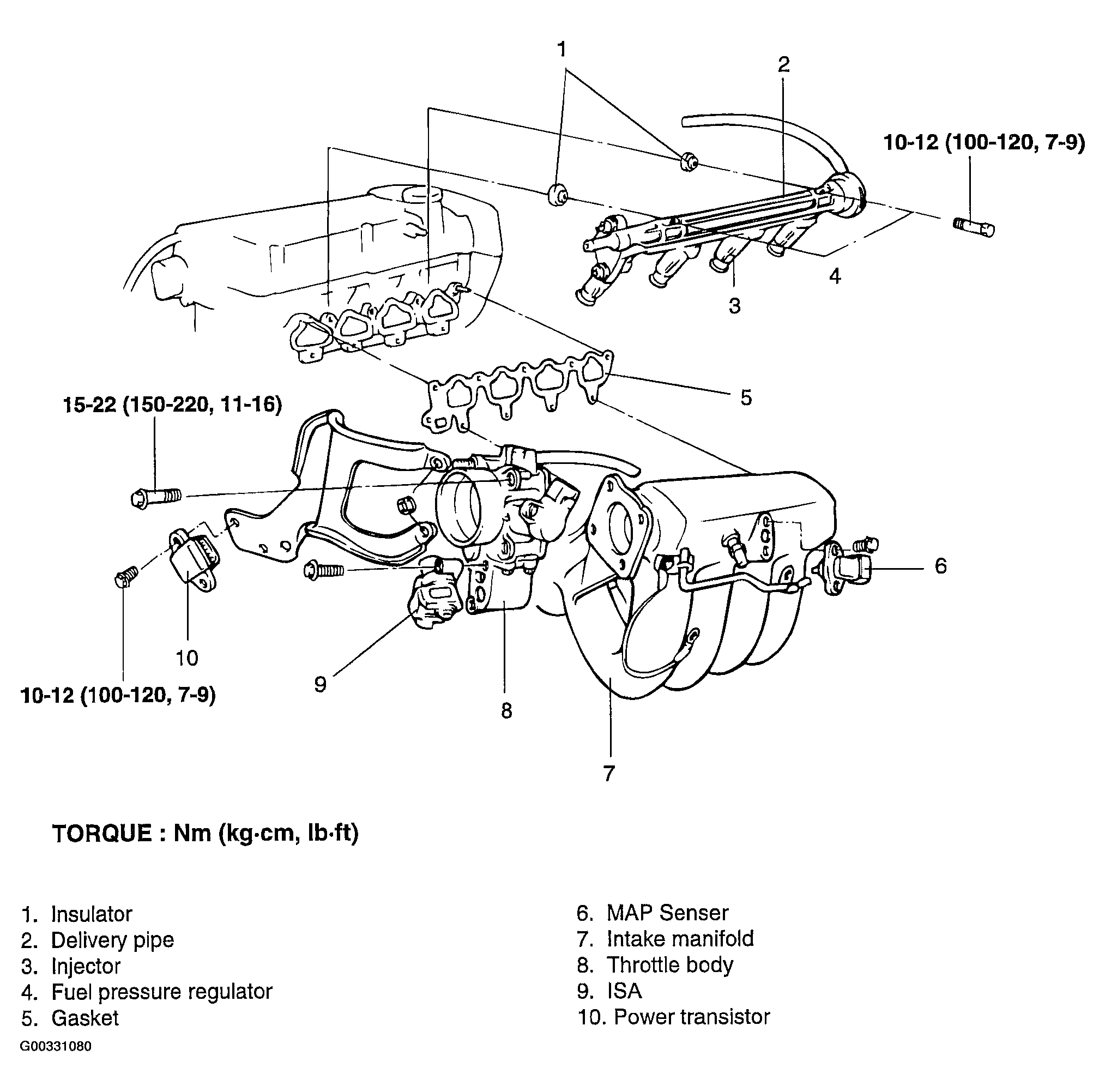

Fig 1: Removing & Installing Fuel Line & Injectors
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
