Fuel Line: Components

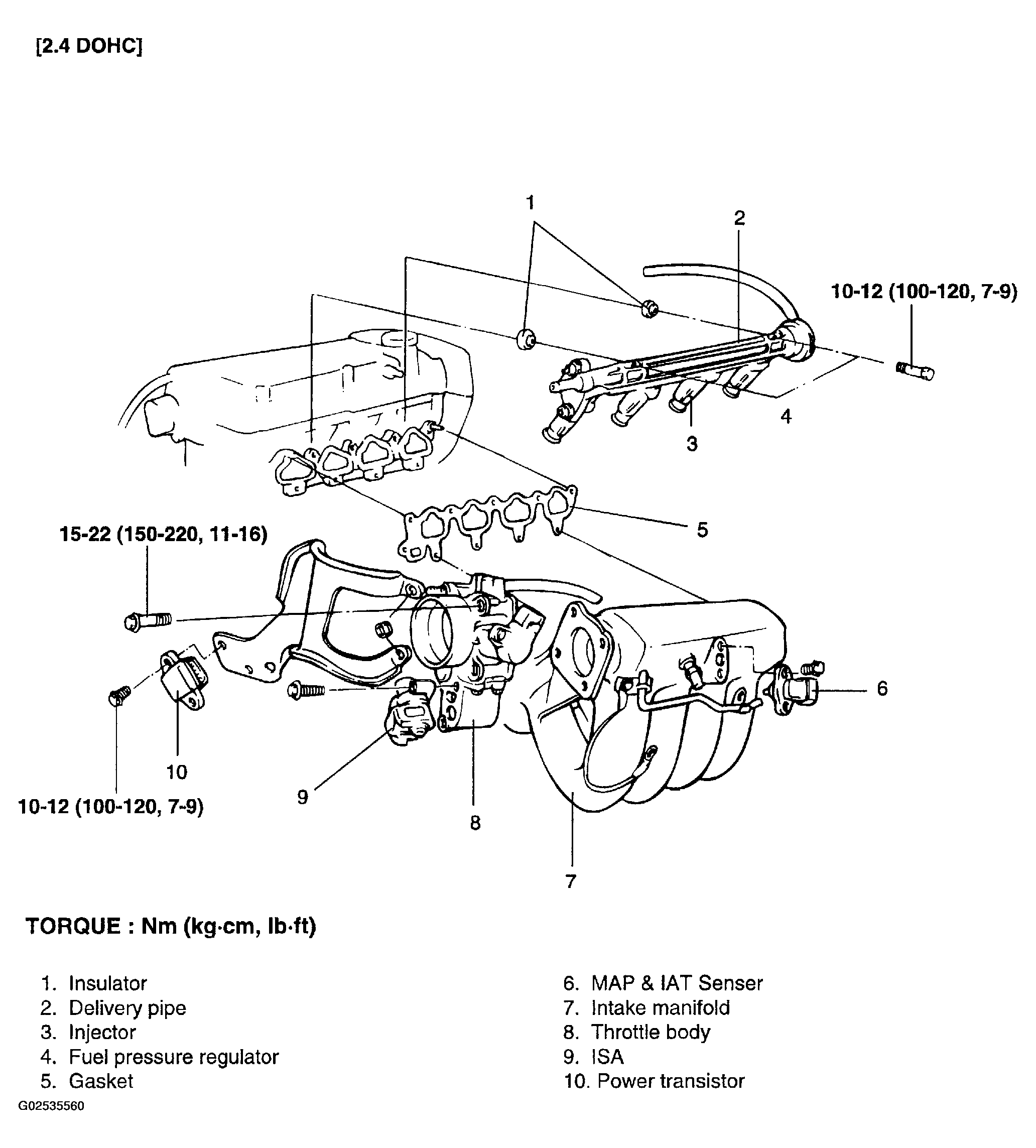

Fig 1: Illustrating Intake Manifold 2.4L
G02535560Courtesy of KIA MOTORS AMERICA, INC.

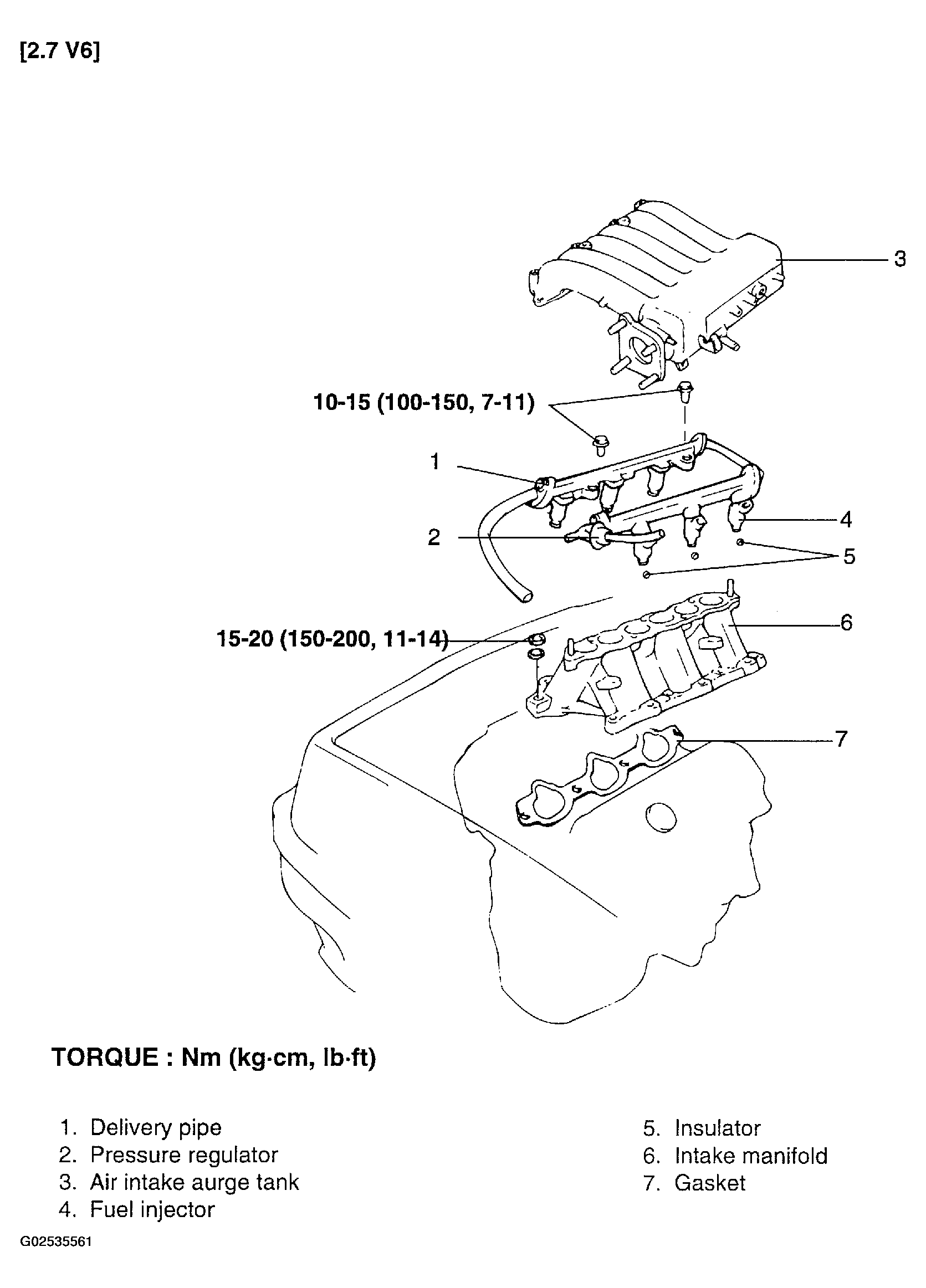

Fig 2: Illustrating Intake Manifold 2.7L
G02535561Courtesy of KIA MOTORS AMERICA, INC.
