Fuel Line: Installation

Install a new grommet and O-ring to the injector.
Apply a coating of solvent, spindle oil or gasoline to the injector O-ring.

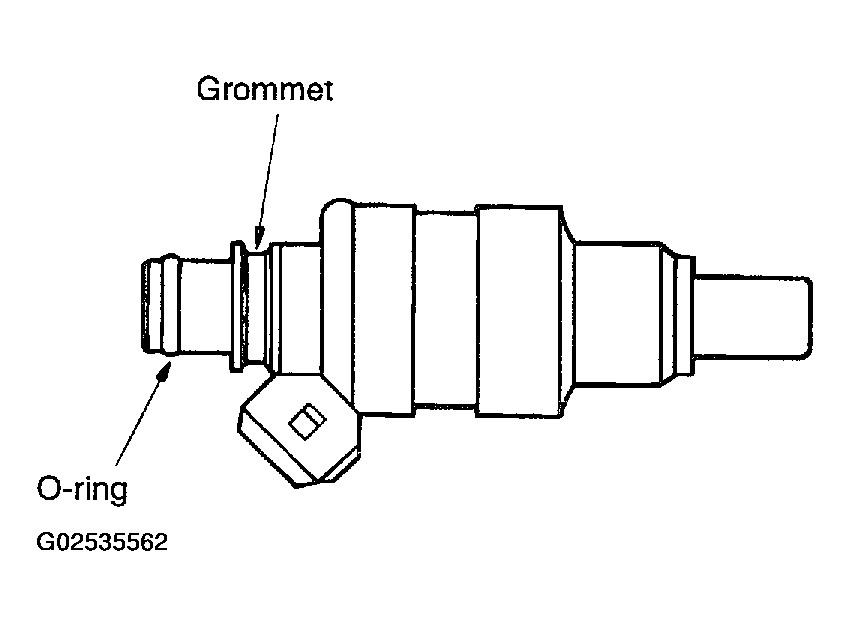

Fig 1: Applying Coating To Injector O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
While turning the injector to the left and right, install it on to the delivery pipe.
Be sure the injector turns smoothly.
NOTE: If injector does not turn smoothly, the O-ring may be jammed. Remove the injector and reinsert it into the delivery pipe and recheck.

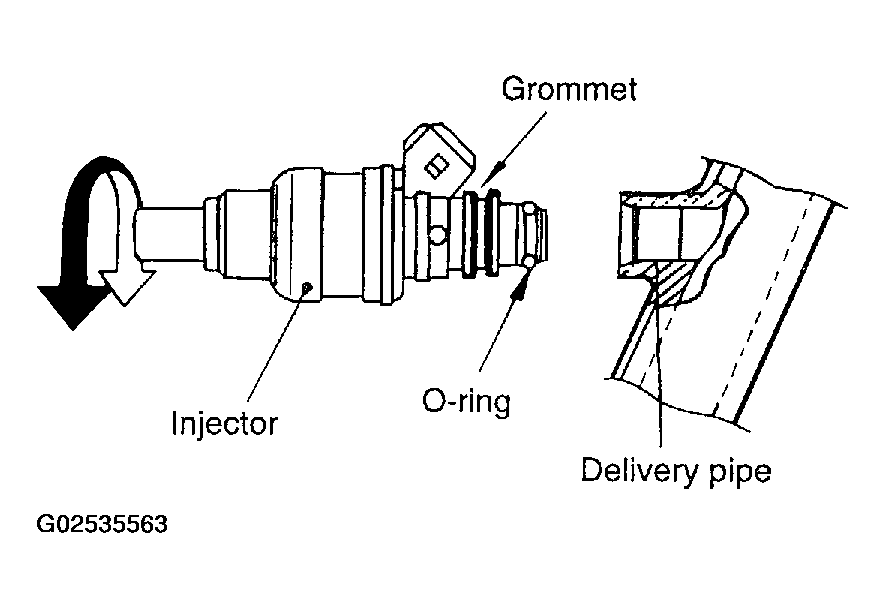

Fig 2: Inserting Injector Into Delivery Pipe
Courtesy of KIA MOTORS AMERICA, INC.
