Fuel Tank: Installation

Connect the leveling hose to the tank and approximately 40 mm (1.6 in.) at the filler neck.

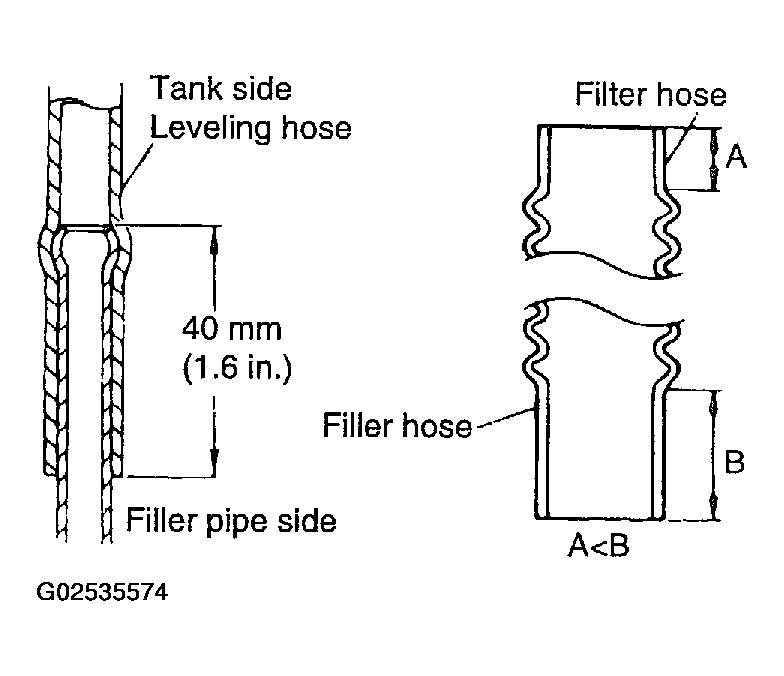

Fig 1: Connecting The Leveling Hose To The Tank
Courtesy of KIA MOTORS AMERICA, INC.
When connecting the filler hose, connect the end with the shorter straight pipe to the tank side.
Confirm that the pad is fully bonded to the fuel tank. Install the fuel tank by tightening the self-locking nuts to the tank bands until the rear end of the tank band contacts the body.

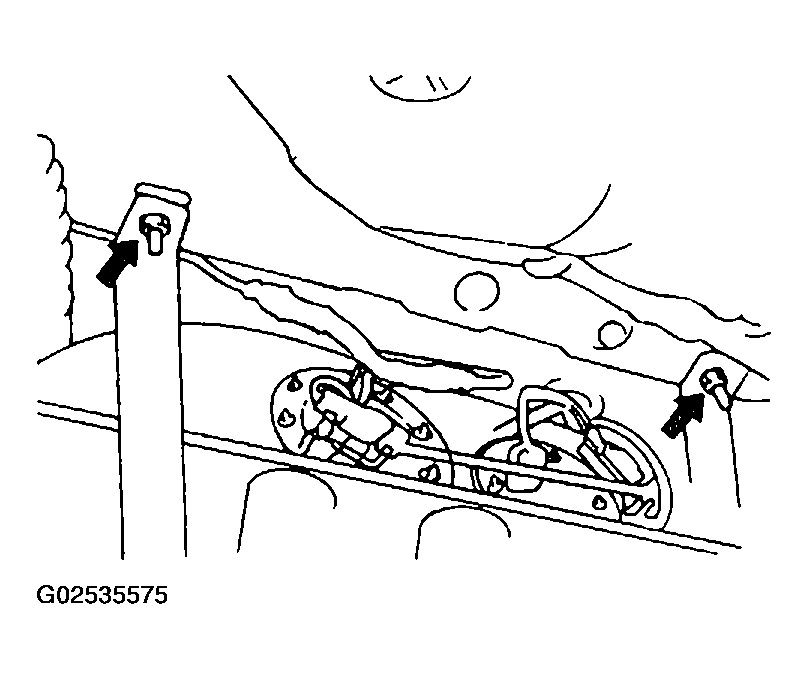

Fig 2: Installing The Fuel Tank
Courtesy of KIA MOTORS AMERICA, INC.
Connect the vapor hose and return hose. Attach the fuel hose to the line as shown in the illustration.

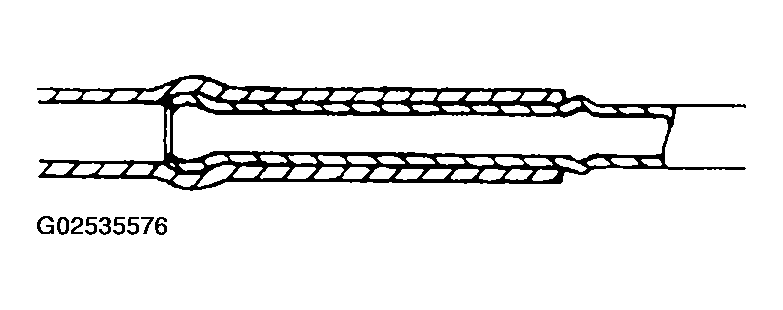

Fig 3: Connecting The Vapor And Return Hoses
Courtesy of KIA MOTORS AMERICA, INC.
To connect the high pressure hose to the fuel pump, temporarily tighten the flare nut by hand, and then tighten it to the specified torque. Be careful that the fuel hose does not twist.
Tightening torque

High pressure hose flare nut : 30~40 Nm (300~400 kg.cm, 22~29 lb-ft)

NOTE: When tightening the flare nut, be careful not to bend or twist the line to prevent damage to the fuel pump connection.

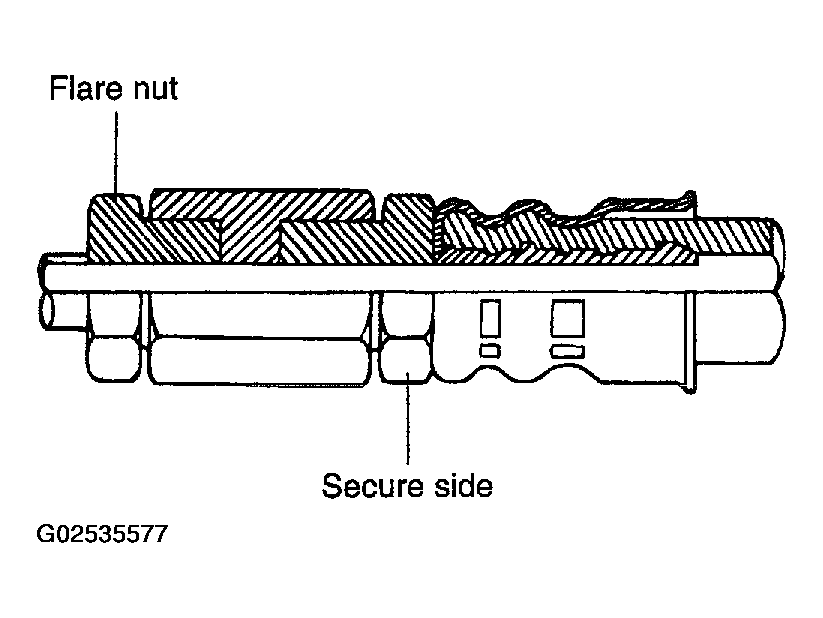

Fig 4: Tightening High Pressure Hose Flare Nut
Courtesy of KIA MOTORS AMERICA, INC.
Connect the electrical fuel pump and fuel sender connector.

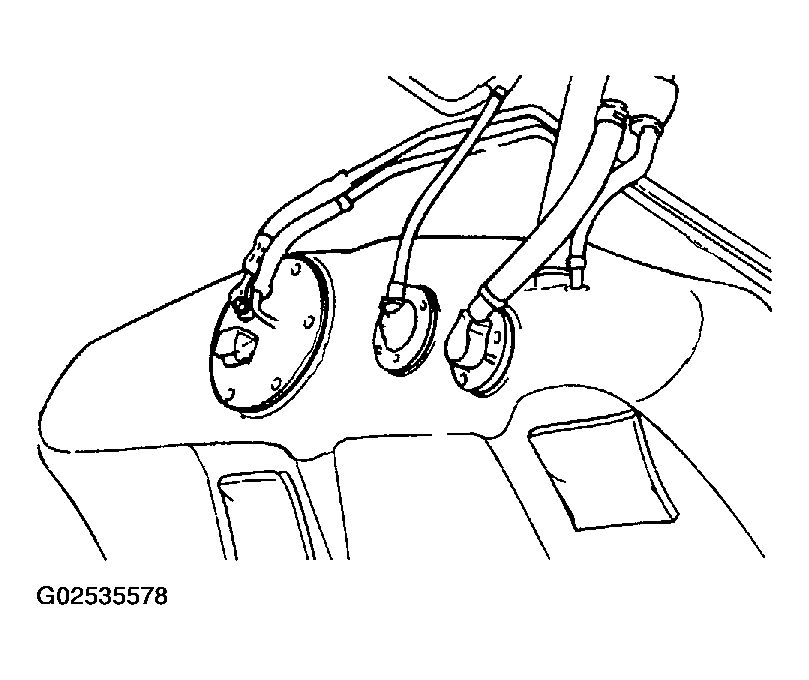

Fig 5: Connecting The Electrical Fuel Pump And Fuel Sender Connector
