Evaporative Emission Control System: Components

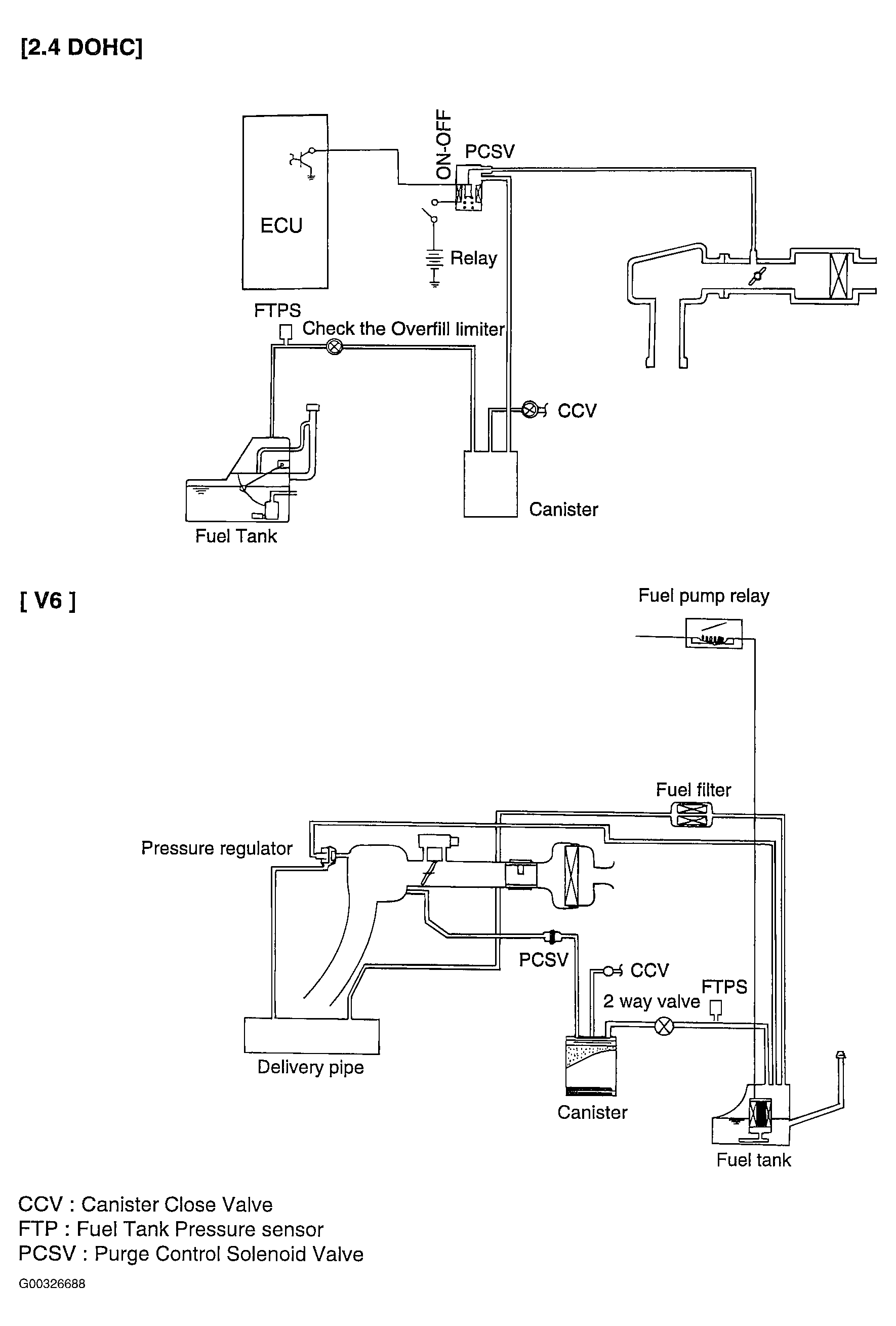

Fig 1: Identifying Evaporative Emission Control System Components
G00326688Courtesy of KIA MOTORS AMERICA, INC.
