Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

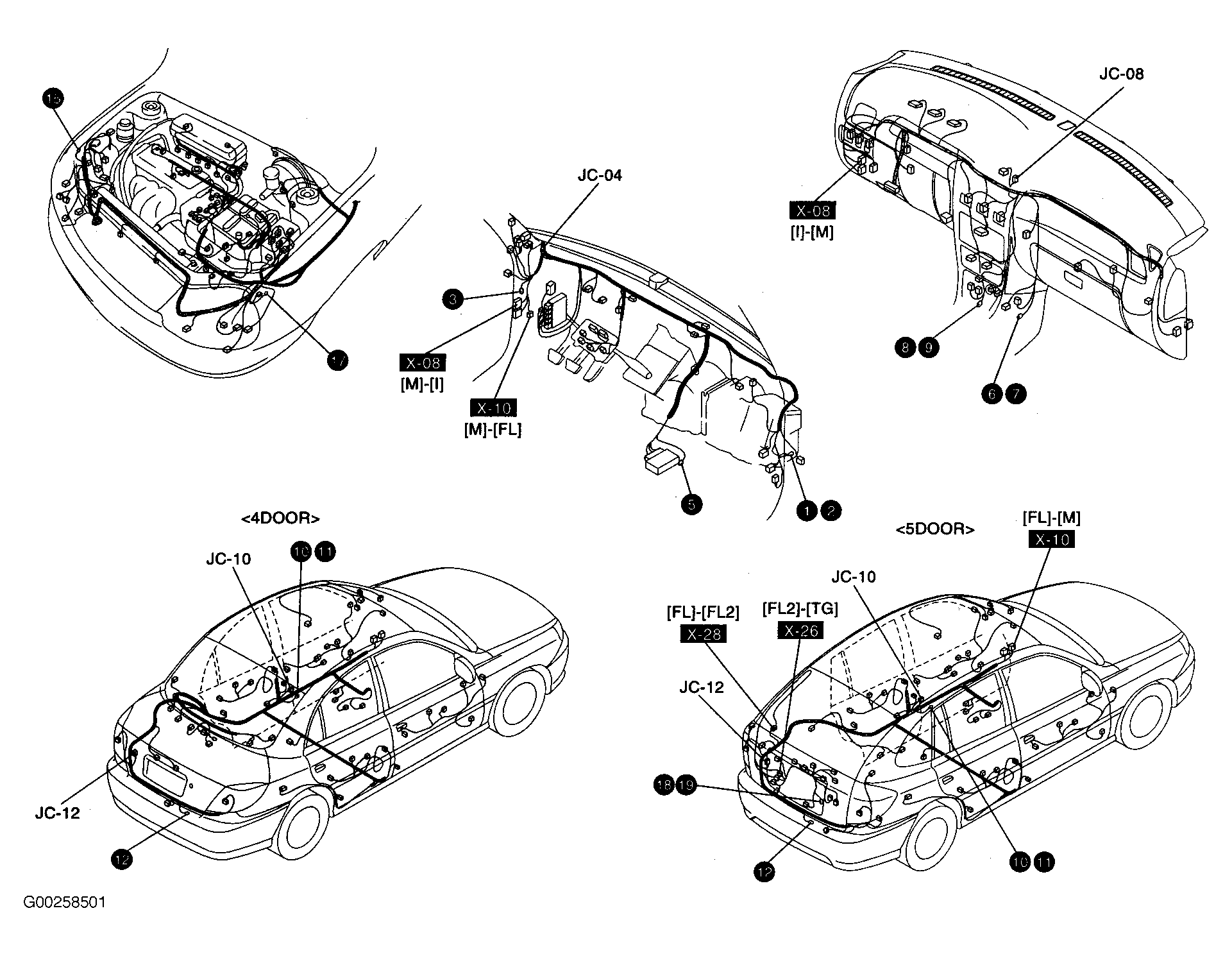

Fig 1: Ground Points

G00258501

Courtesy of KIA MOTORS AMERICA, INC.

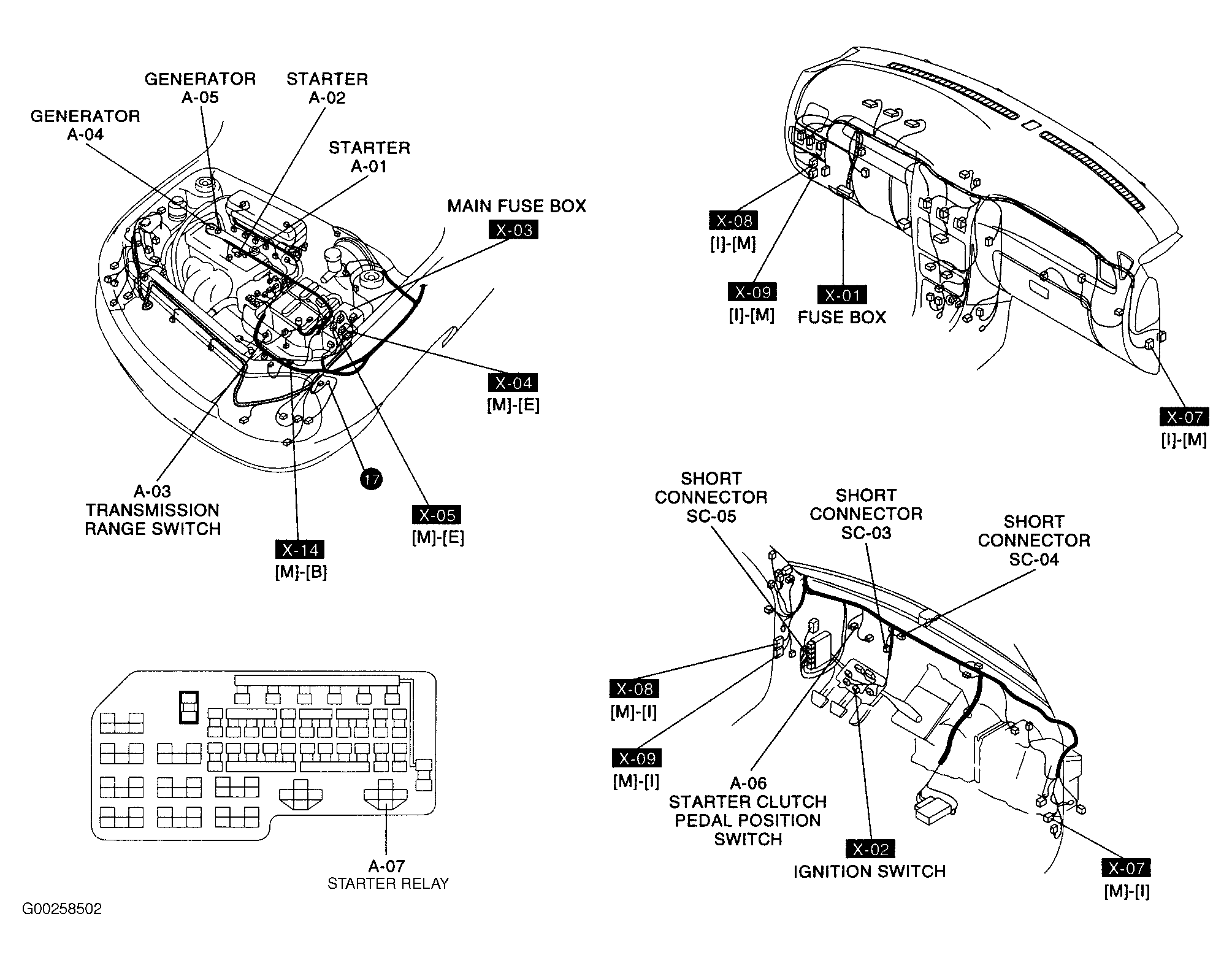

Fig 2: Starting & Charging System

G00258502

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Engine Control System

G00258503

Courtesy of KIA MOTORS AMERICA, INC.

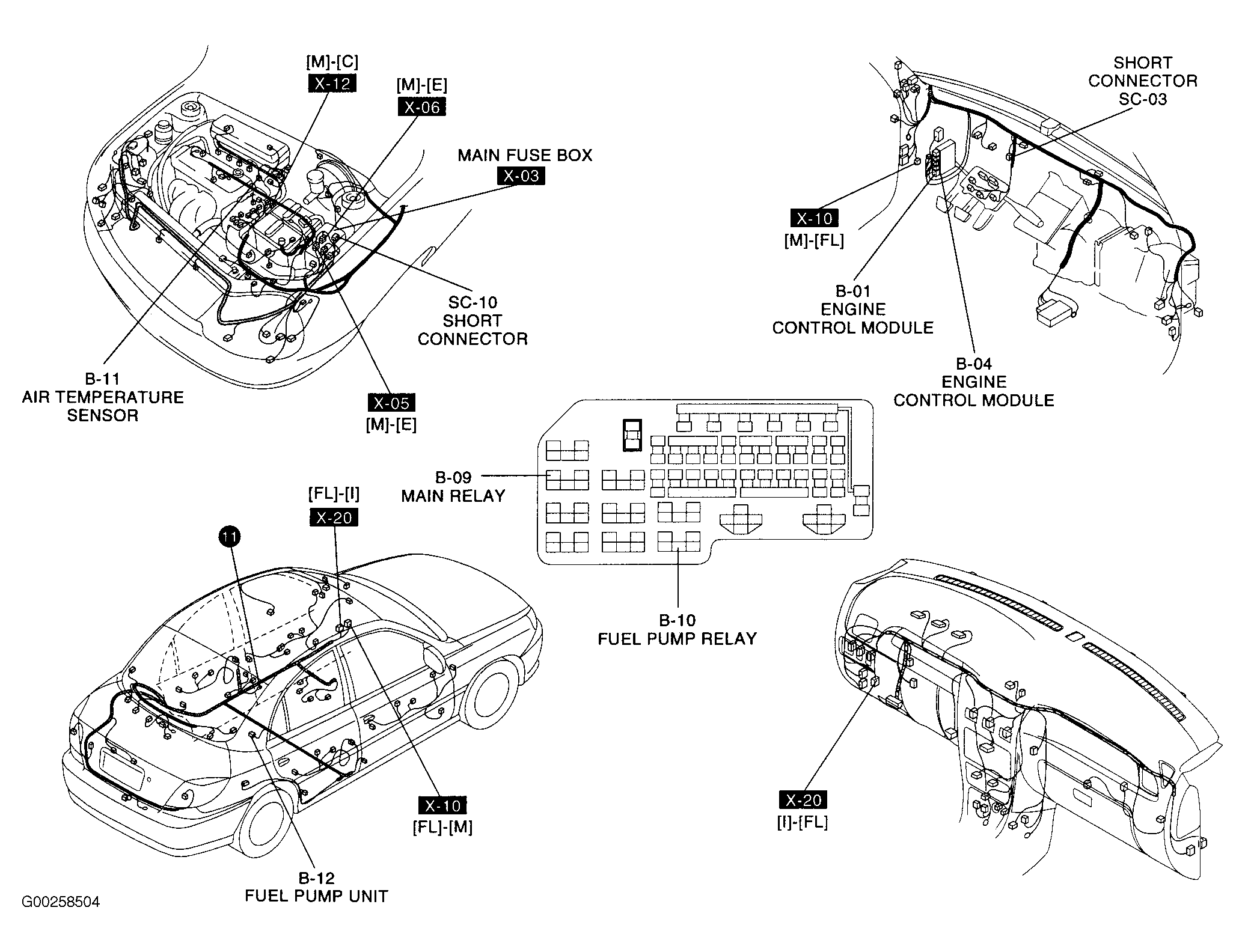

Fig 4: Engine Control System

G00258504

Courtesy of KIA MOTORS AMERICA, INC.

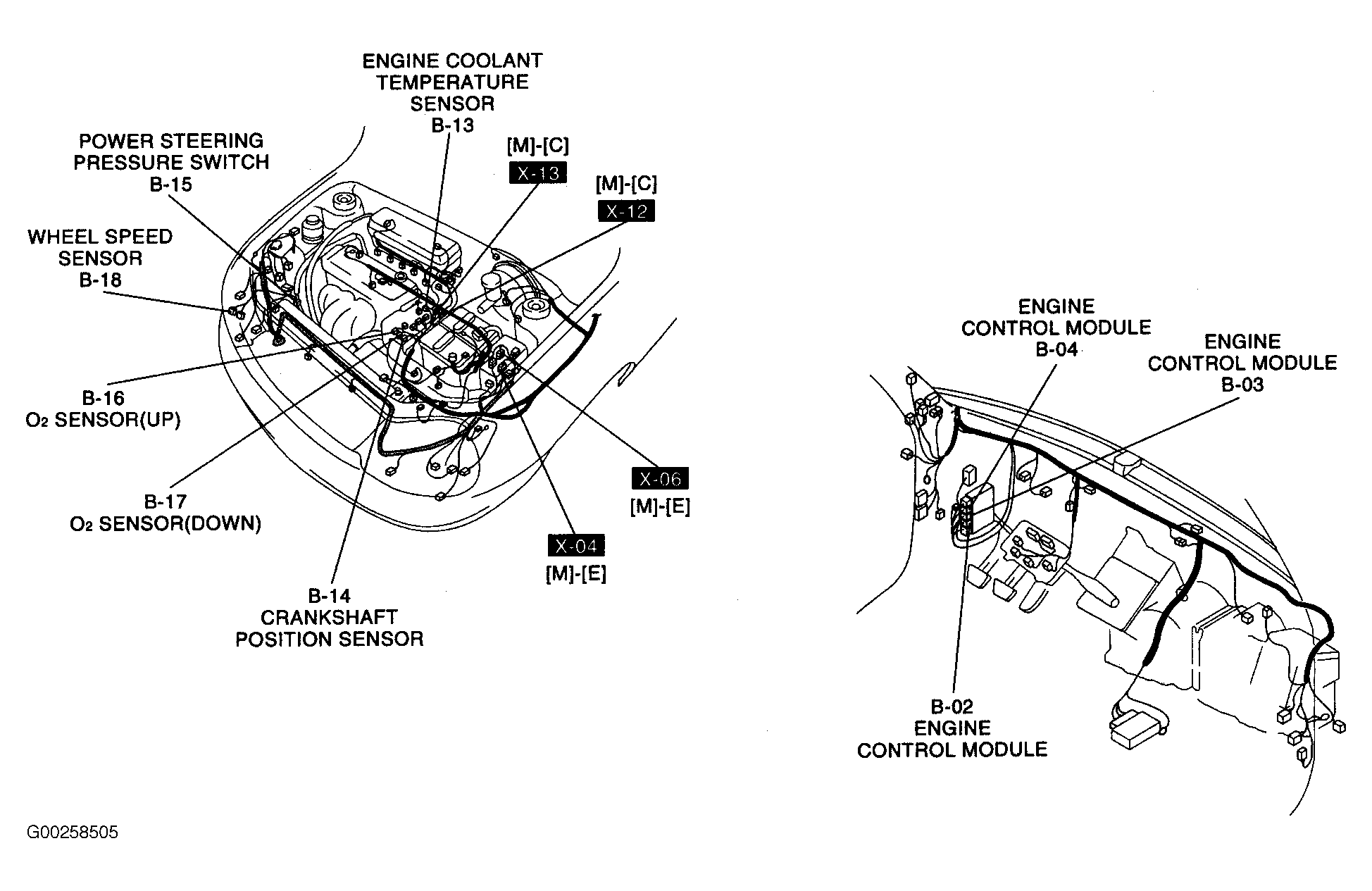

Fig 5: Engine Control System

G00258505

Courtesy of KIA MOTORS AMERICA, INC.

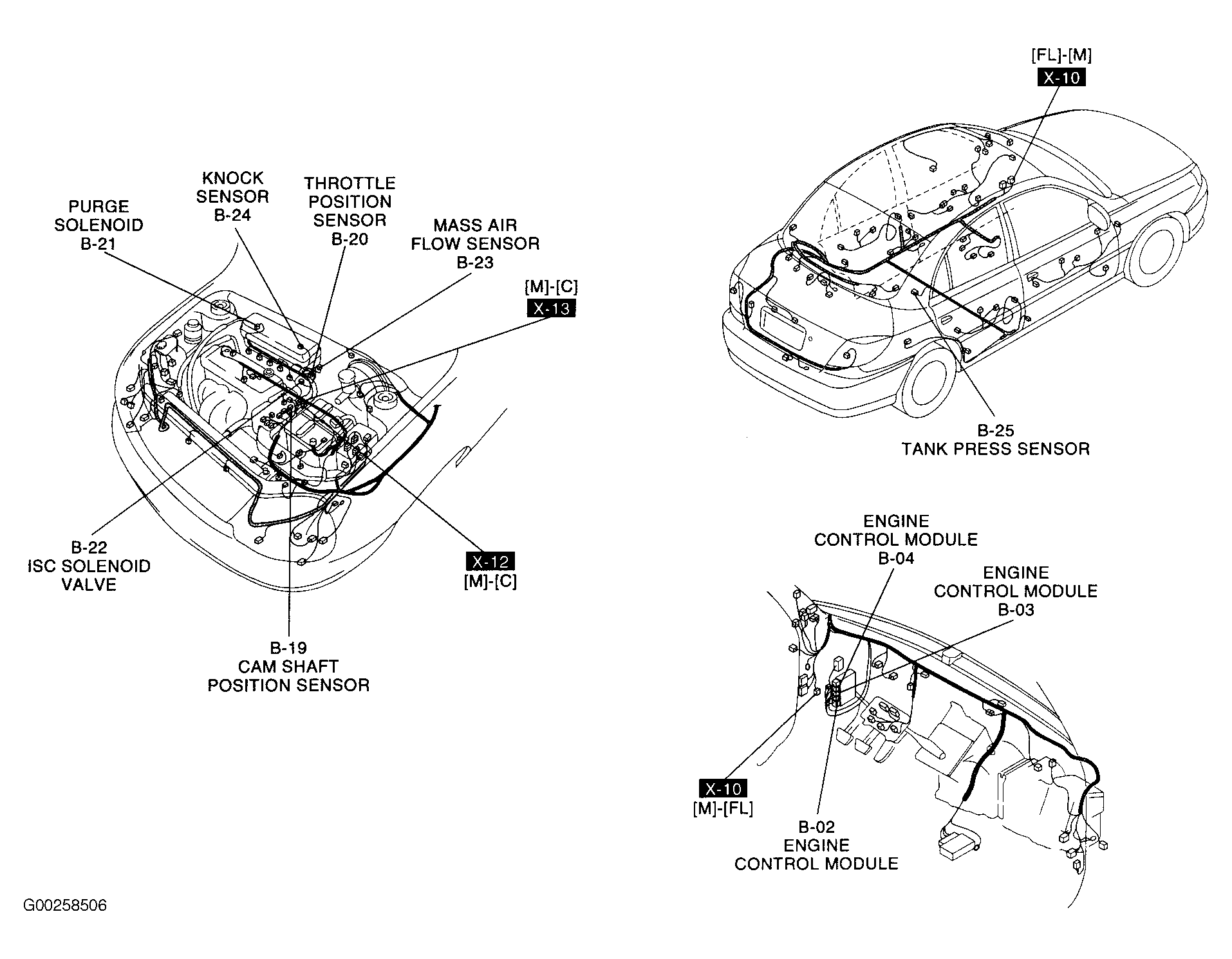

Fig 6: Engine Control System

G00258506

Courtesy of KIA MOTORS AMERICA, INC.

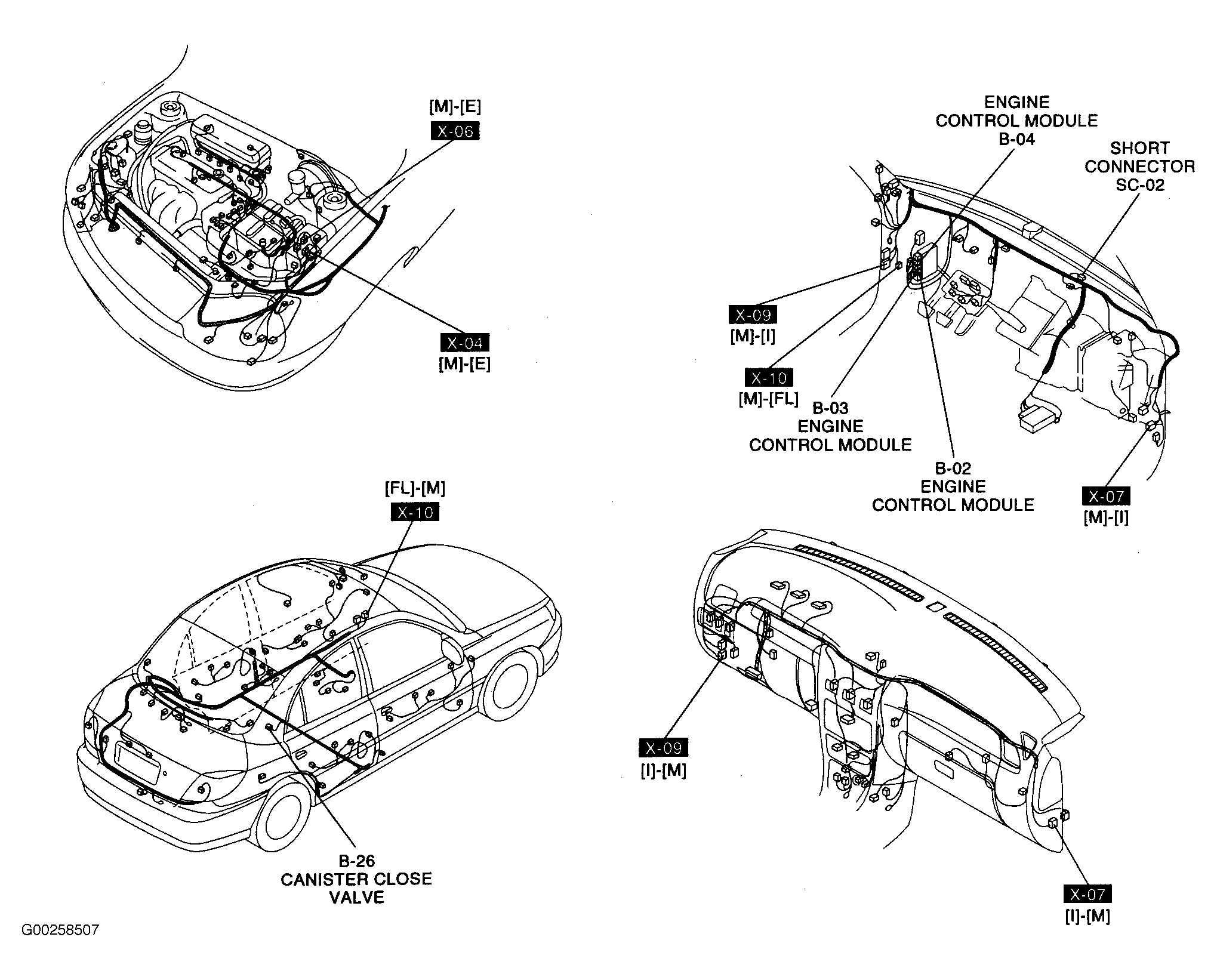

Fig 7: Engine Control System

G00258507

Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Engine Control System

G00258508

Courtesy of KIA MOTORS AMERICA, INC.

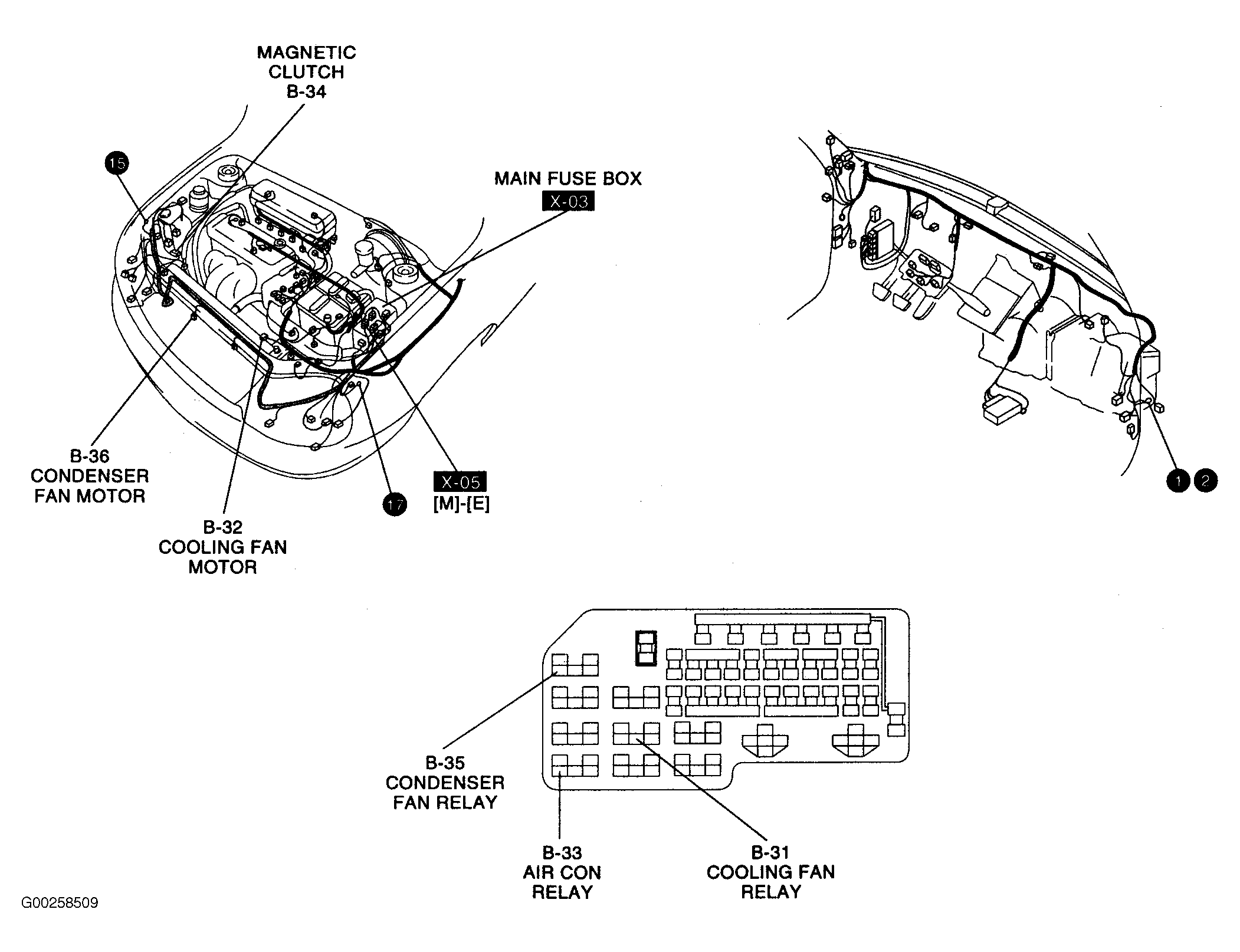

Fig 9: Cooling System

G00258509

Courtesy of KIA MOTORS AMERICA, INC.

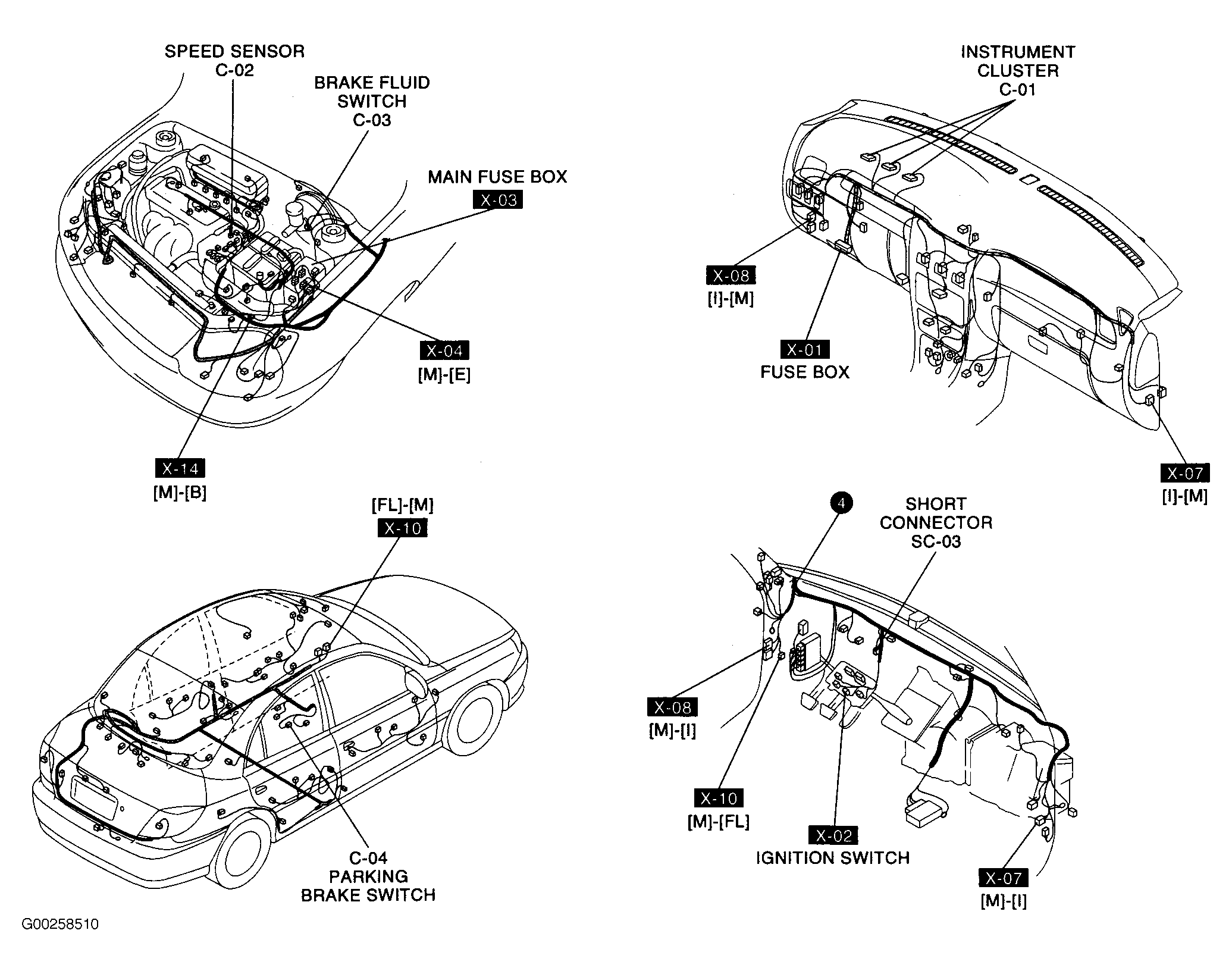

Fig 10: Instrument Cluster

G00258510

Courtesy of KIA MOTORS AMERICA, INC.

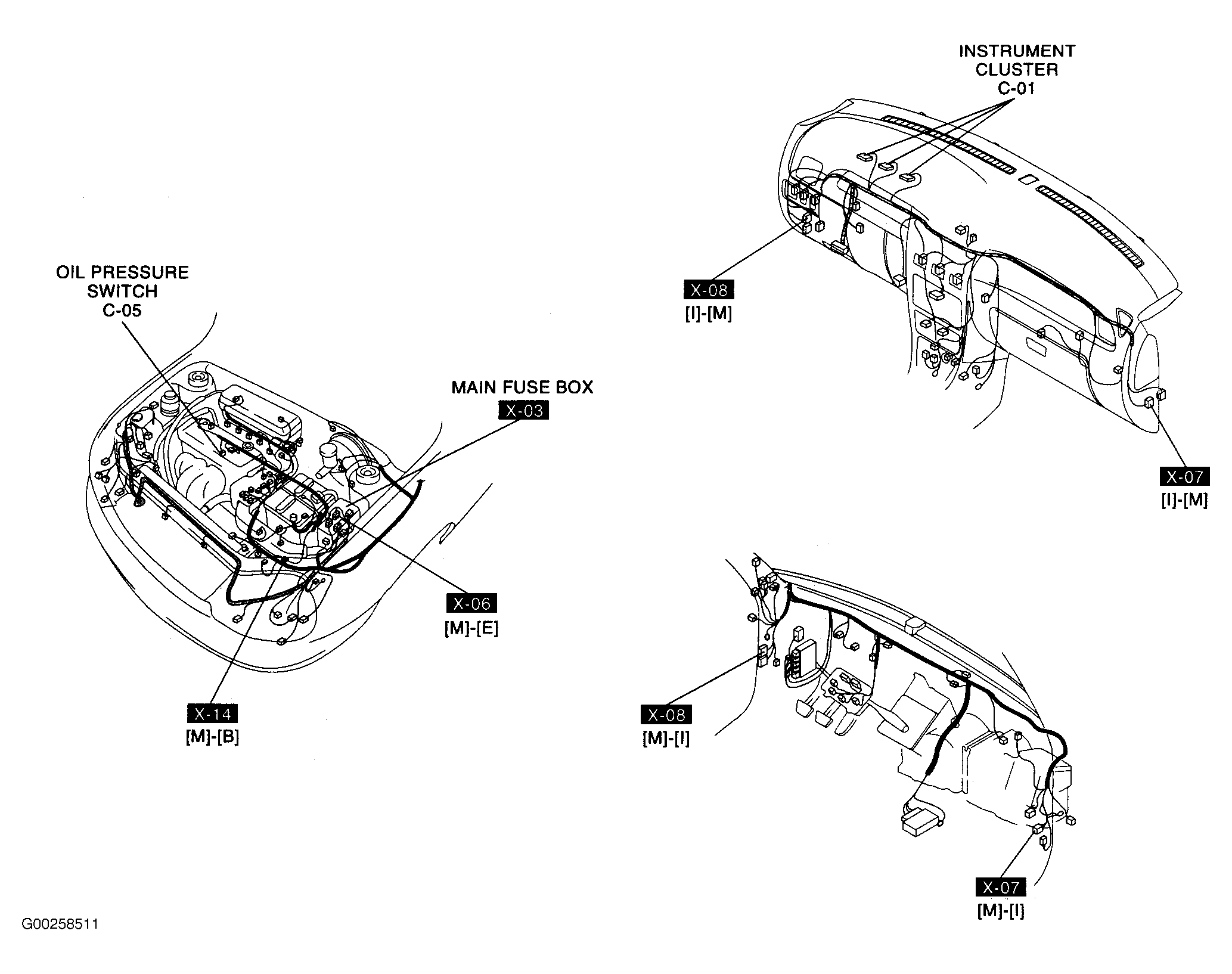

Fig 11: Instrument Cluster

G00258511

Courtesy of KIA MOTORS AMERICA, INC.

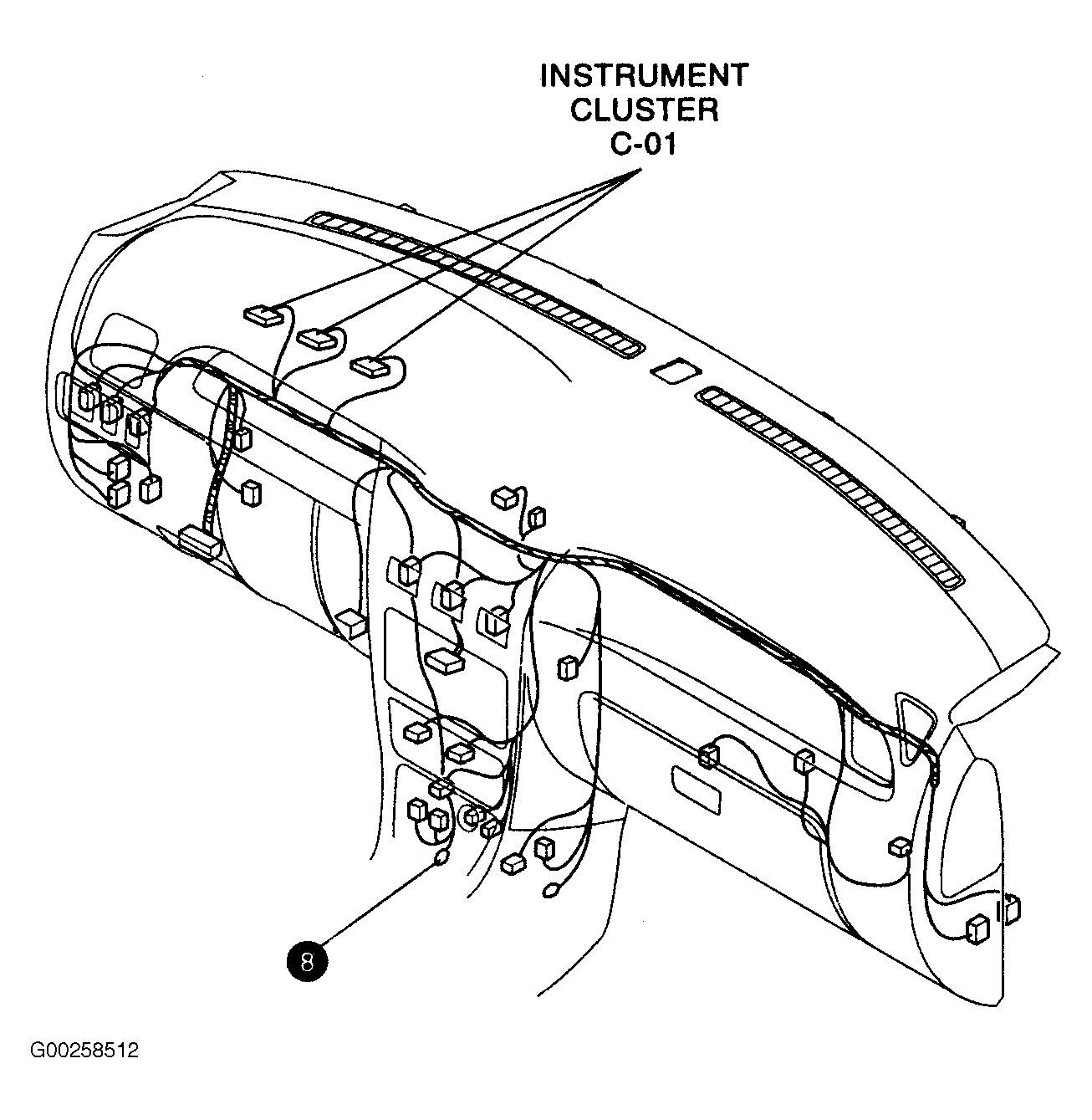

Fig 12: Instrument Cluster

G00258512

Courtesy of KIA MOTORS AMERICA, INC.

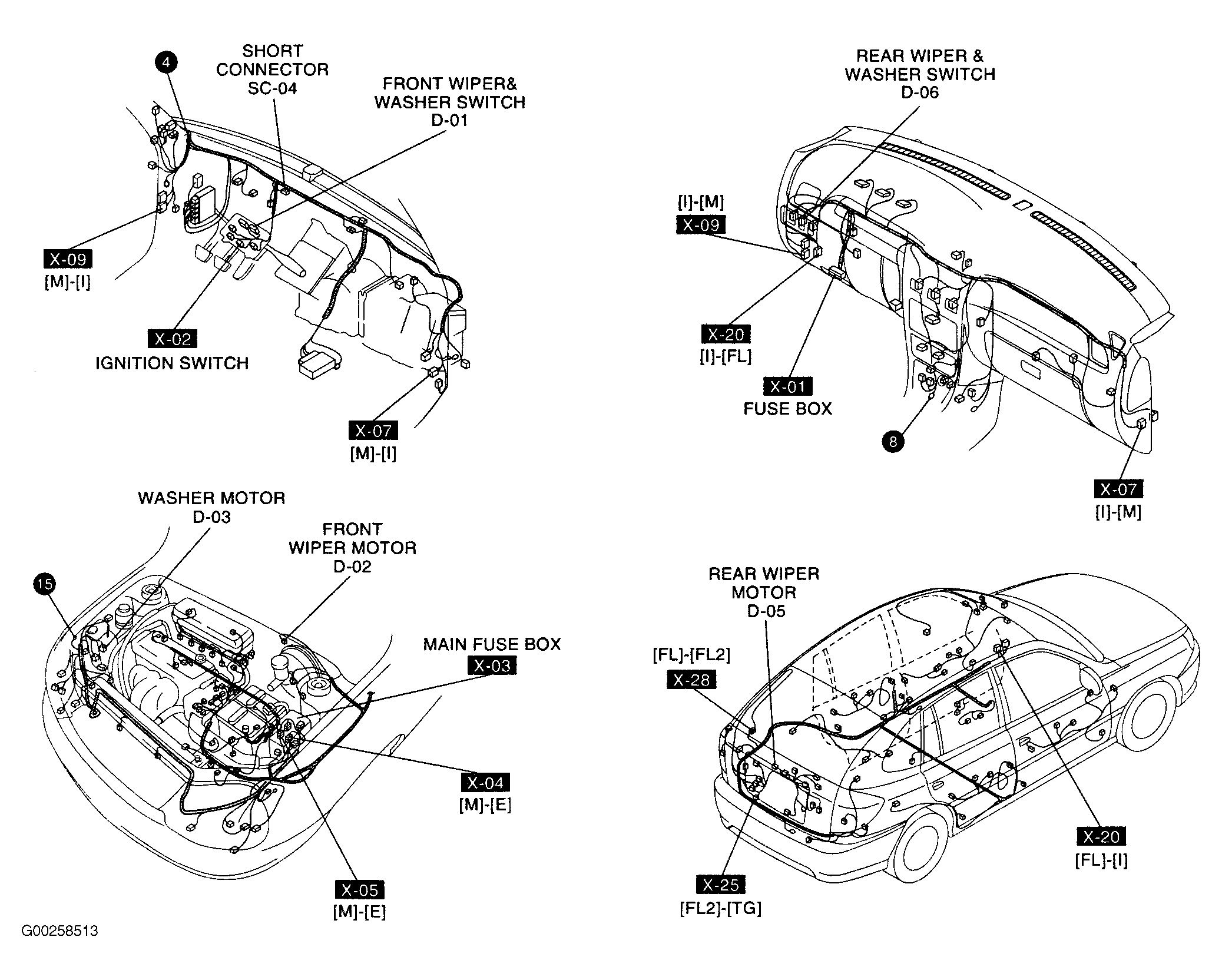

Fig 13: Wiper/Washer System (Front & Rear)

G00258513

Courtesy of KIA MOTORS AMERICA, INC.

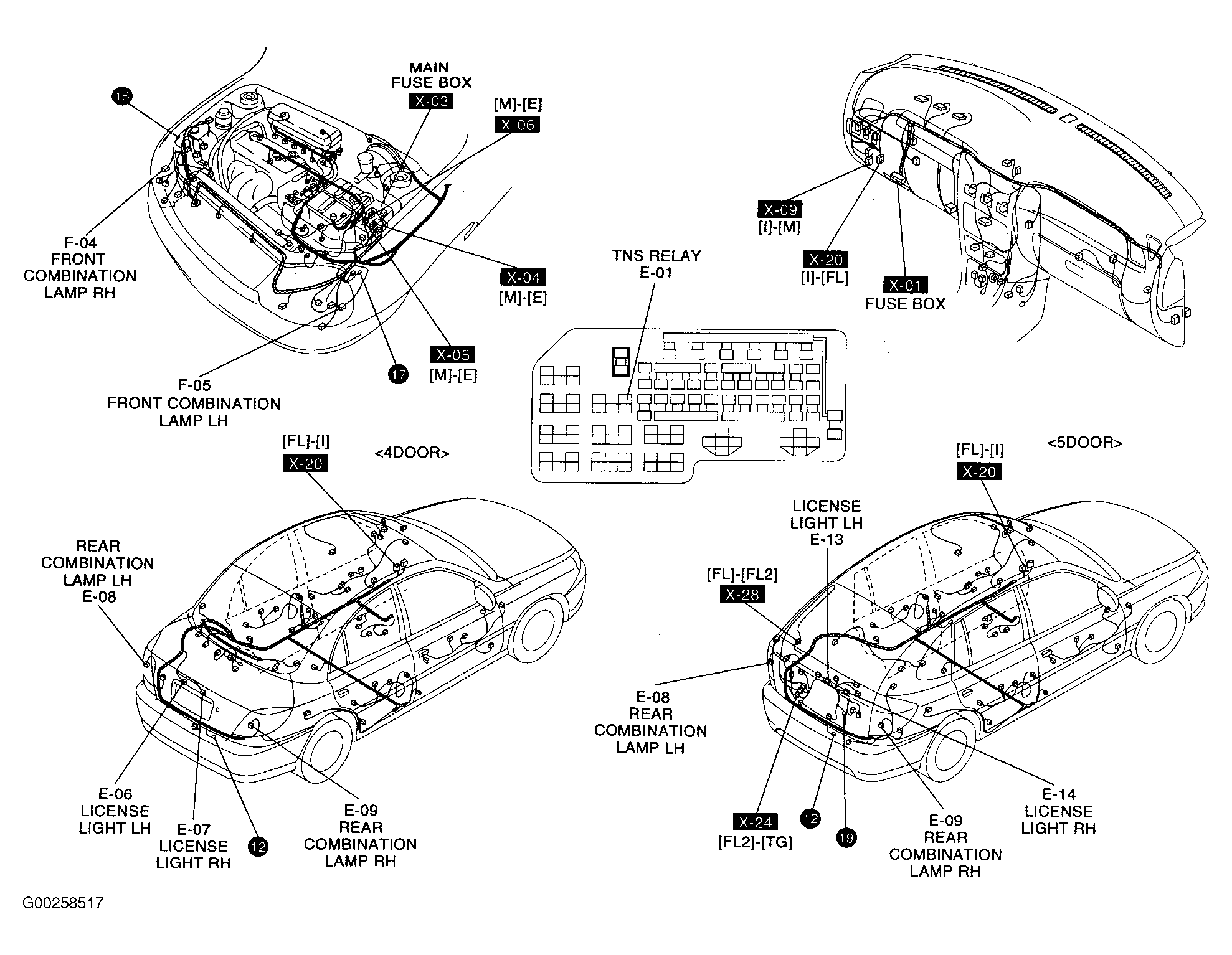

Fig 14: Position, Tail & License Lamps

G00258517

Courtesy of KIA MOTORS AMERICA, INC.

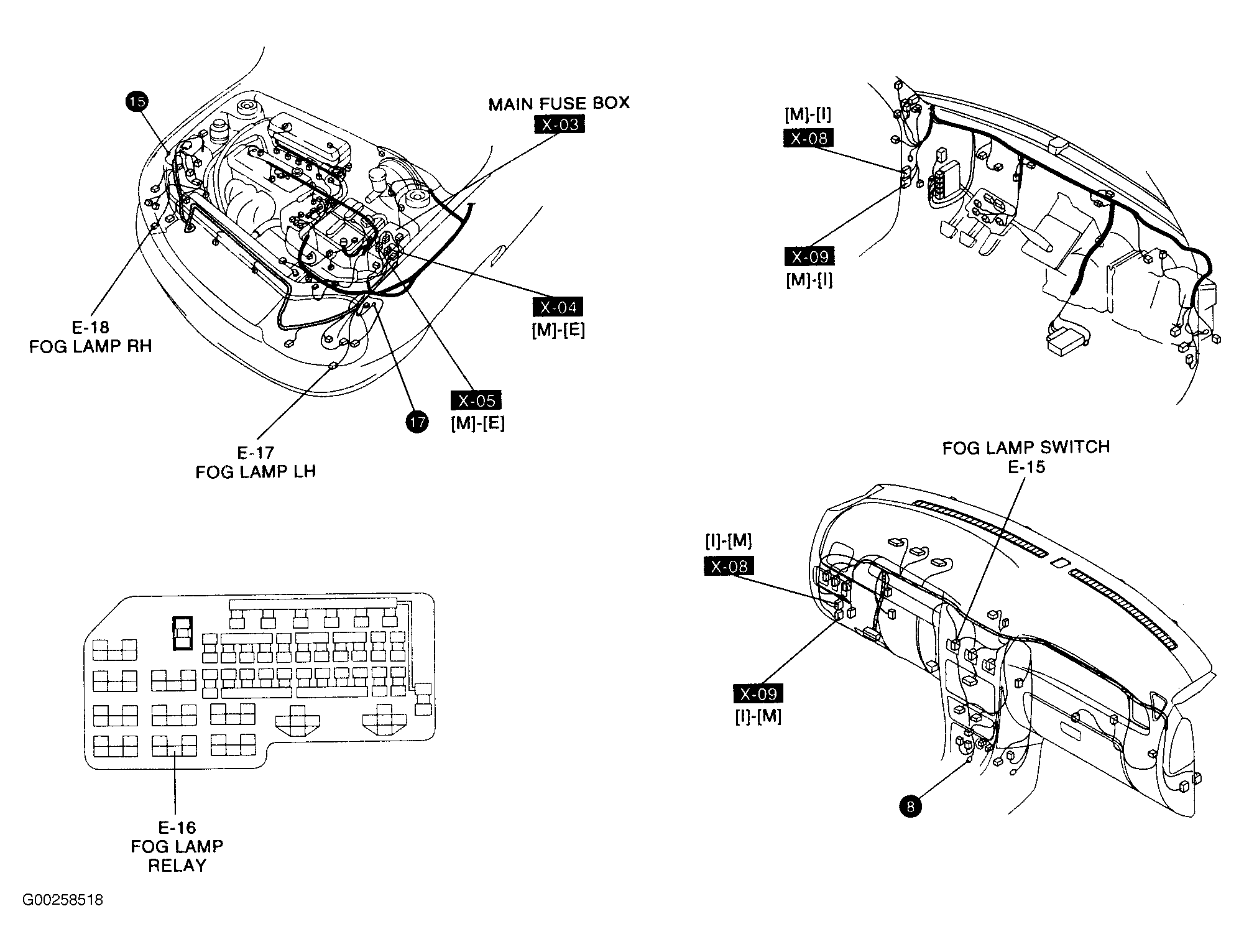

Fig 15: Fog Lamps

G00258518

Courtesy of KIA MOTORS AMERICA, INC.

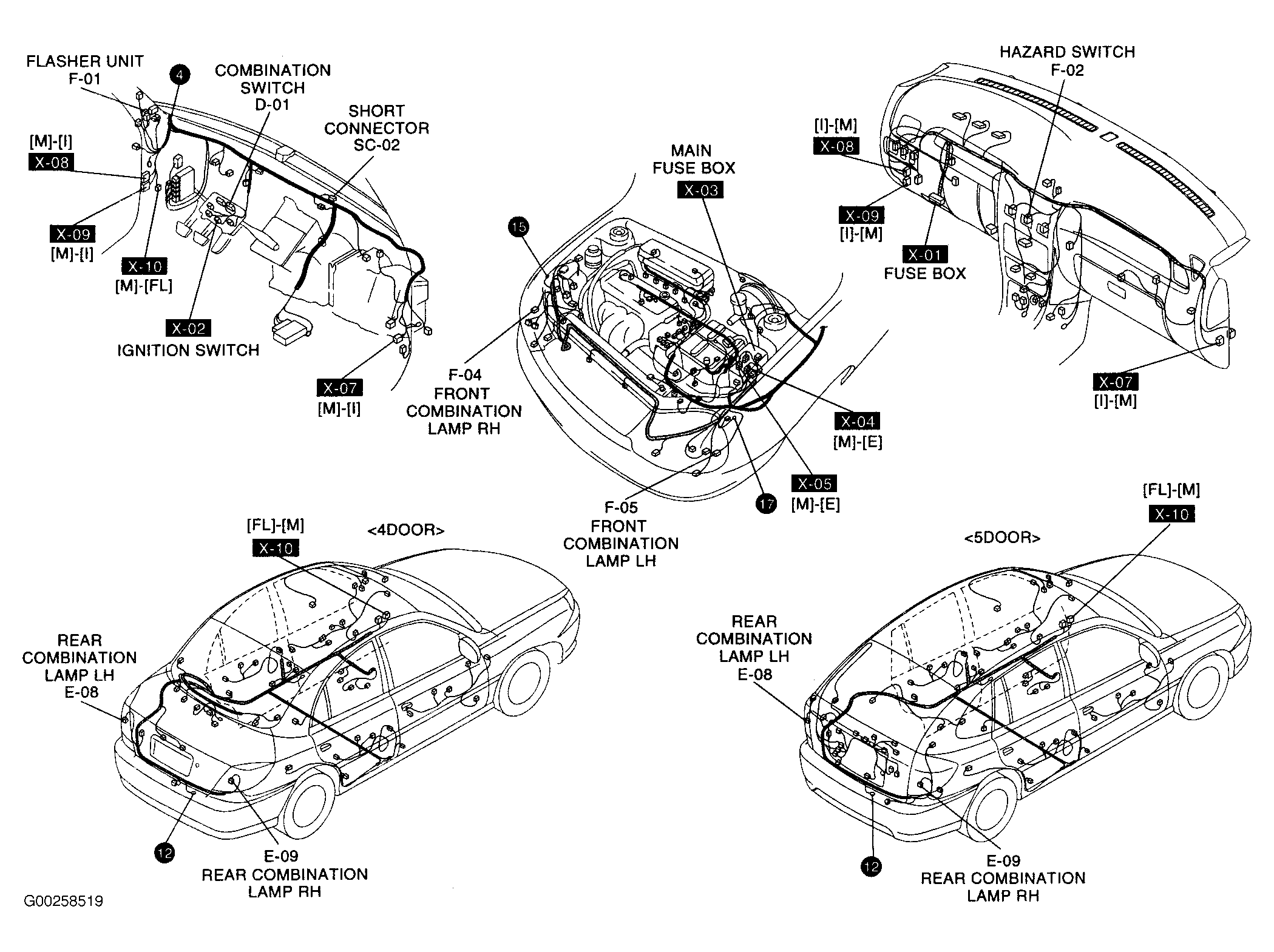

Fig 16: Turn & Hazard Flasher Unit

G00258519

Courtesy of KIA MOTORS AMERICA, INC.

Fig 17: Stop Lights, Back-Up Lights & Shift Lock Unit

G00258520

Courtesy of KIA MOTORS AMERICA, INC.

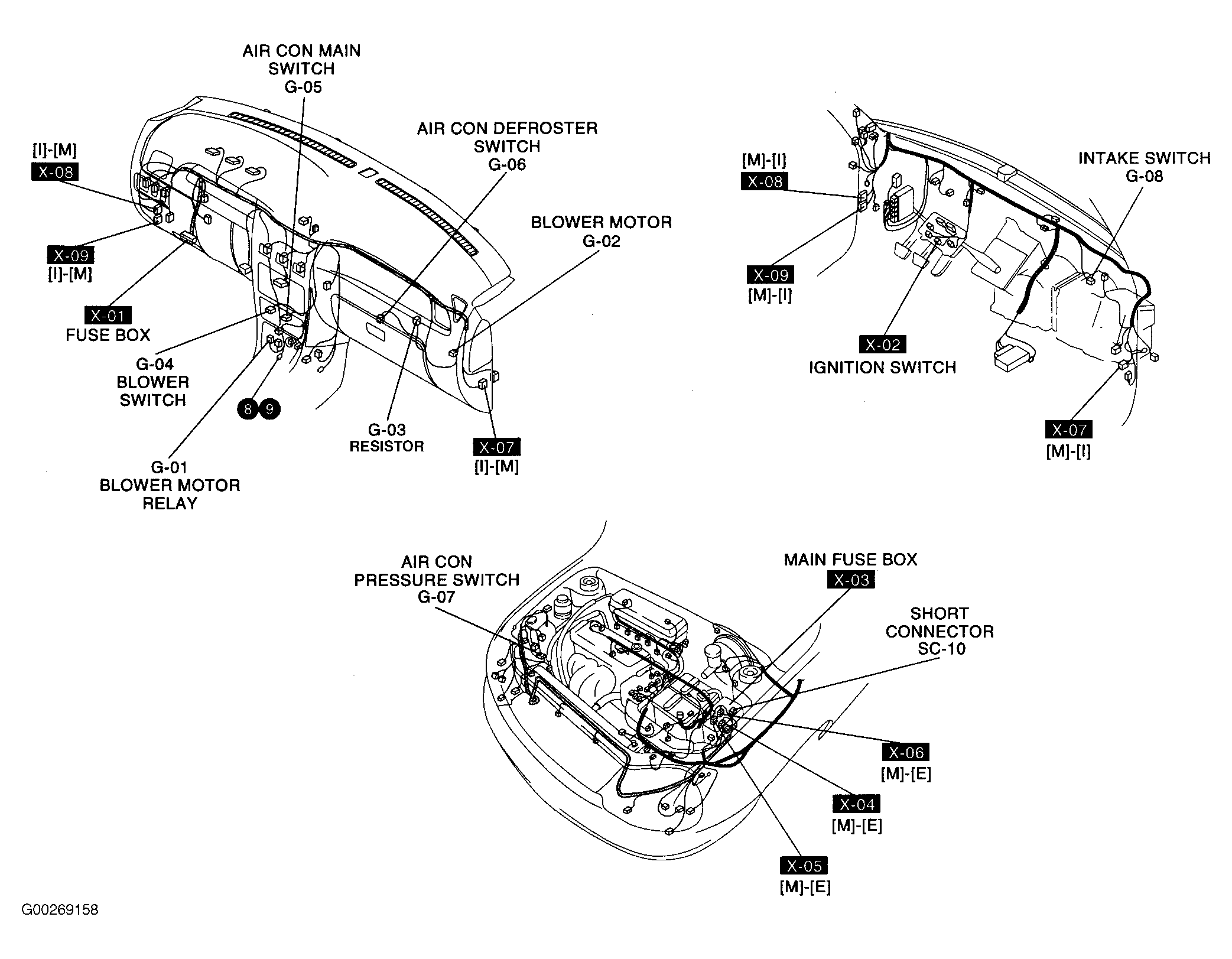

Fig 18: Heater & Air Conditioner System

G00269158

Courtesy of KIA MOTORS AMERICA, INC.

Fig 19: Automatic Transmission Controls

G00269160

Courtesy of KIA MOTORS AMERICA, INC.

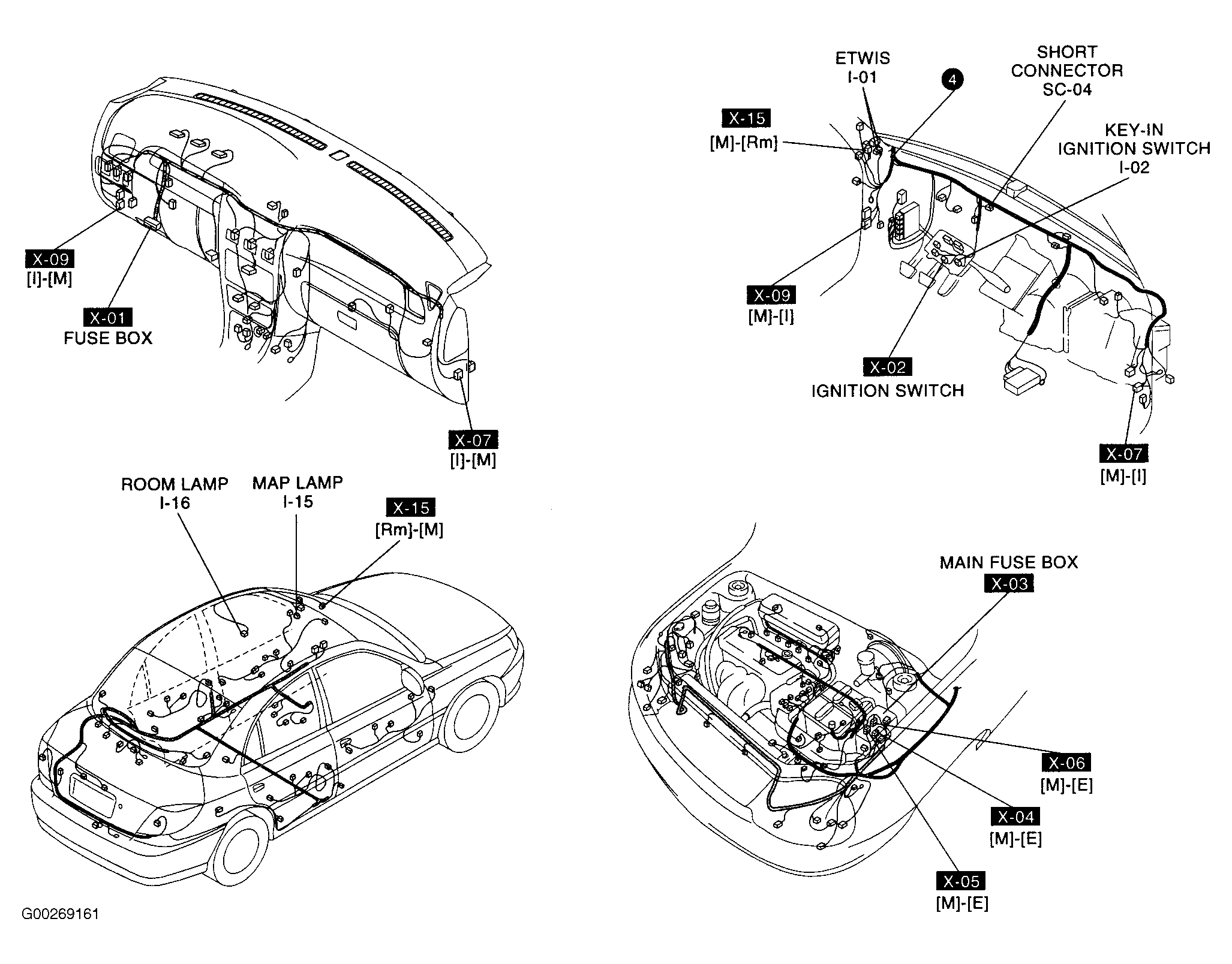

Fig 20: ETWIS & Room Lamps

G00269161

Courtesy of KIA MOTORS AMERICA, INC.

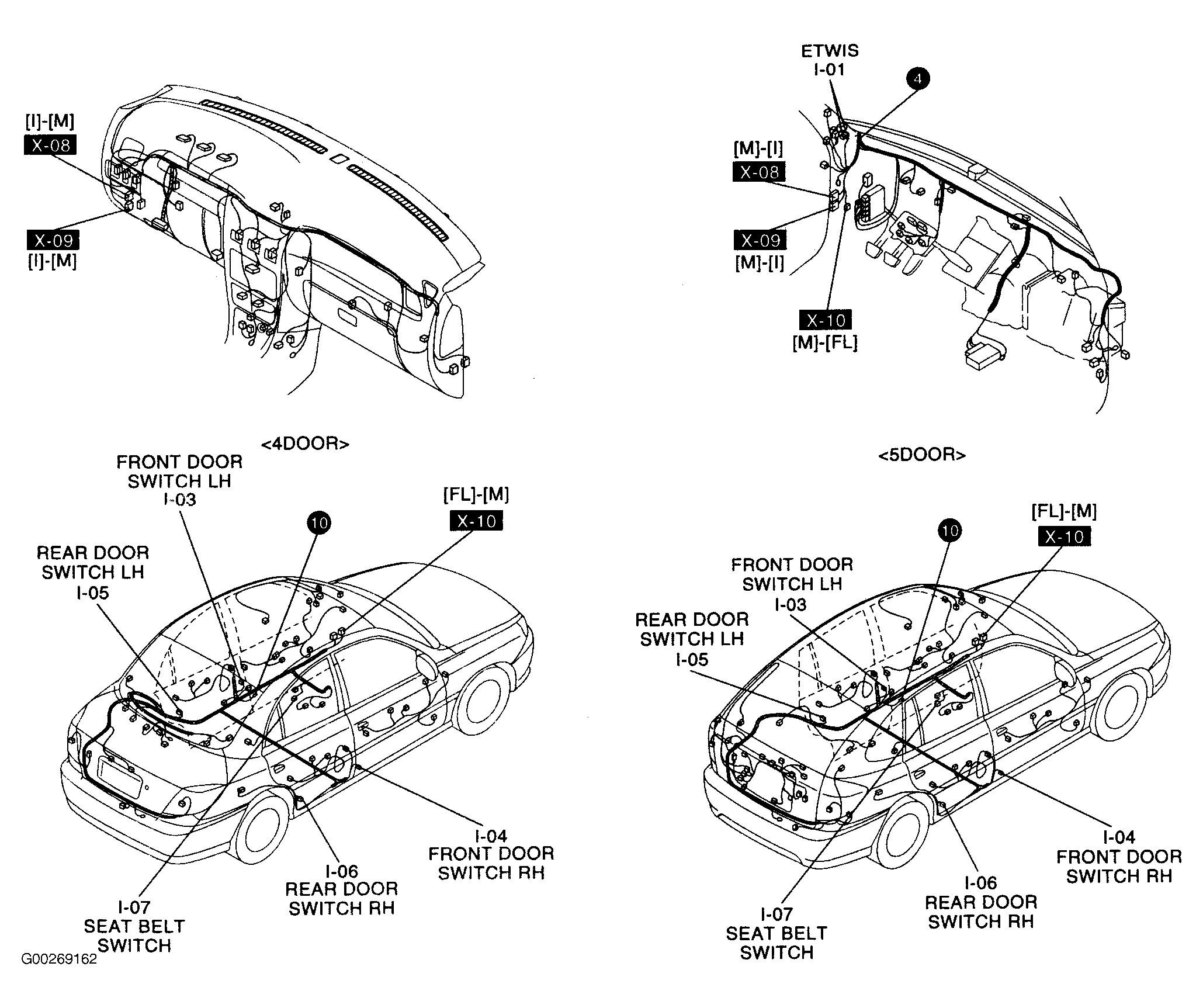

Fig 21: ETWIS

G00269162

Courtesy of KIA MOTORS AMERICA, INC.

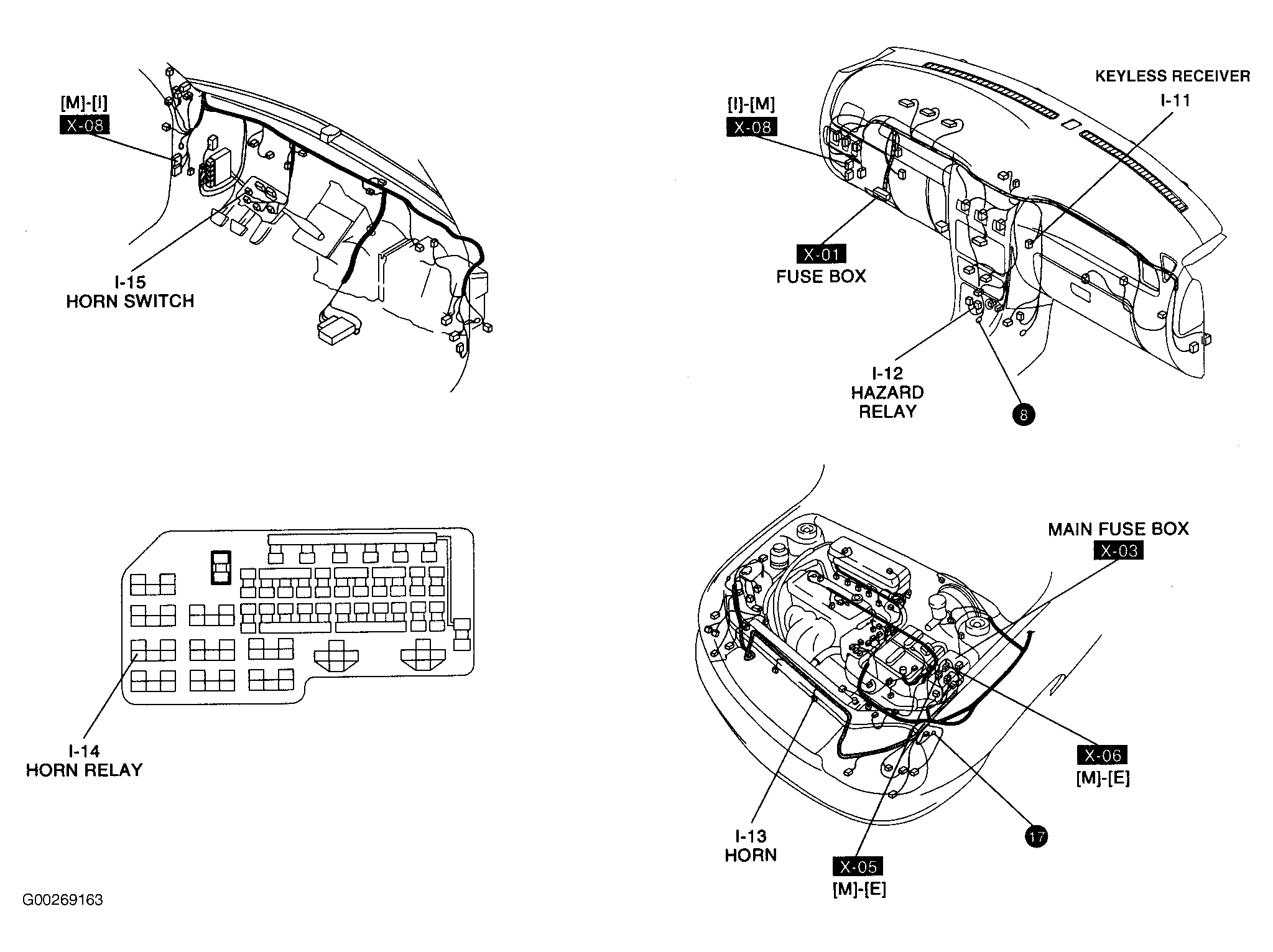

Fig 22: Keyless Receiver, Hazard Relay & Horn

G00269163

Courtesy of KIA MOTORS AMERICA, INC.

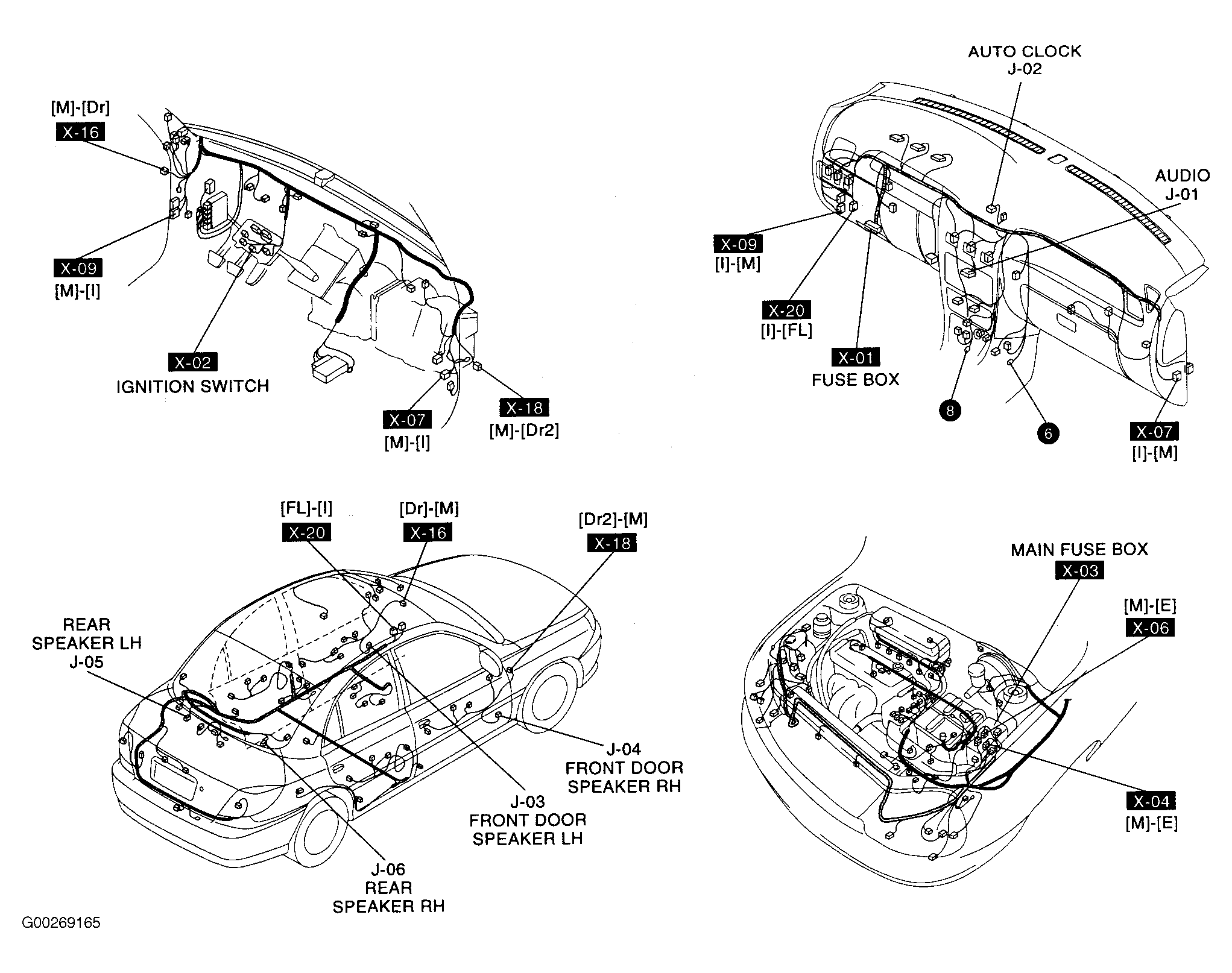

Fig 23: Audio System

G00269165

Courtesy of KIA MOTORS AMERICA, INC.

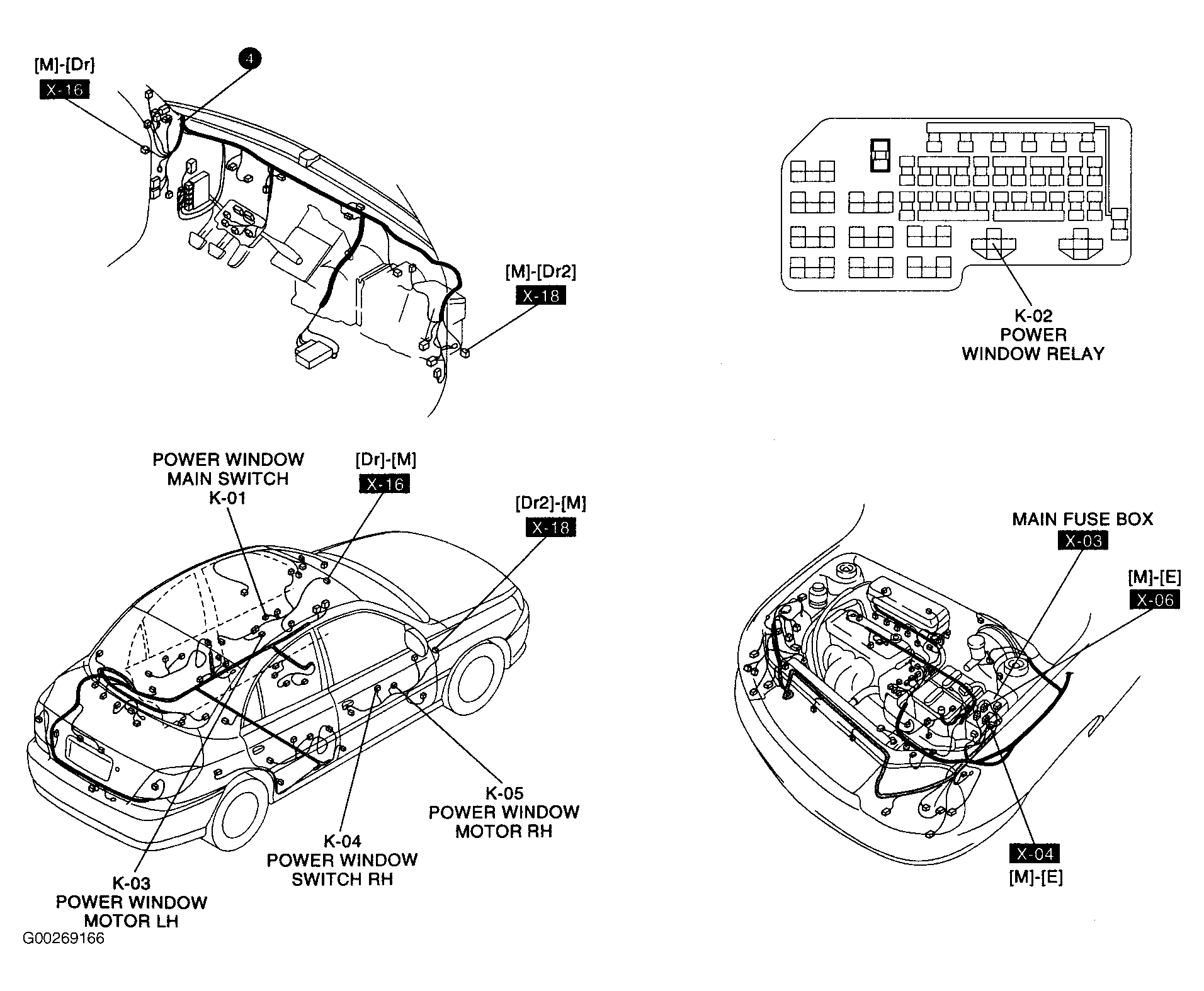

Fig 24: Power Window System (2 Button)

G00269166

Courtesy of KIA MOTORS AMERICA, INC.

Fig 25: Power Window System (4 Button)

G00269167

Courtesy of KIA MOTORS AMERICA, INC.

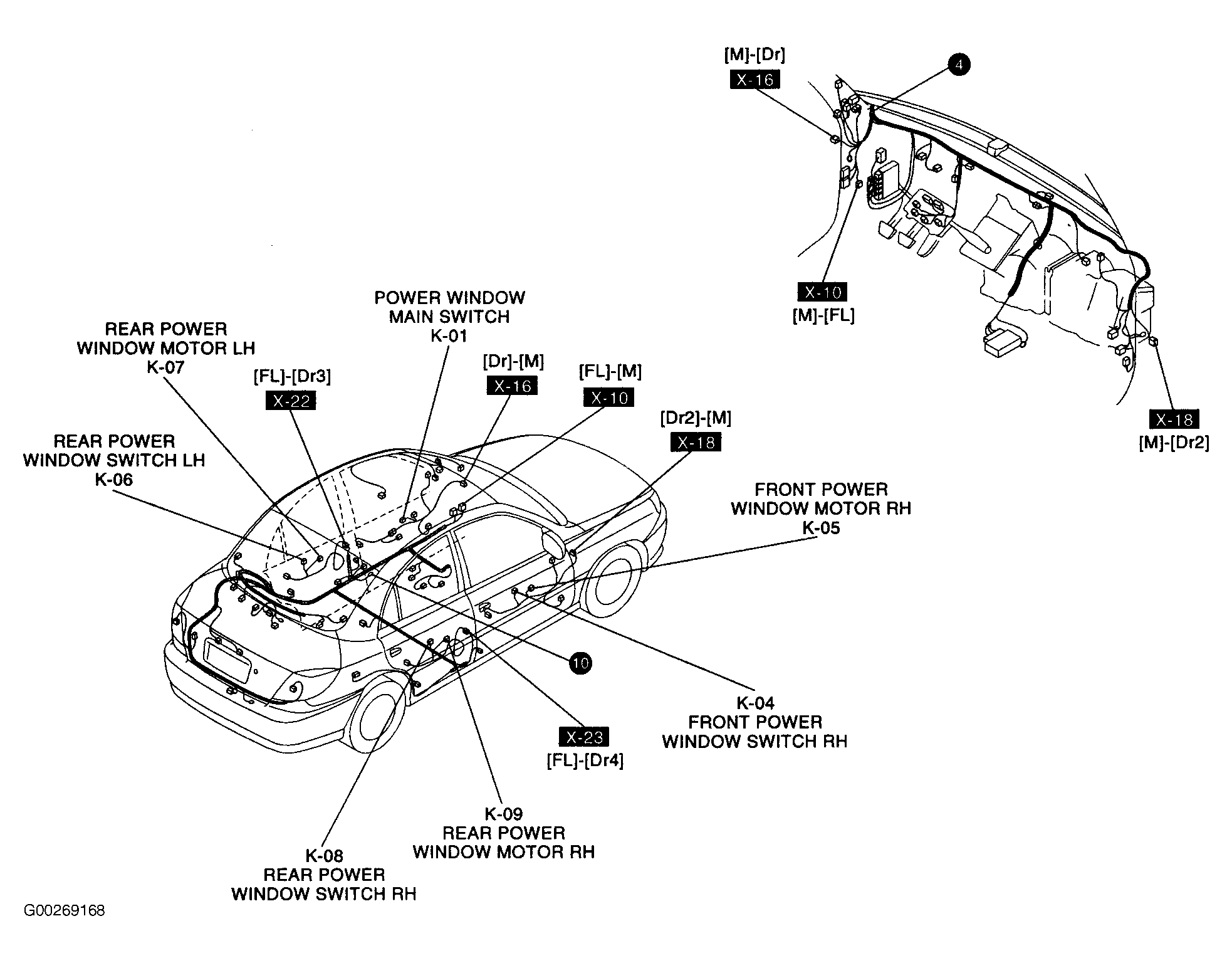

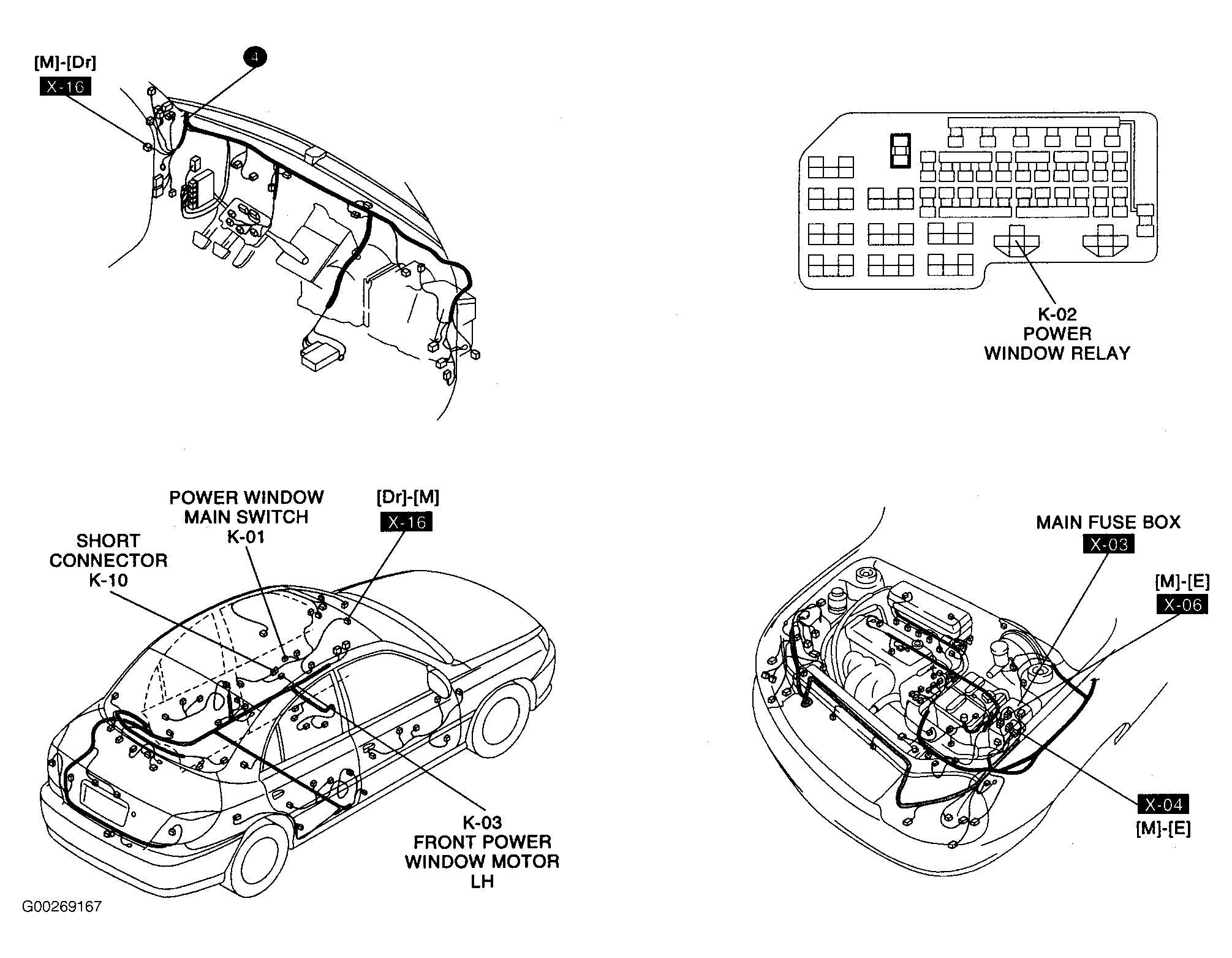

Fig 26: Power Window System (4 Button)

G00269168

Courtesy of KIA MOTORS AMERICA, INC.

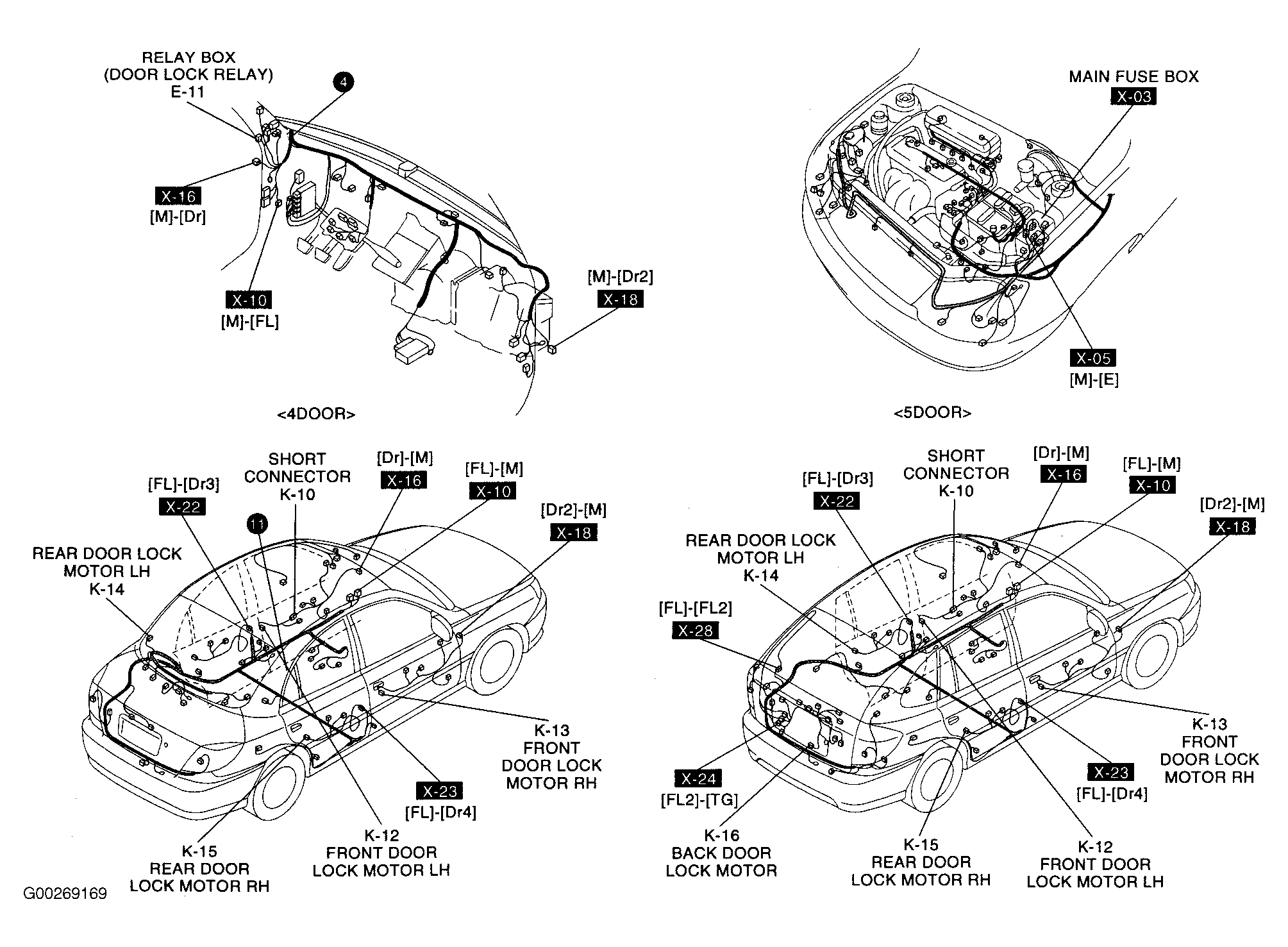

Fig 27: Power Door Lock System

G00269169

Courtesy of KIA MOTORS AMERICA, INC.

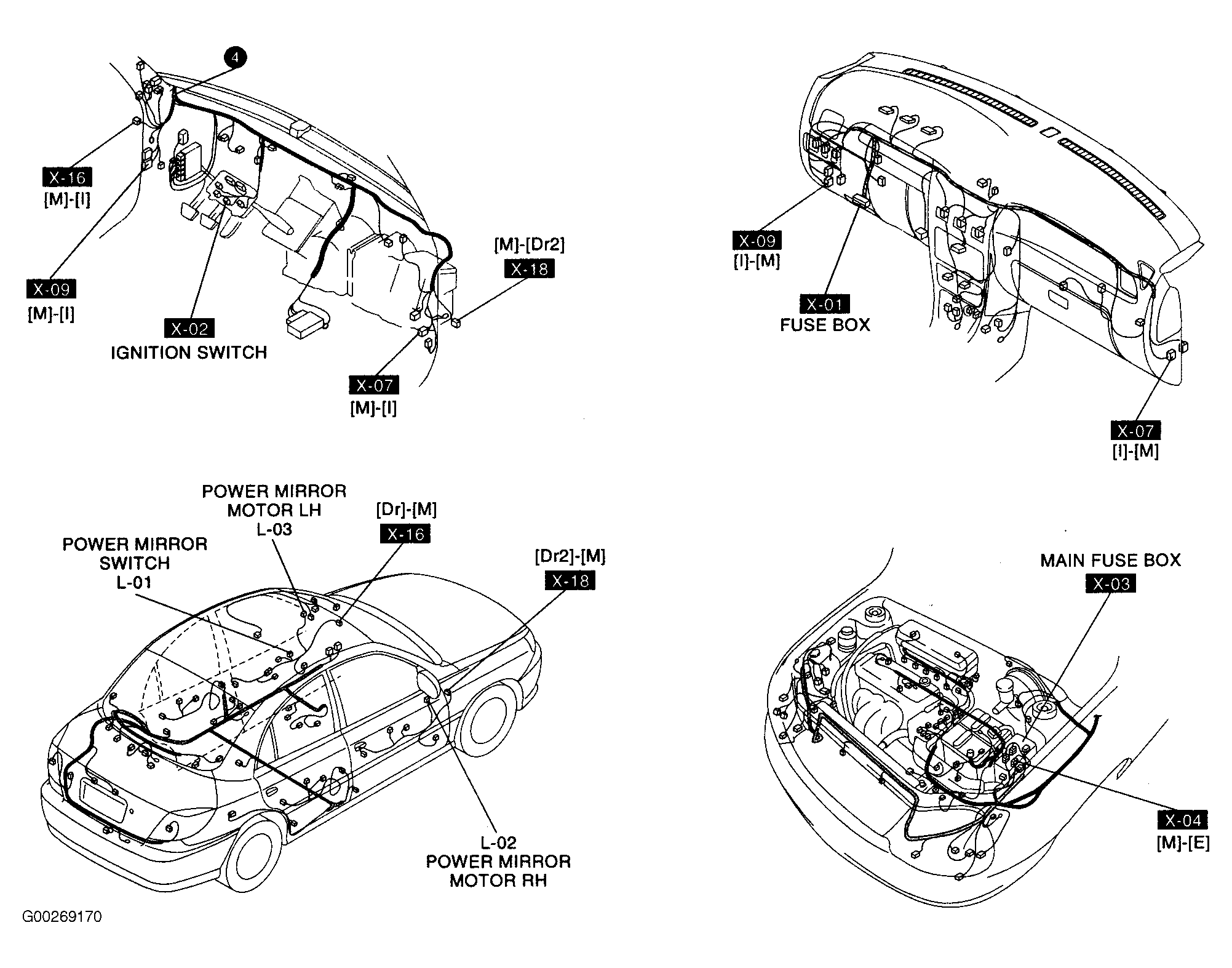

Fig 28: Power Mirror System

G00269170

Courtesy of KIA MOTORS AMERICA, INC.

Fig 29: Anti-Lock Brake System

G00269171

Courtesy of KIA MOTORS AMERICA, INC.

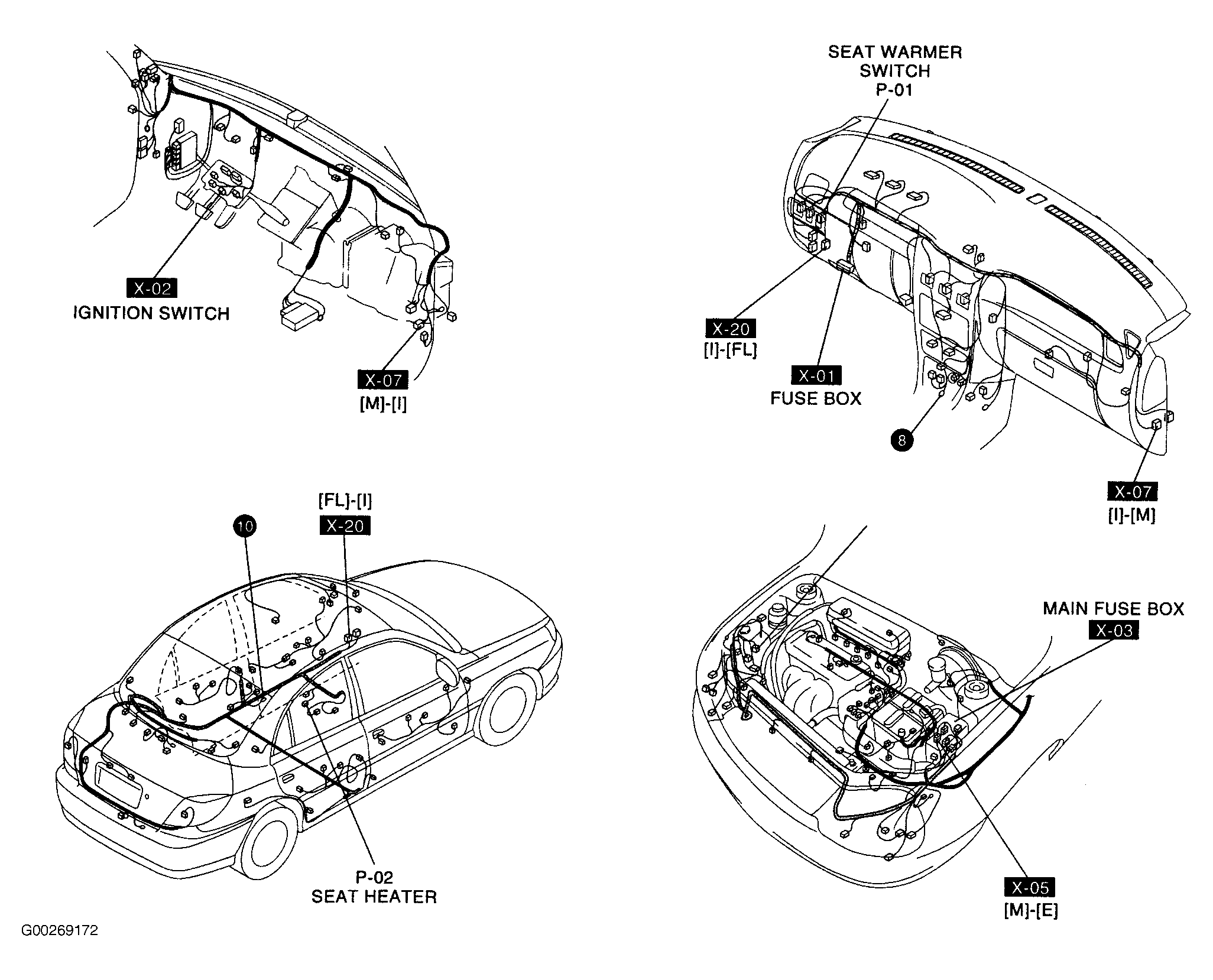

Fig 30: Seat Warmer System

G00269172

Courtesy of KIA MOTORS AMERICA, INC.

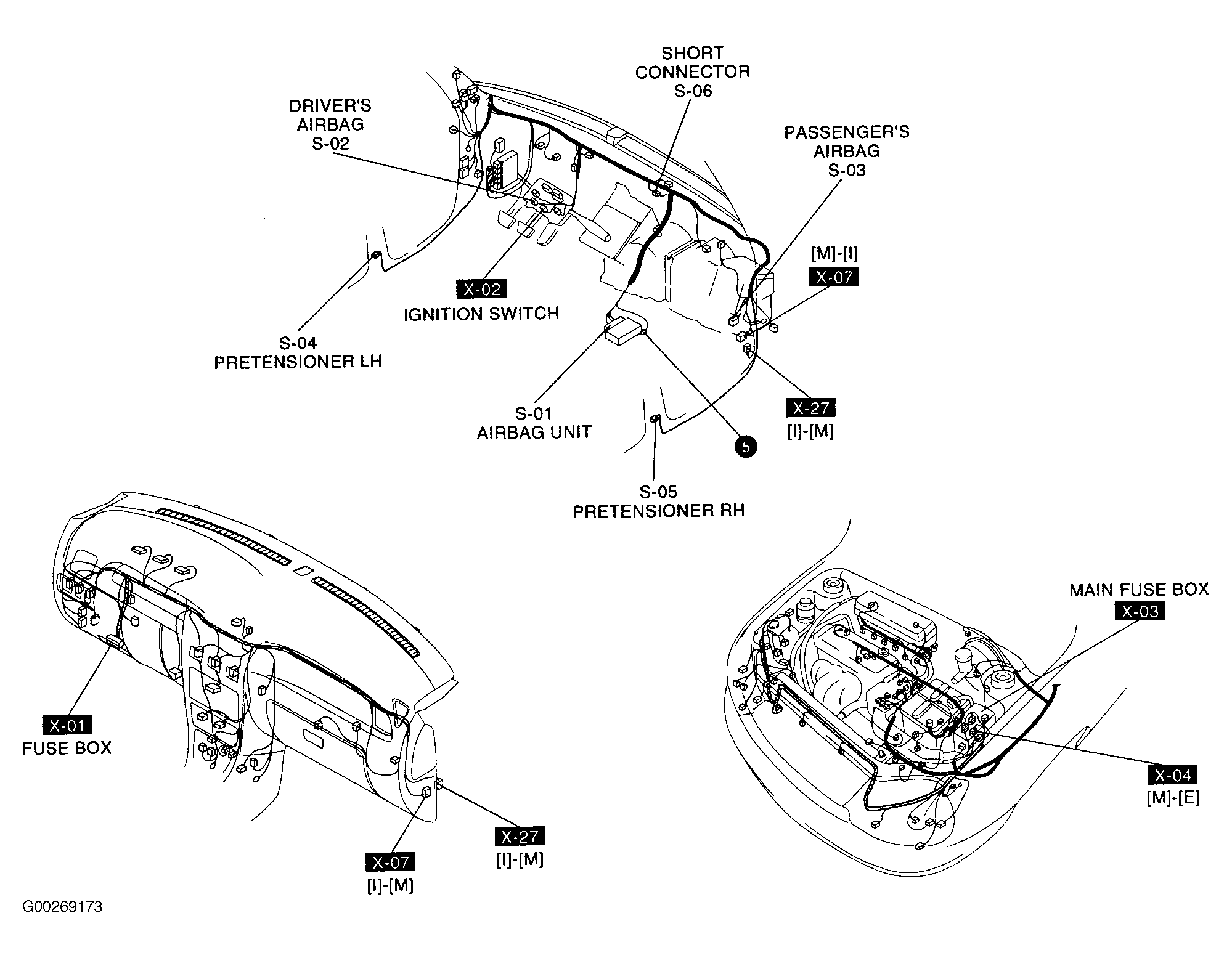

Fig 31: Airbag System

G00269173

Courtesy of KIA MOTORS AMERICA, INC.

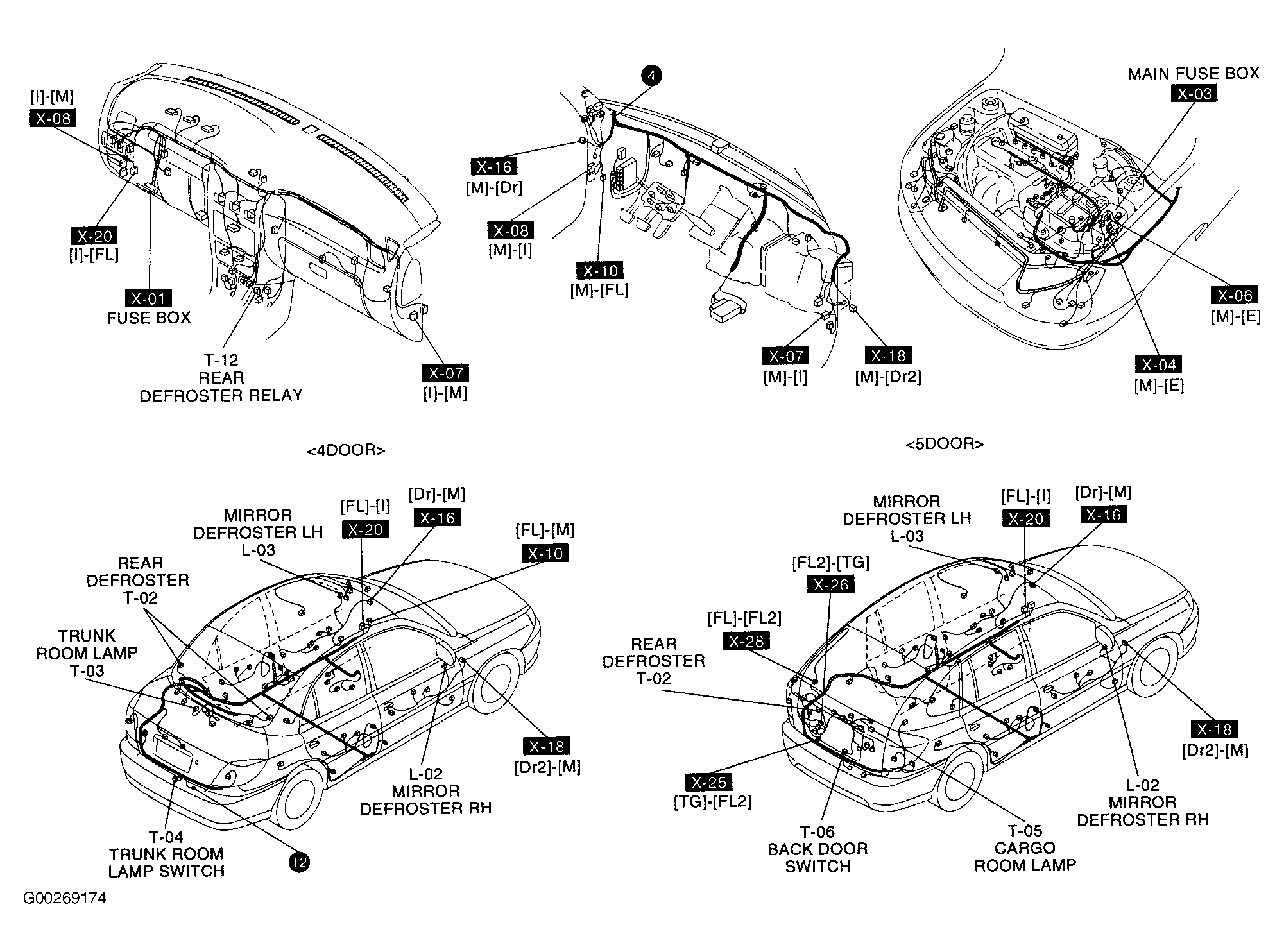

Fig 32: Rear Defroster & Trunk Room Lamp

G00269174

Courtesy of KIA MOTORS AMERICA, INC.

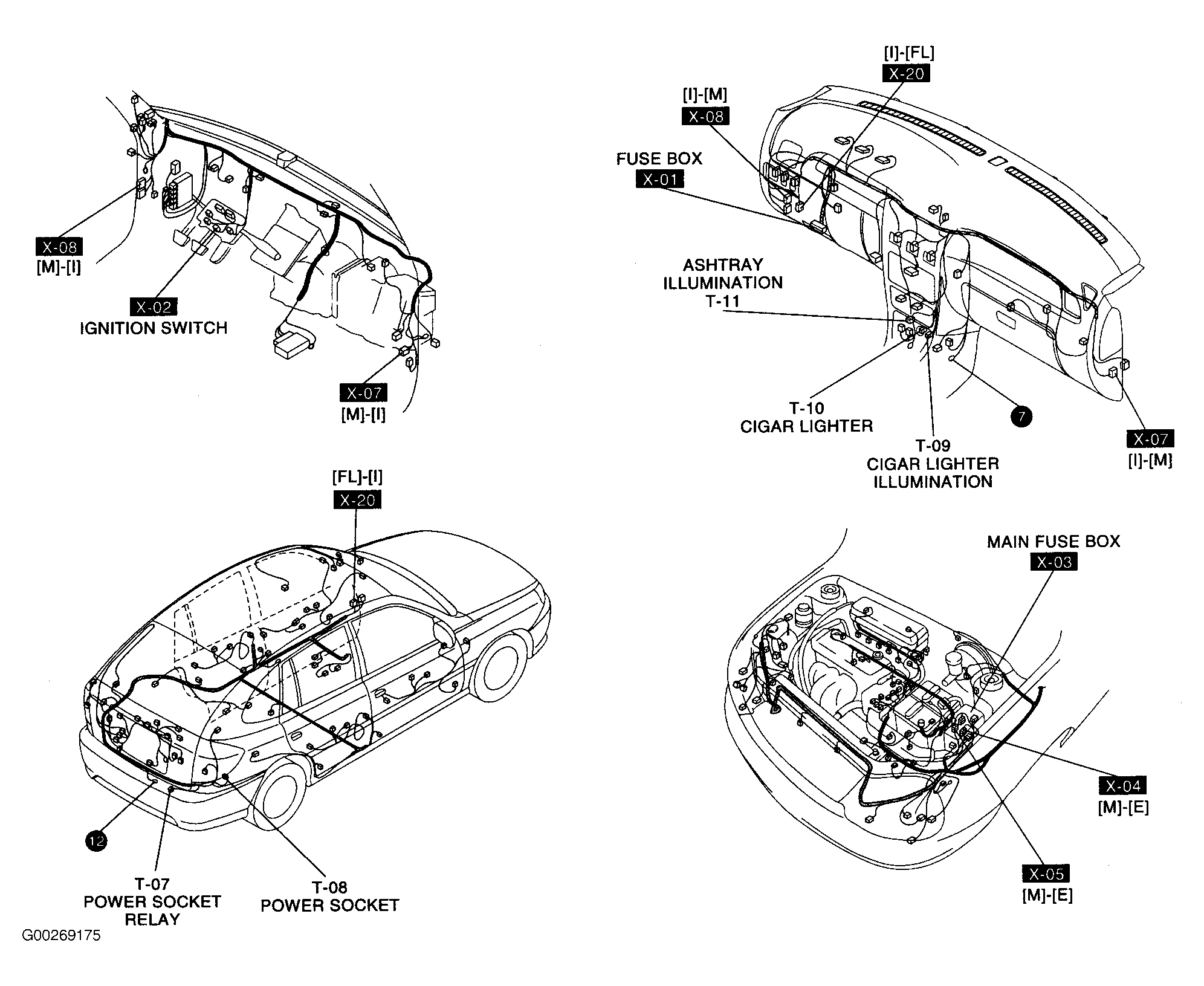

Fig 33: Power Socket & Cigar Lighter

G00269175

Courtesy of KIA MOTORS AMERICA, INC.

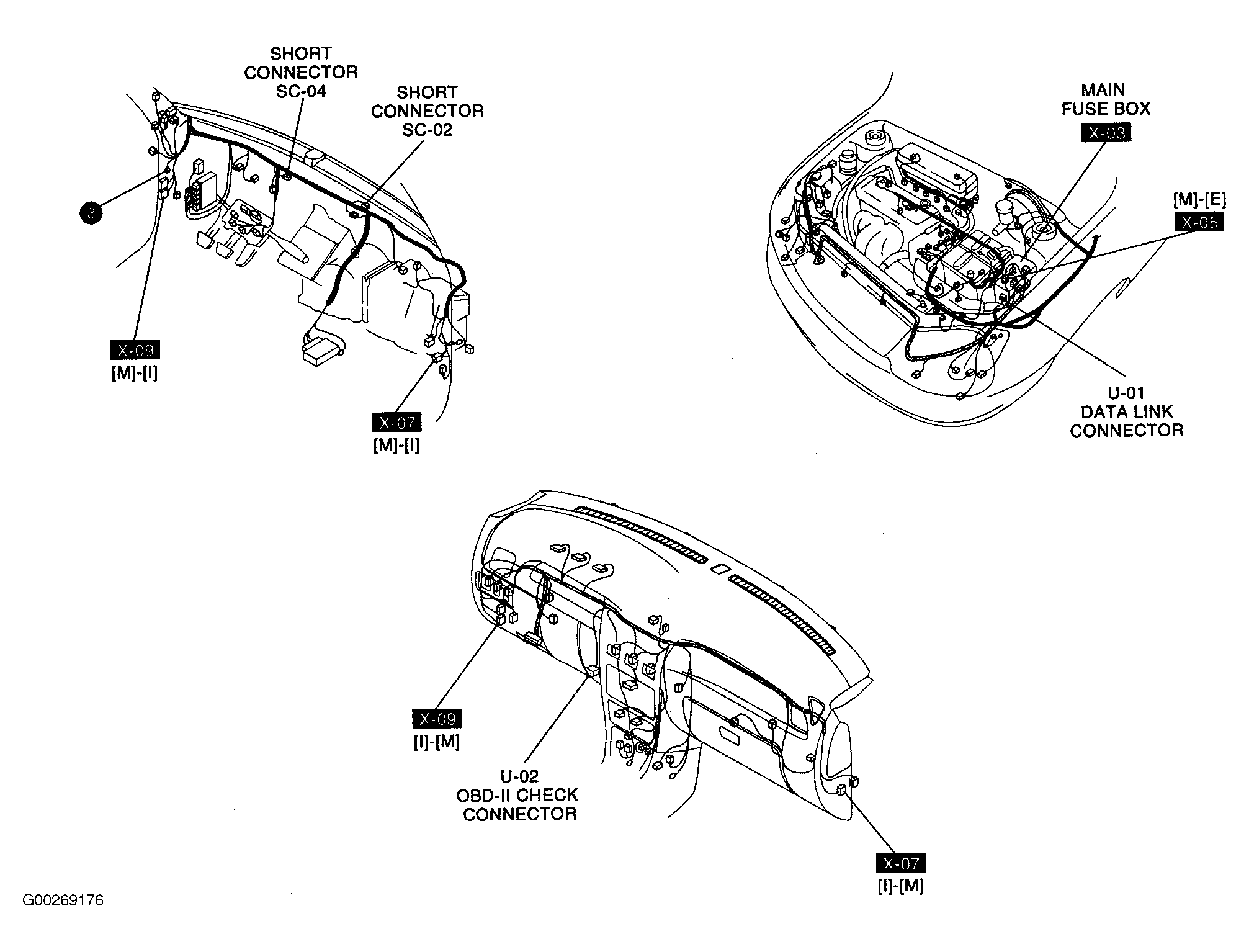

Fig 34: Data Link Connector & OBD-II Check Connector

G00269176

Courtesy of KIA MOTORS AMERICA, INC.

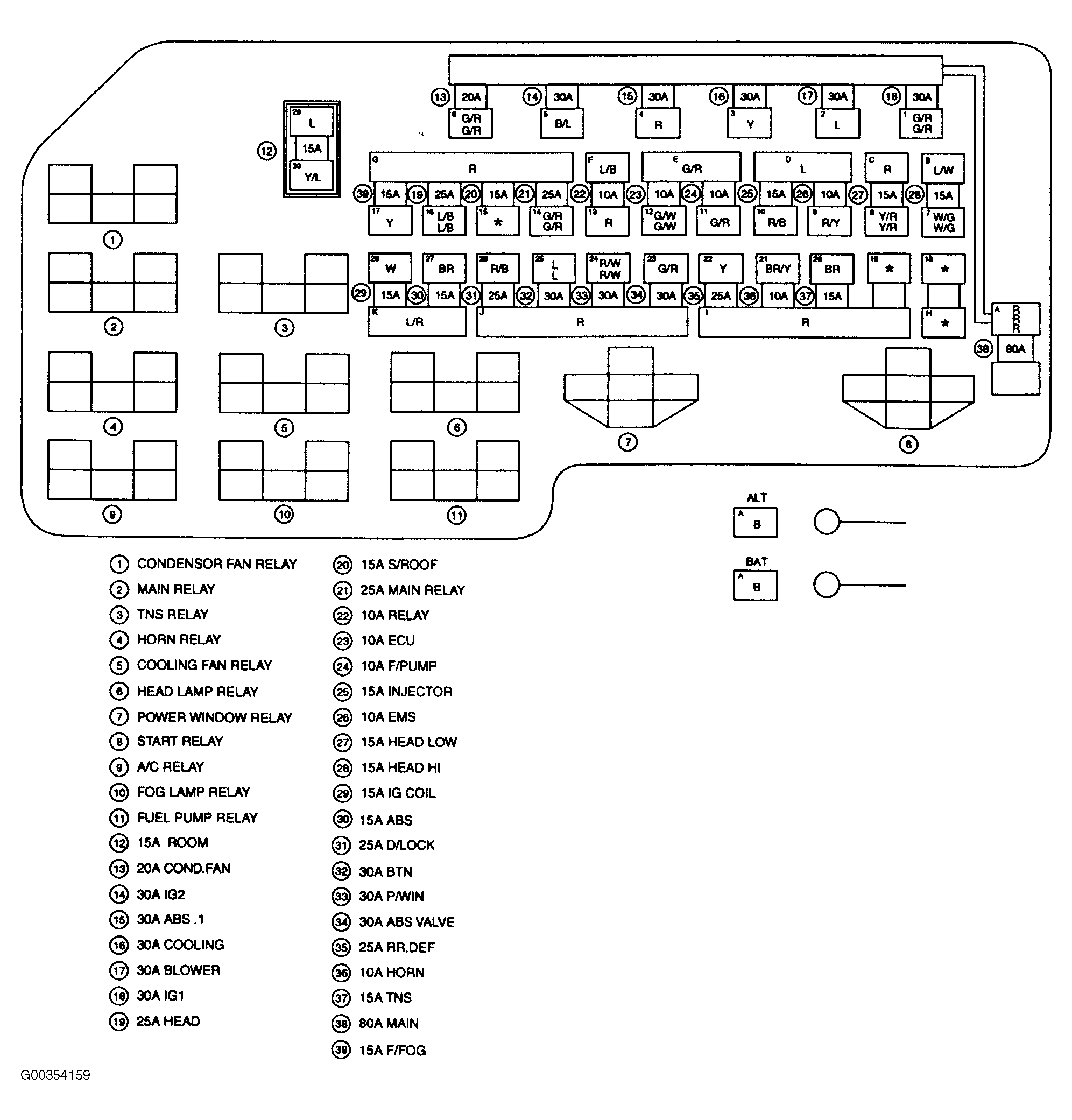

Fig 35: Engine Compartment Fuse/Relay Box

G00354159

Courtesy of KIA MOTORS AMERICA, INC.
