Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

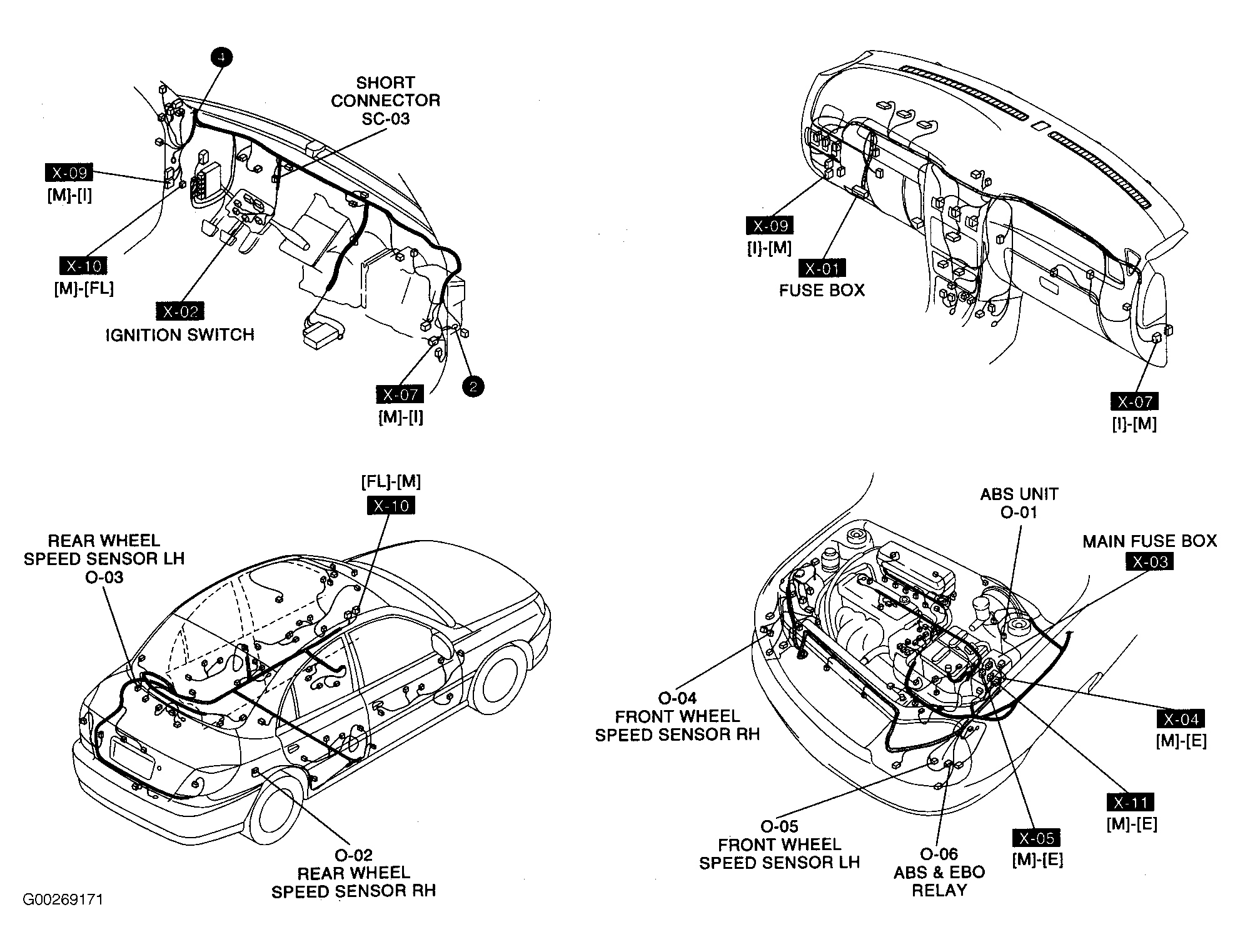

| ABS Unit | At left rear of engine compartment. See Figure. |
| Air Bag Unit | Under front of center floor console. |

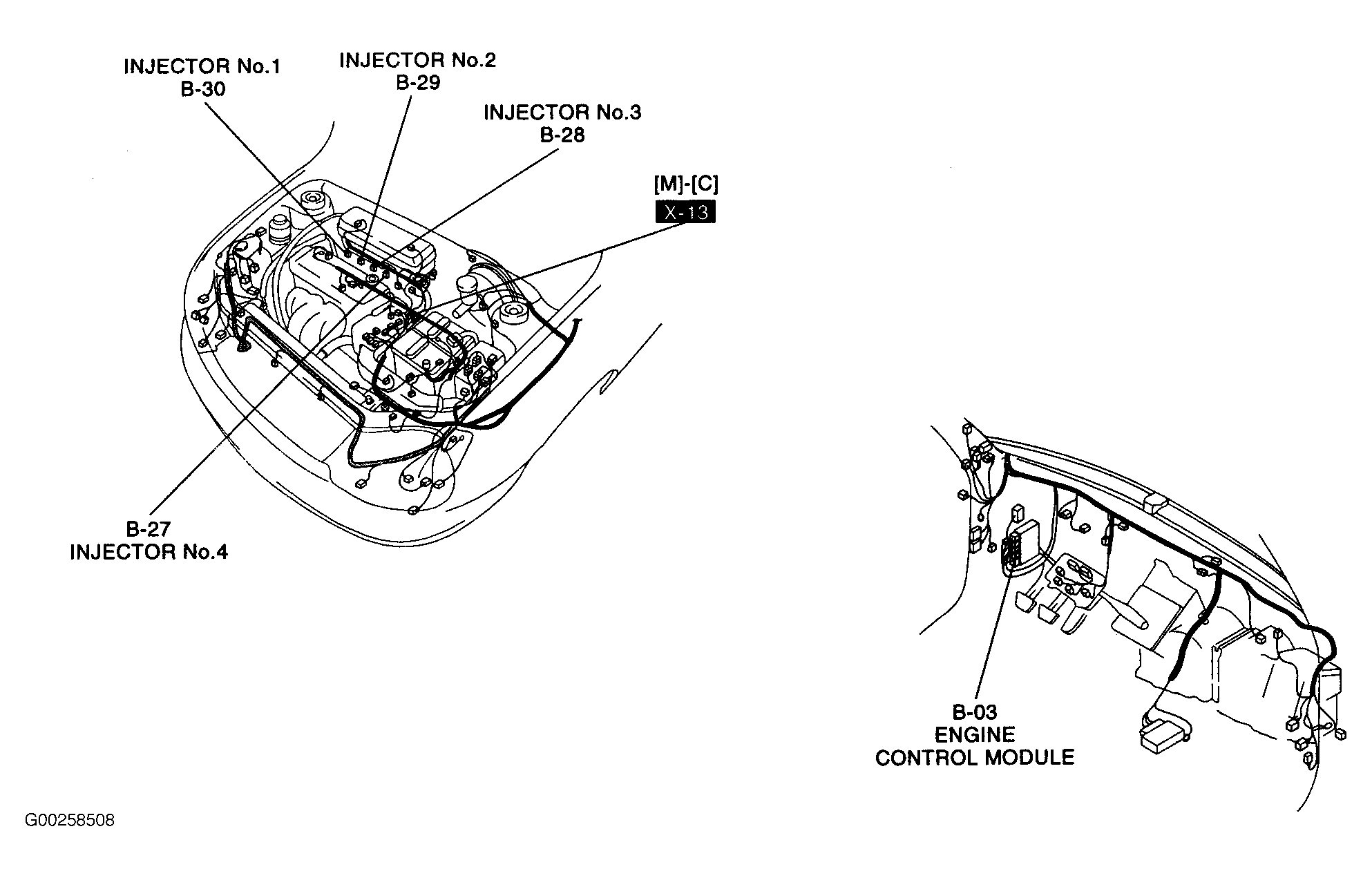

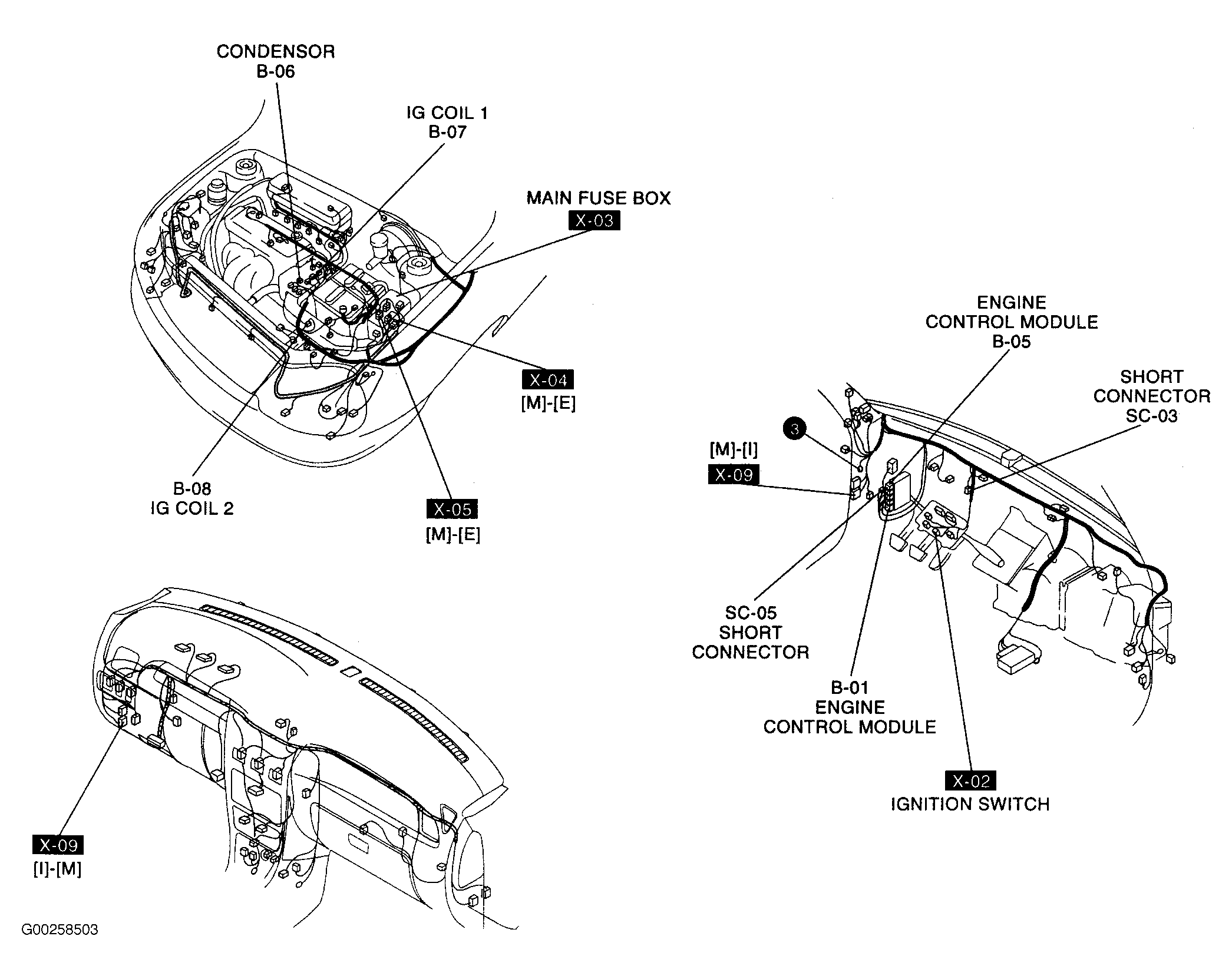

| Engine Control Module | See Figure through Figure. |
| Flasher Unit | Behind left end of dash. |

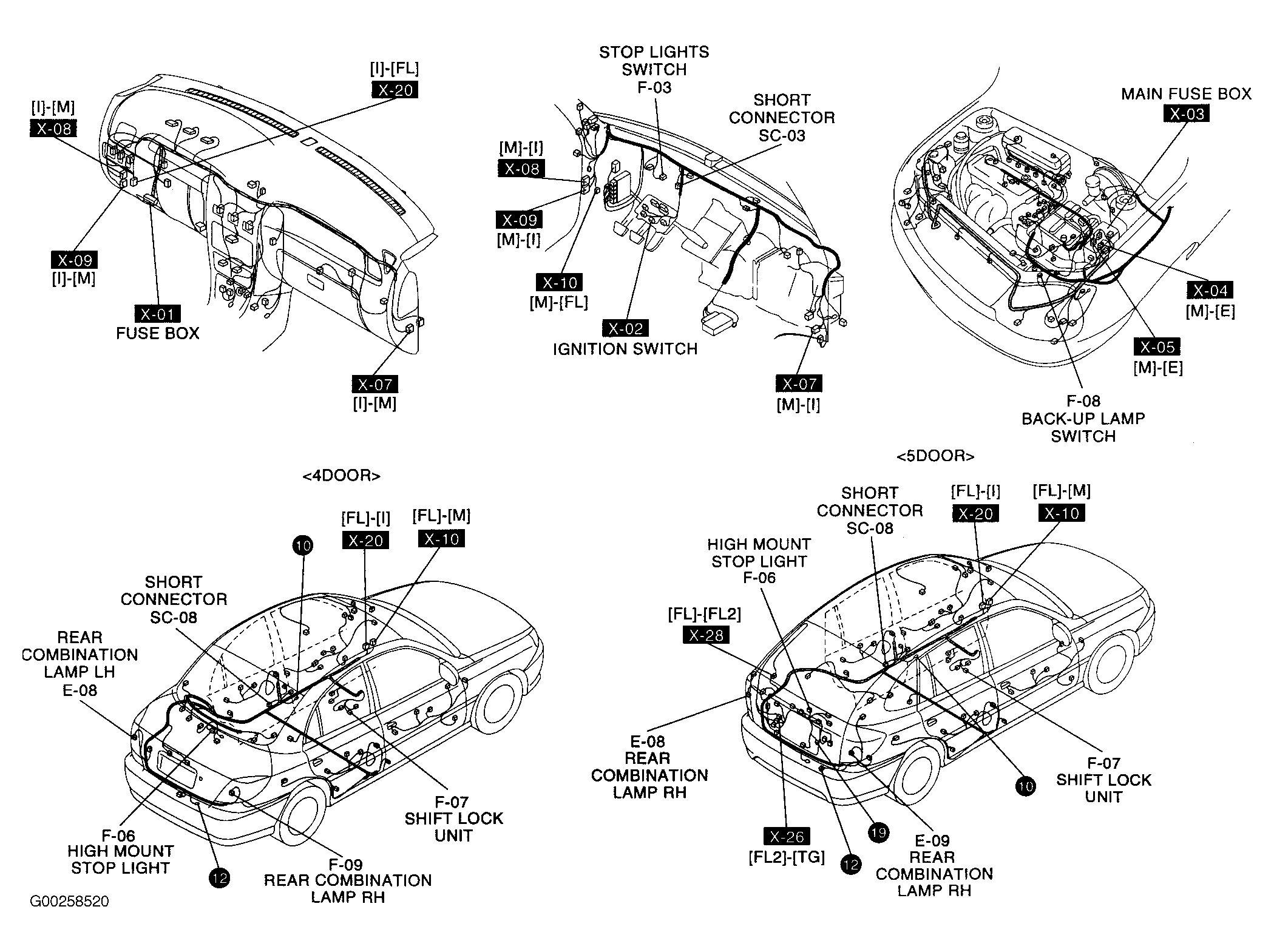

| Shift Lock Unit | At base of selector lever. See Figure. |
| Sound Warning Unit | Behind left end of dash. |

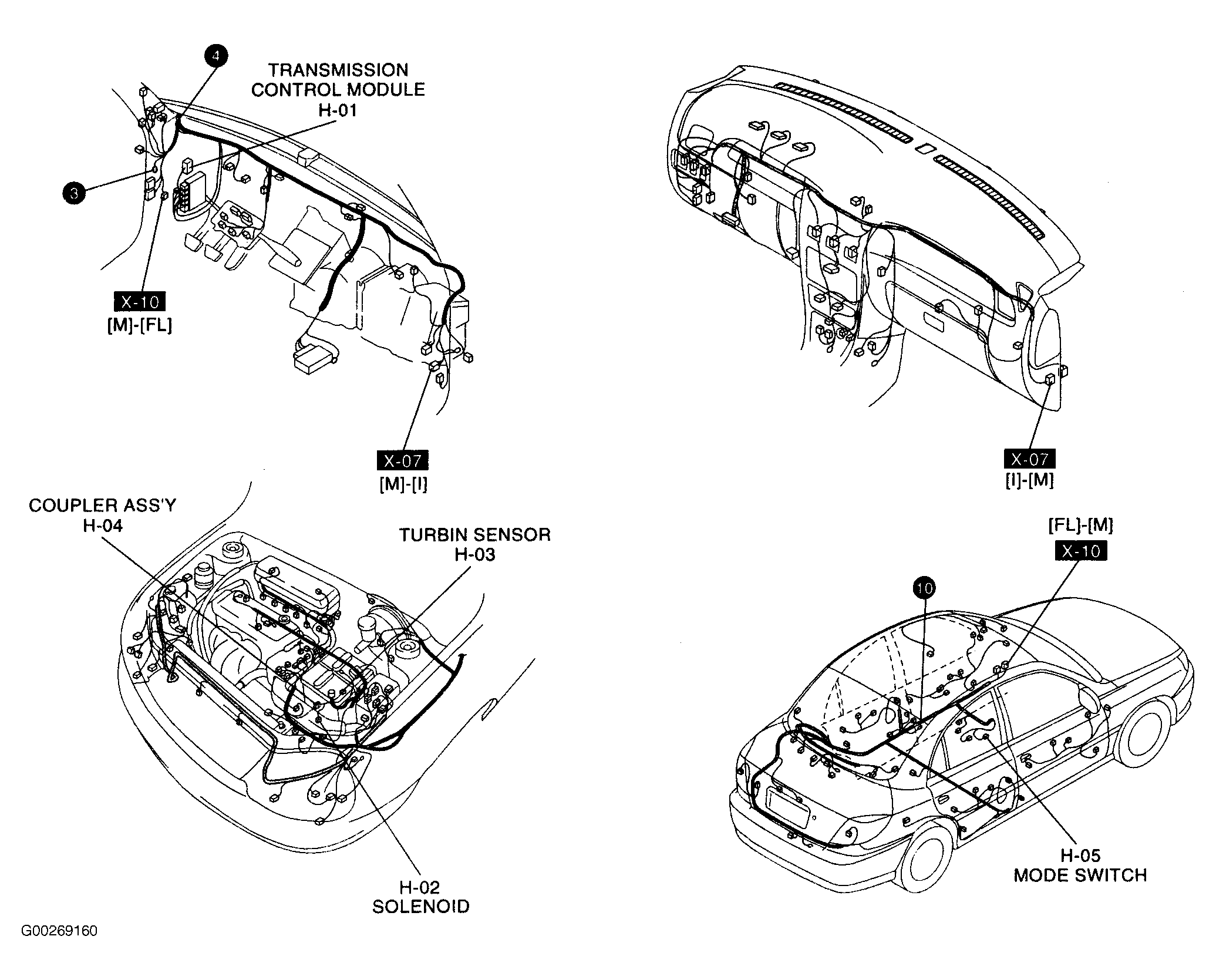

| Transmission Control Module | See Figure. |
