Emission Control System: General: Troubleshooting

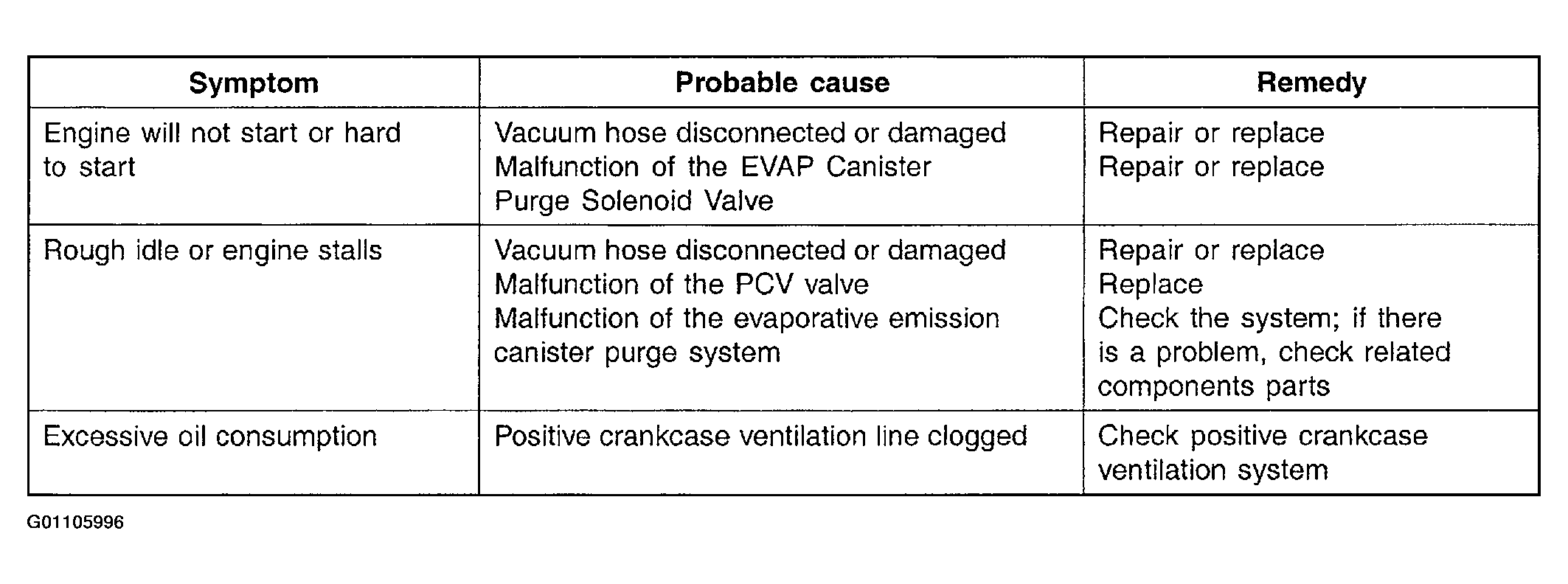

Fig 1: Troubleshooting Guide

G01105996

Courtesy of KIA MOTORS AMERICA, INC.
