Connector View

ECM Connector Views

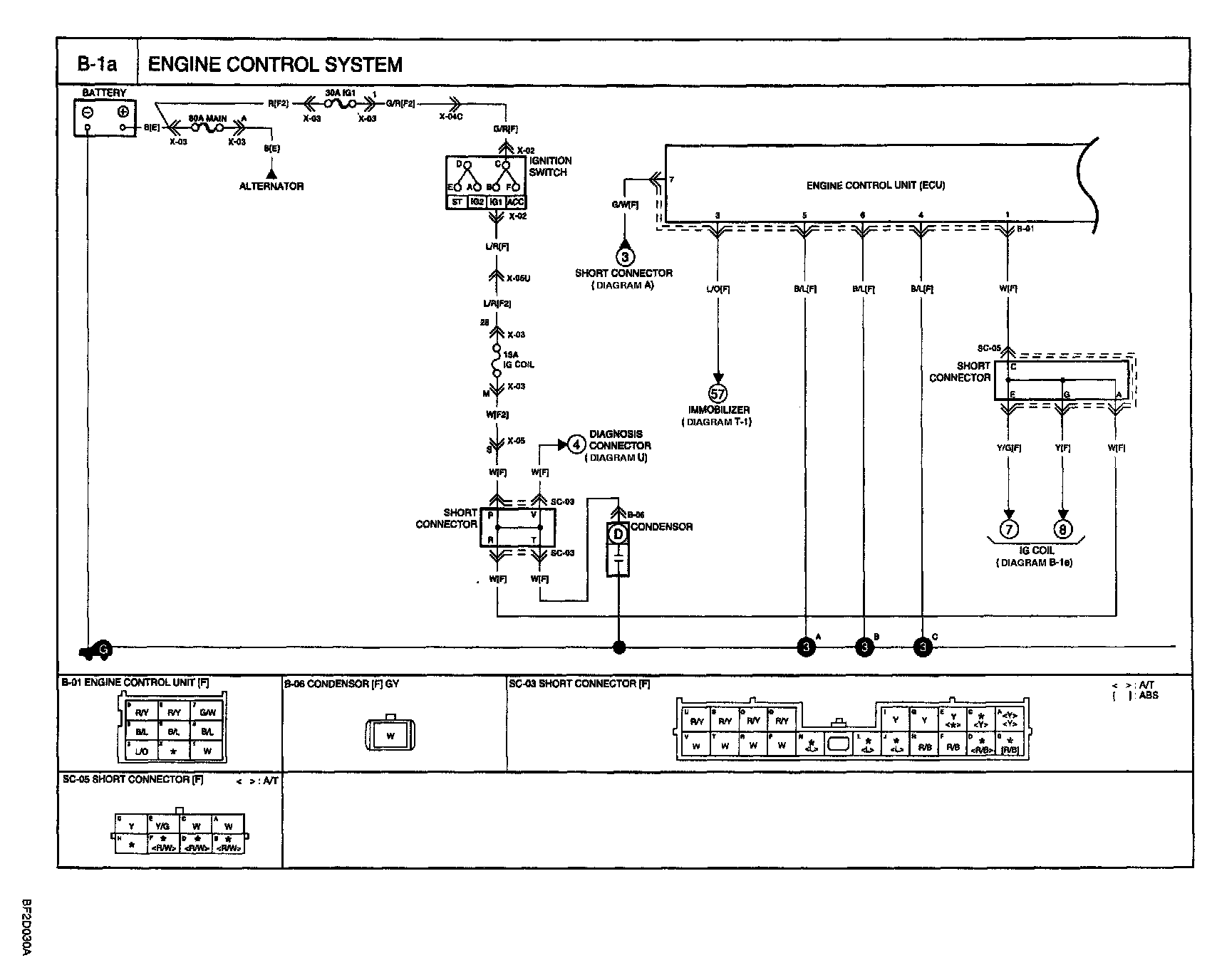

B-1a Engine Control System:

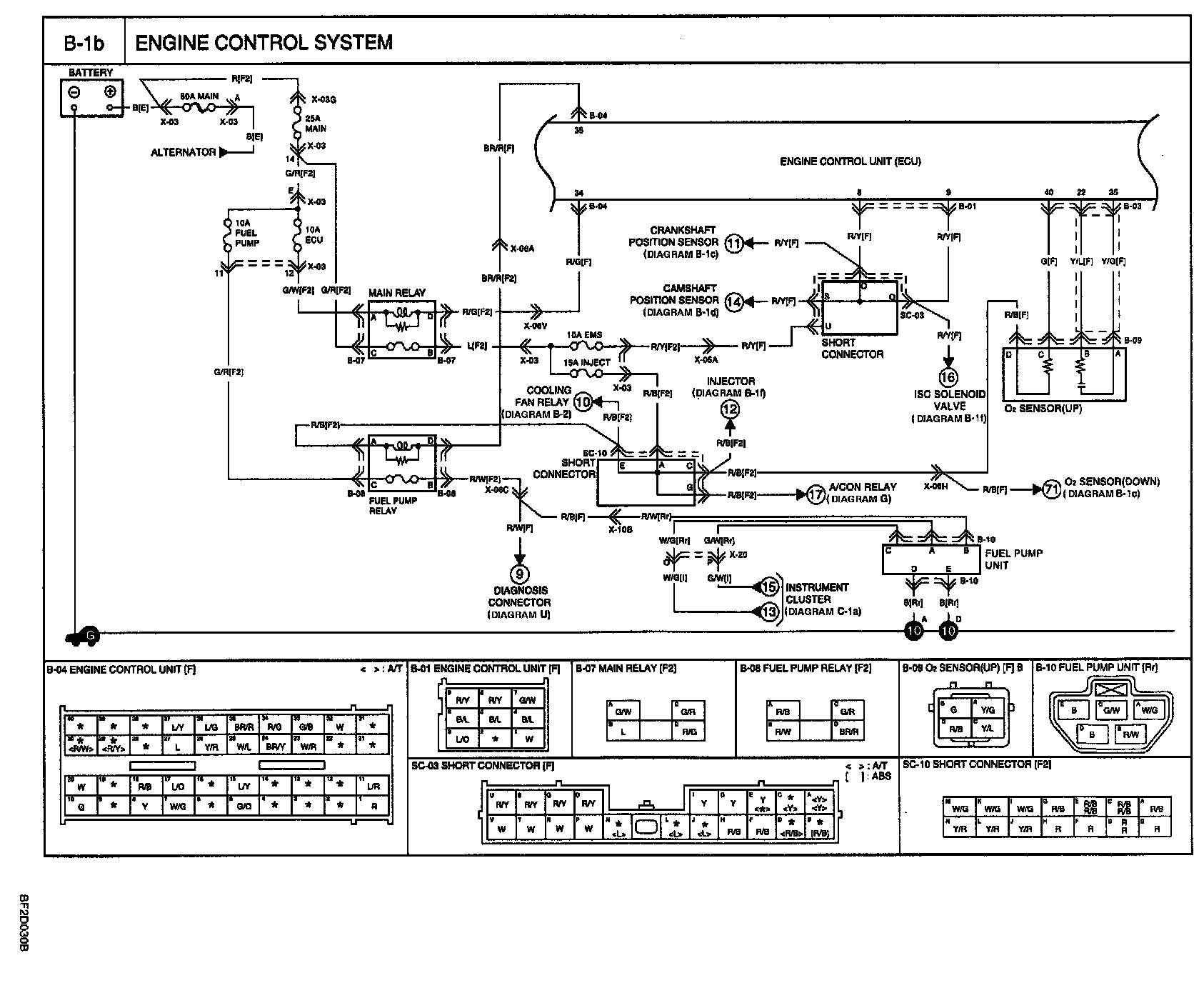

B-1b Engine Control System:

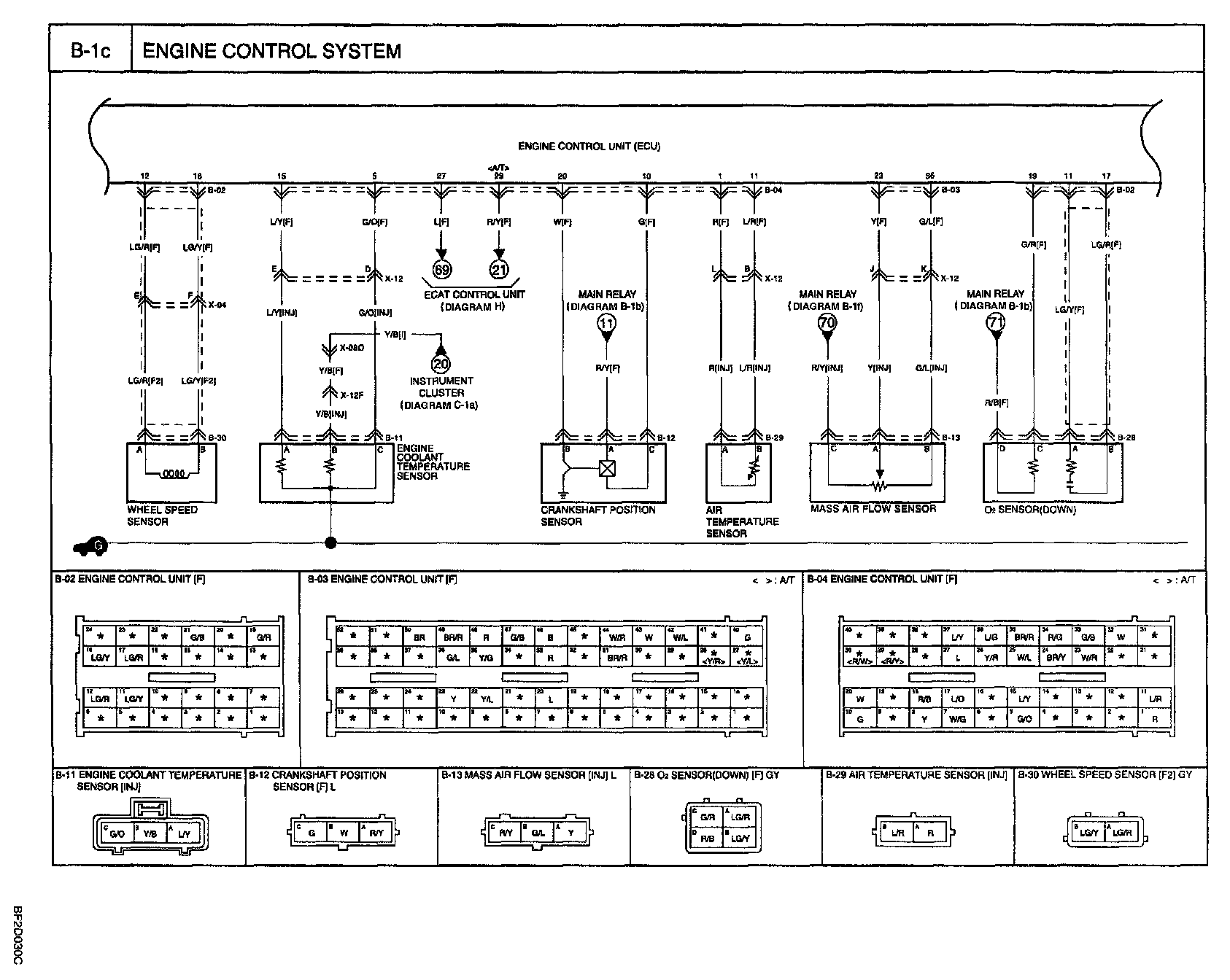

B-1c Engine Control System:

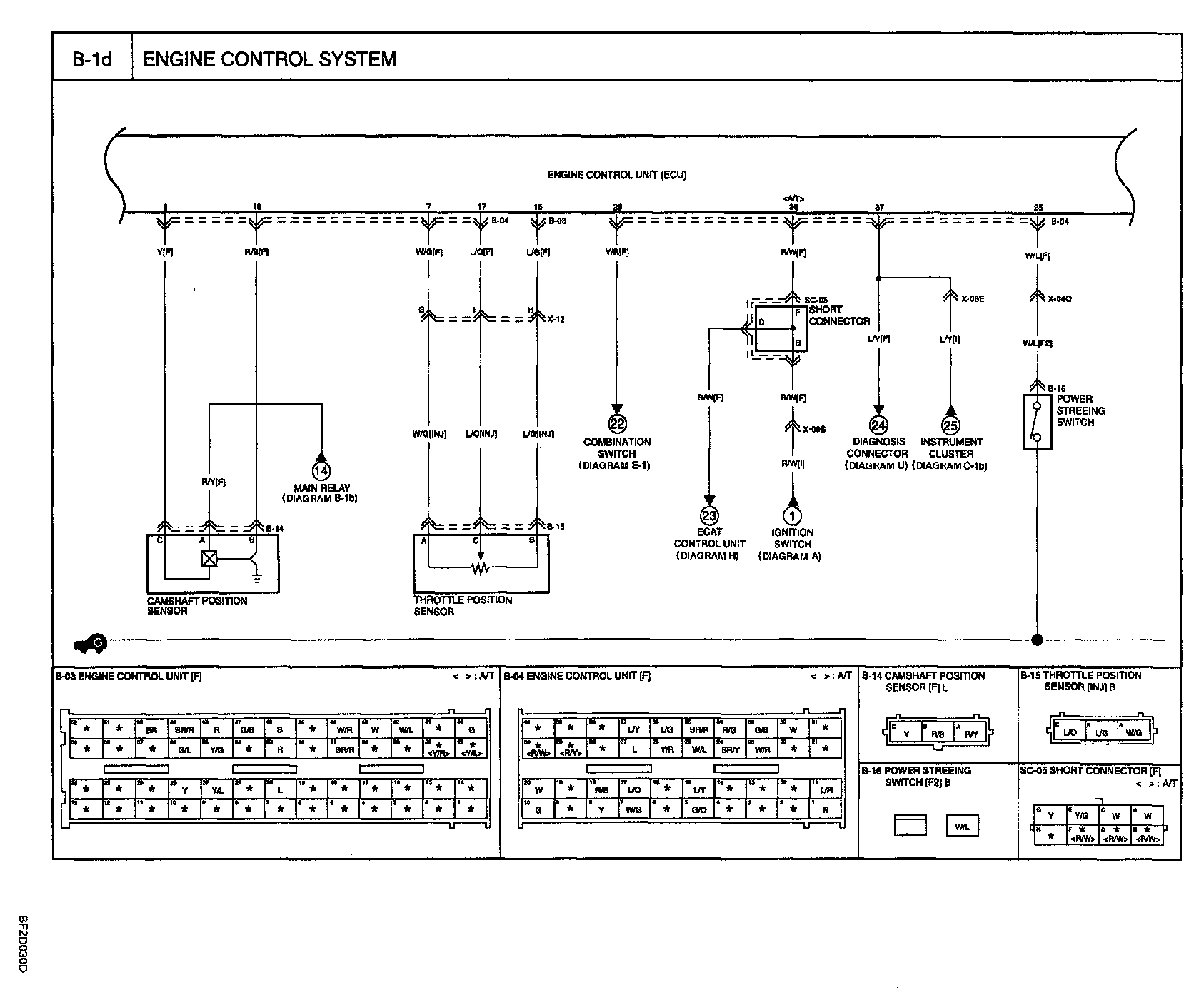

B-1d Engine Control System:

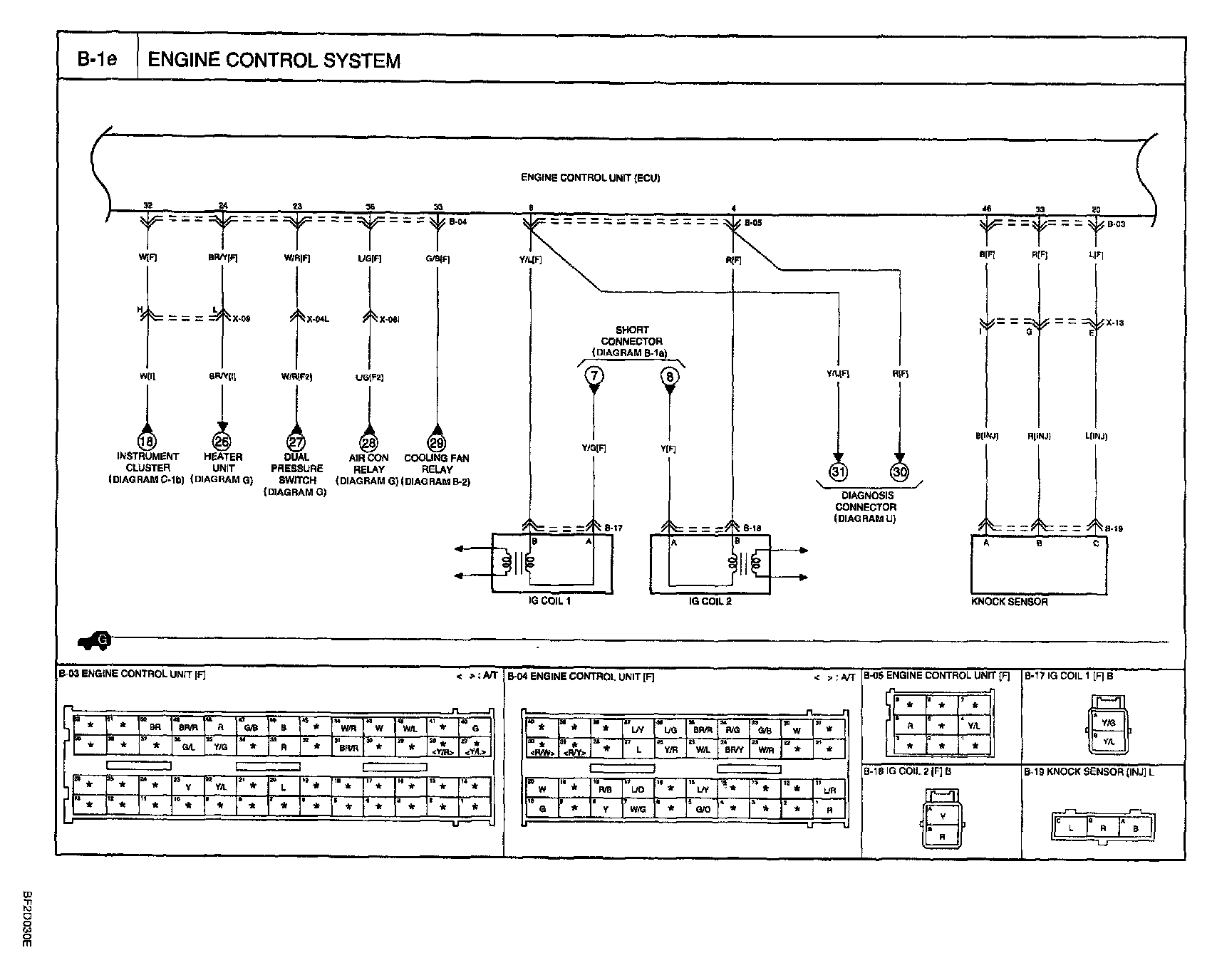

B-1e Engine Control System:

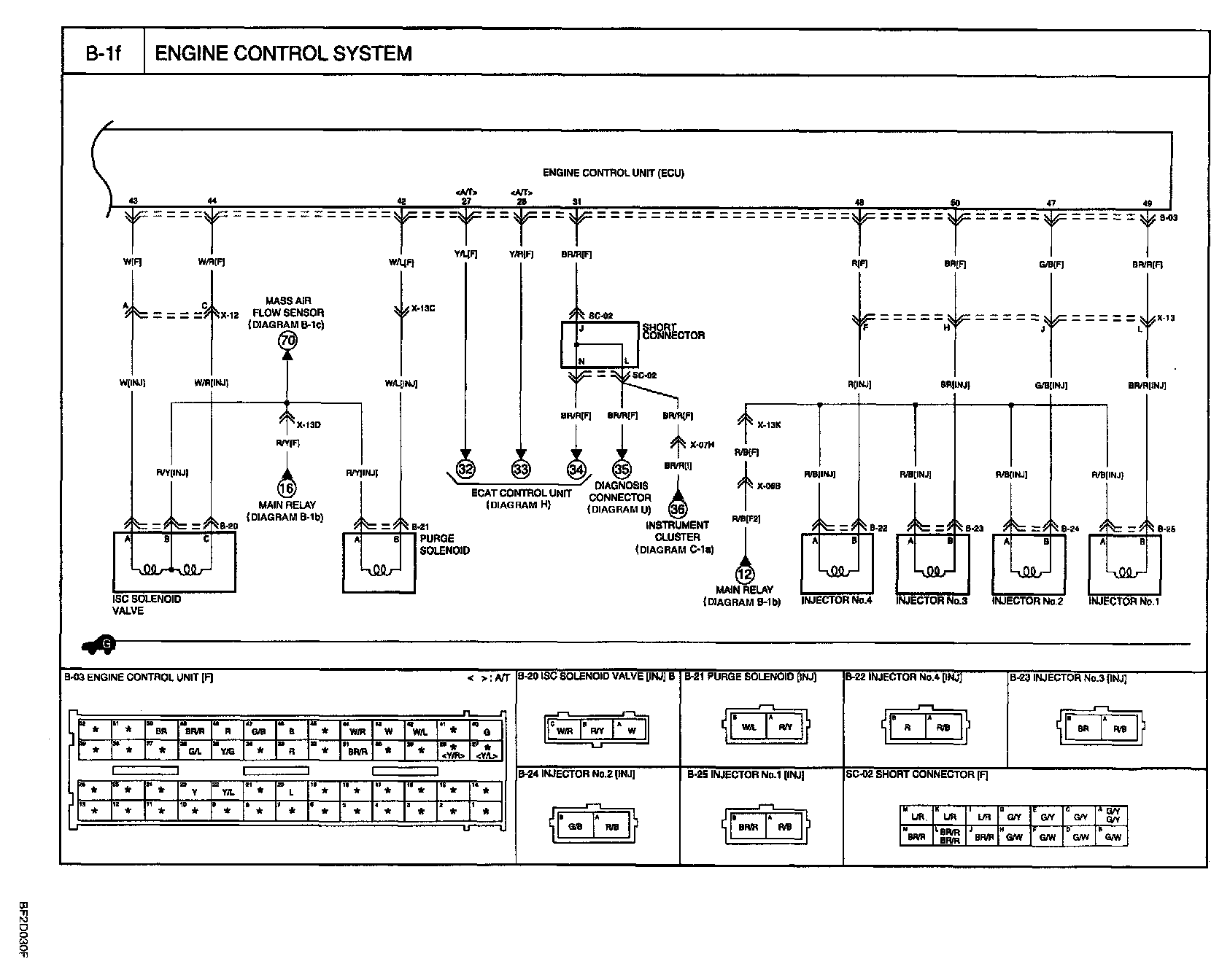

B-1f Engine Control System:
