System Specifications

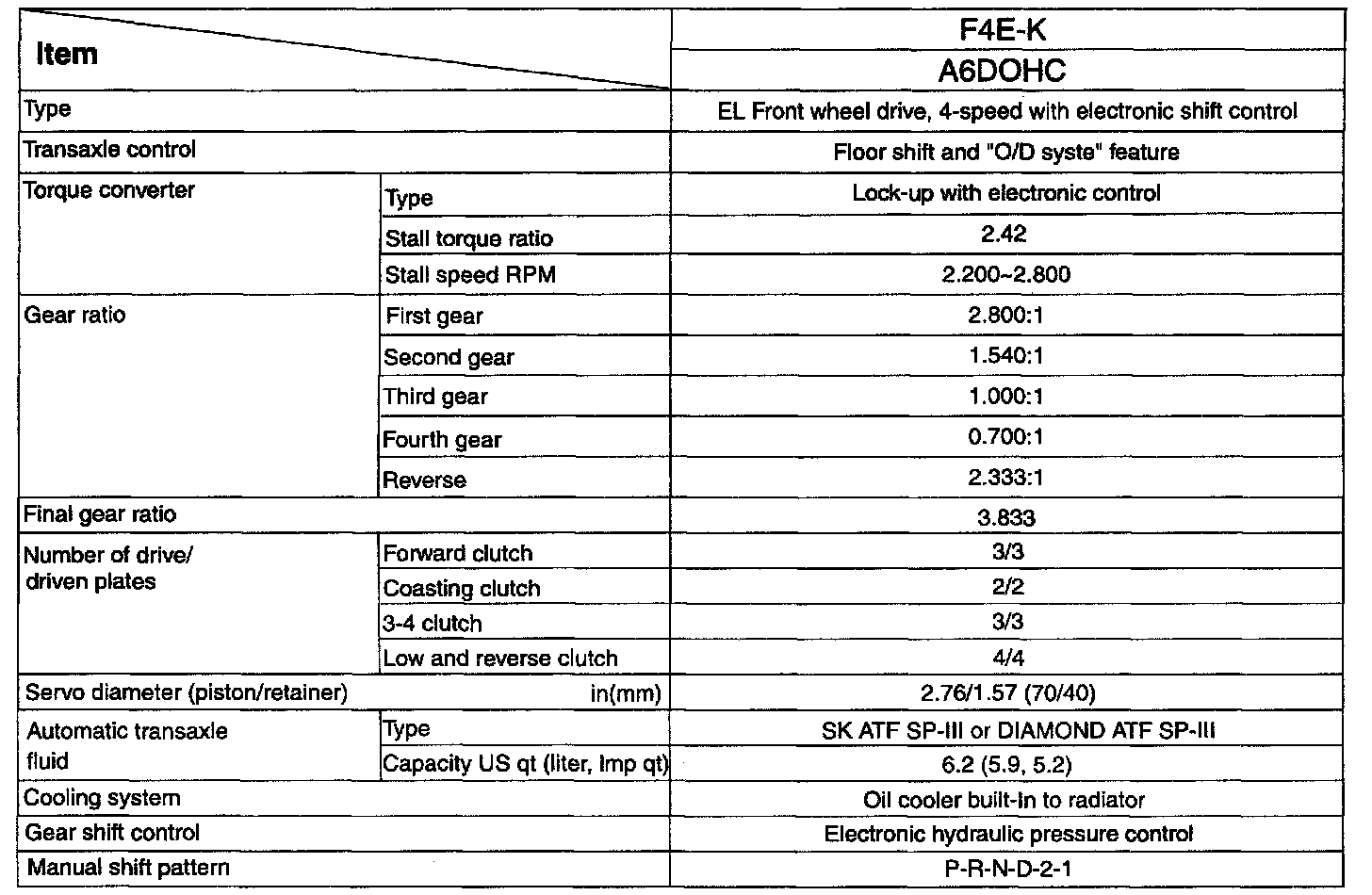

SPECIFICATIONS

TIGHTENING TORQUE
Oil pan (19 bolts) 74.4 - 94.8 inch lbs. (8.4 - 10.7 Nm, 85 - 110 kg-cm)
