Emission Control System: General: Specifications: Troubleshooting

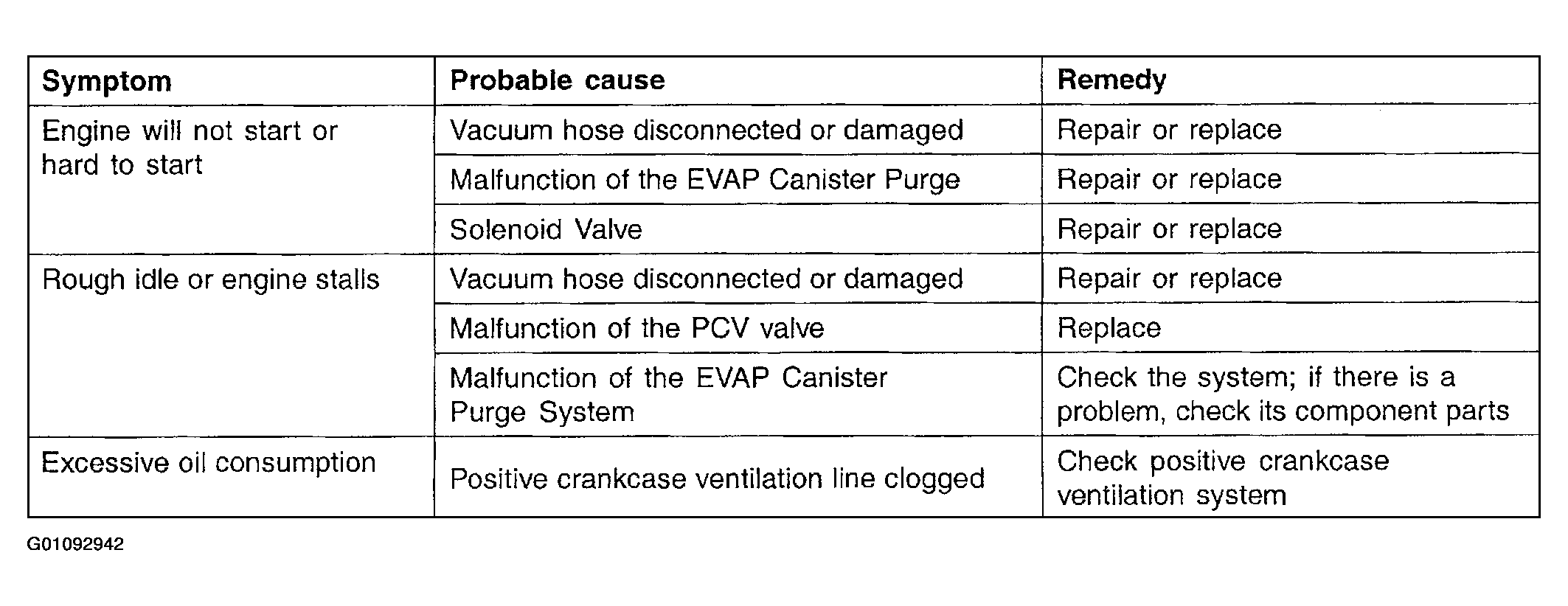

Fig 1: Emissions System Troubleshooting Chart
G01092942Courtesy of KIA MOTORS AMERICA, INC.
