At Accelerating

The A/C relay is turned OFF for 5 second when the TPS output voltage is over 3.9-4.1 V.

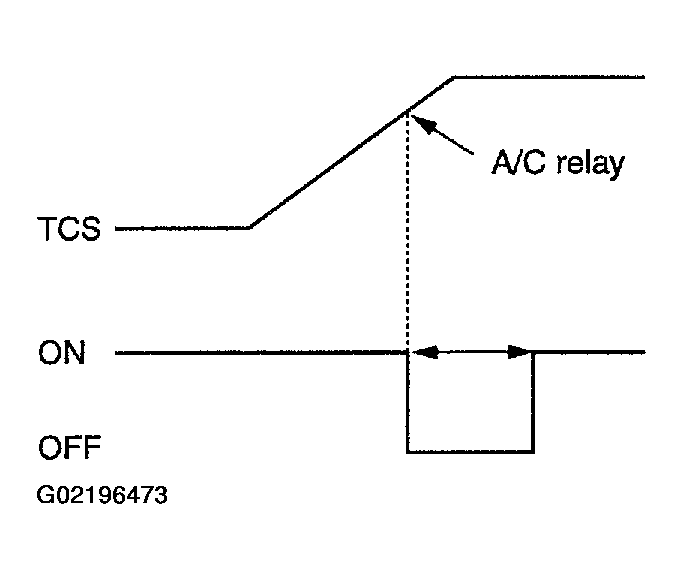

Fig 1: A/C Control At Acceleration
G02196473Courtesy of KIA MOTORS AMERICA, INC.
