A/C Relay Control: Notes

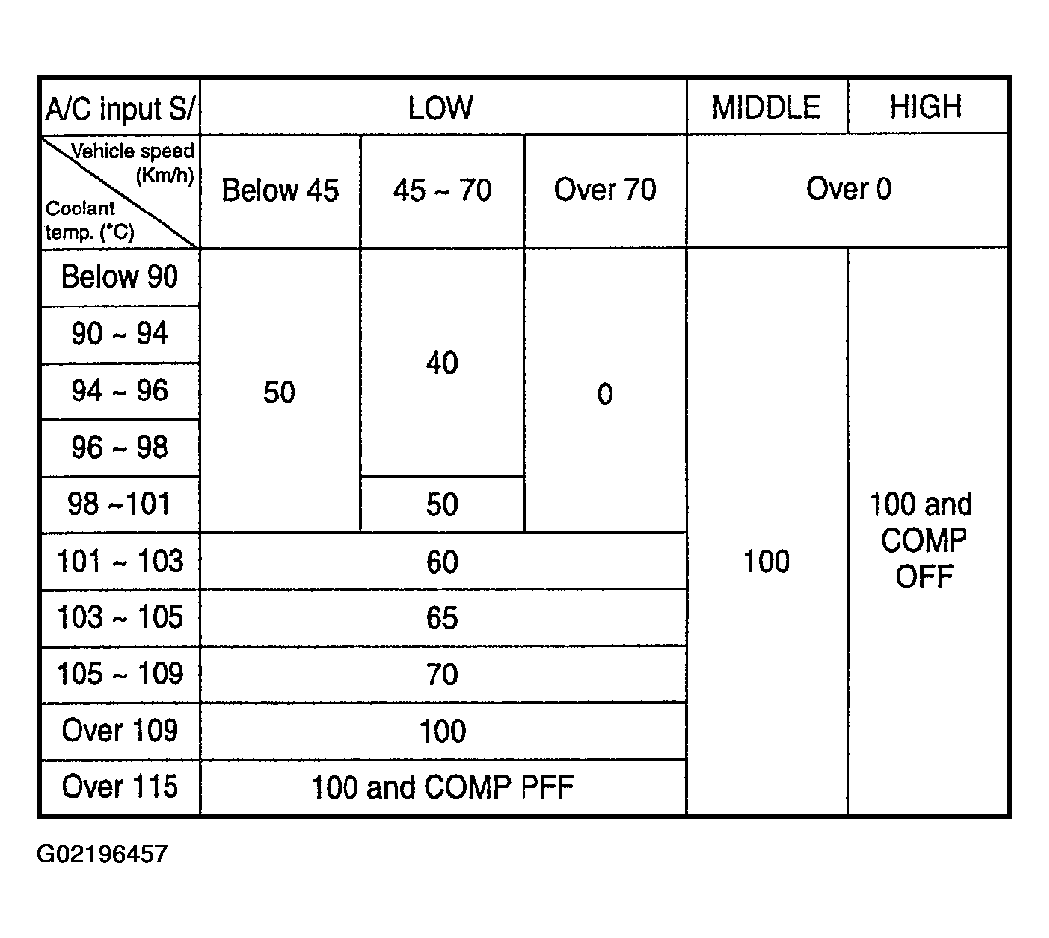

Fig 1: Compressor Control Chart

G02196457

Courtesy of KIA MOTORS AMERICA, INC.
