MFI Control System: Specifications: Notes

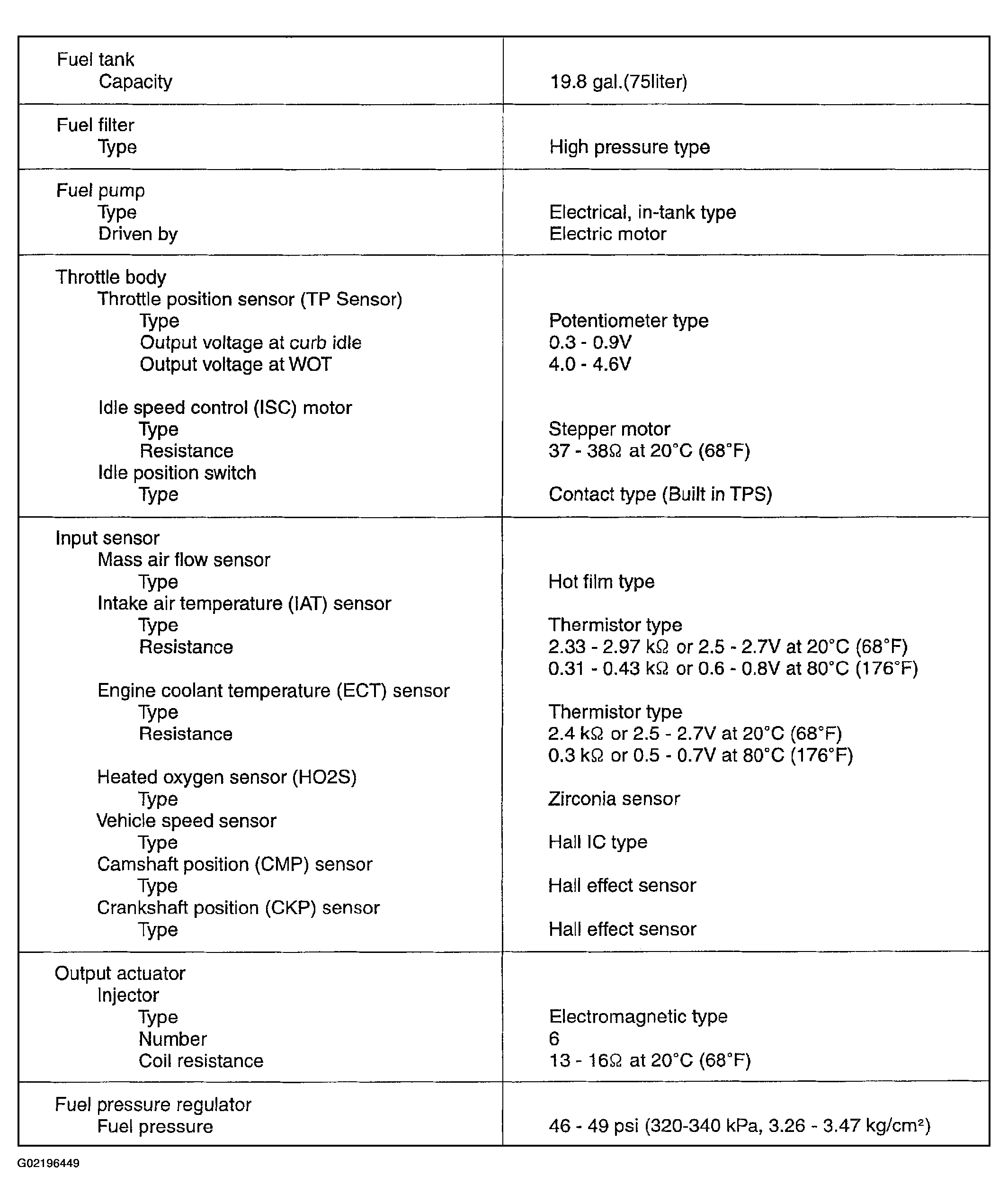

Fig 1: MFI System Specifications

G02196449

Courtesy of KIA MOTORS AMERICA, INC.
