Using Hi-Scan

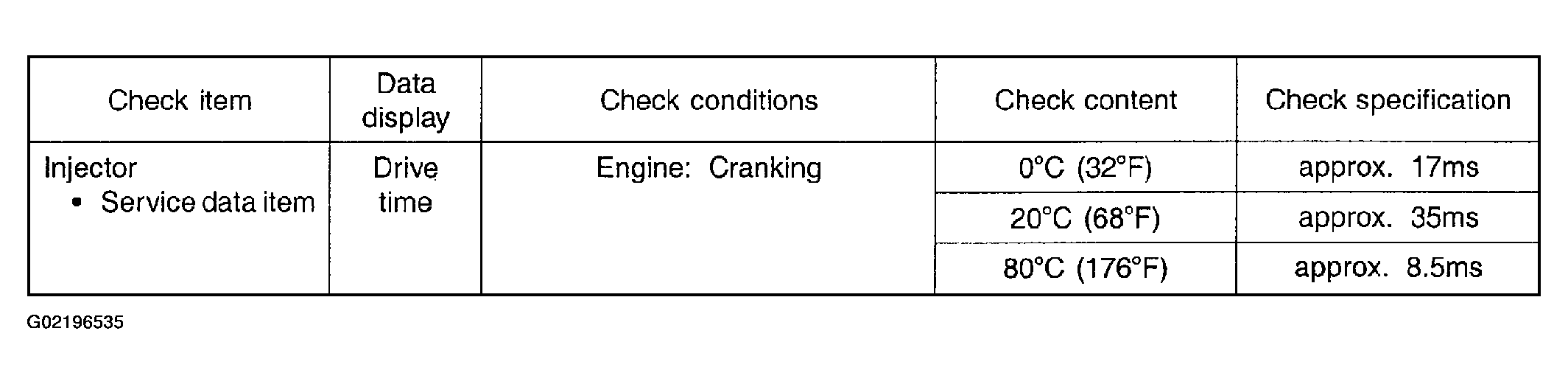

Fig 1: Crank Testing Chart

Courtesy of KIA MOTORS AMERICA, INC.

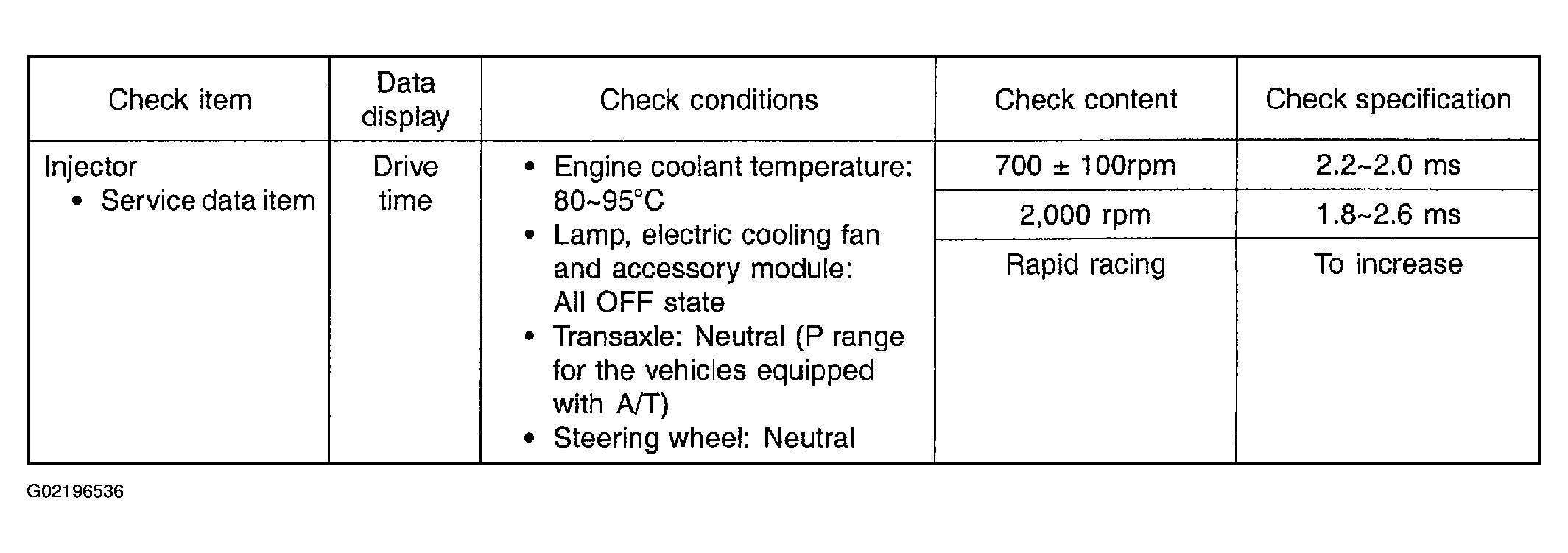

Fig 2: Run Testing Chart

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The injector driving time is for the condition that the supply voltage is 11V and the cranking speed is less than 250 RPM.
When engine coolant temperature is lower than 0°C (32°F), the ECM fires all the six cylinders simultaneously.
When the vehicle is new (within initial operation of about 500 km (300 miles)), the injector driving time may be about 10% longer.

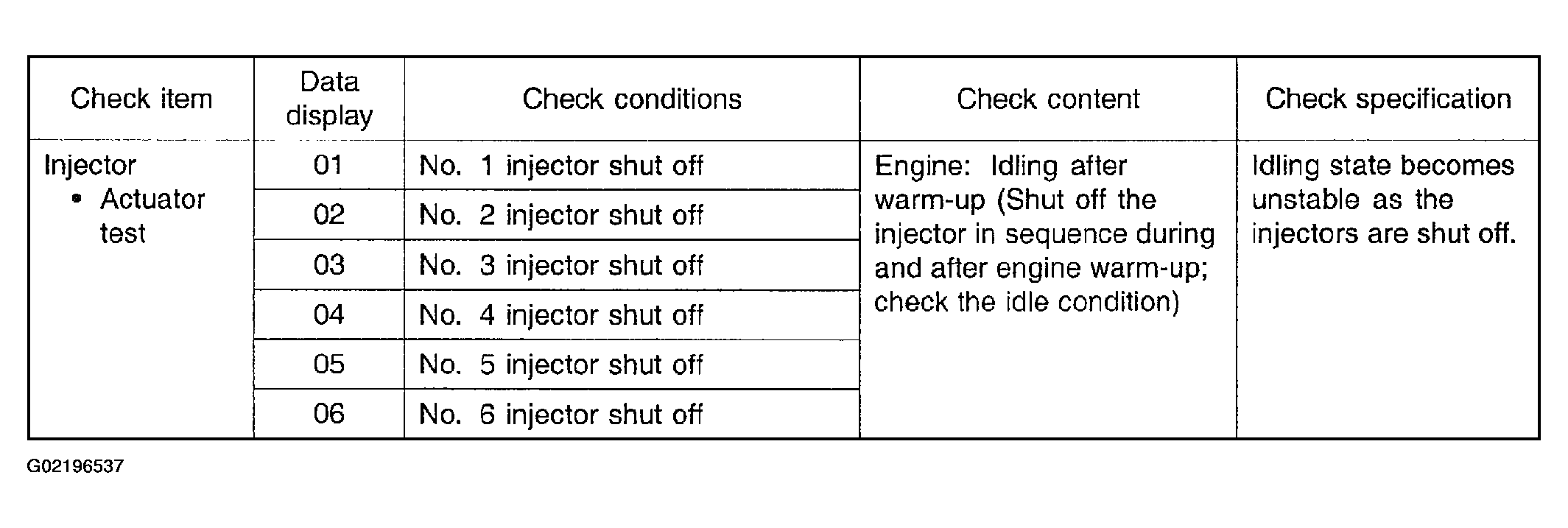

Fig 3: Actuator Test Chart

Courtesy of KIA MOTORS AMERICA, INC.
