Component Description

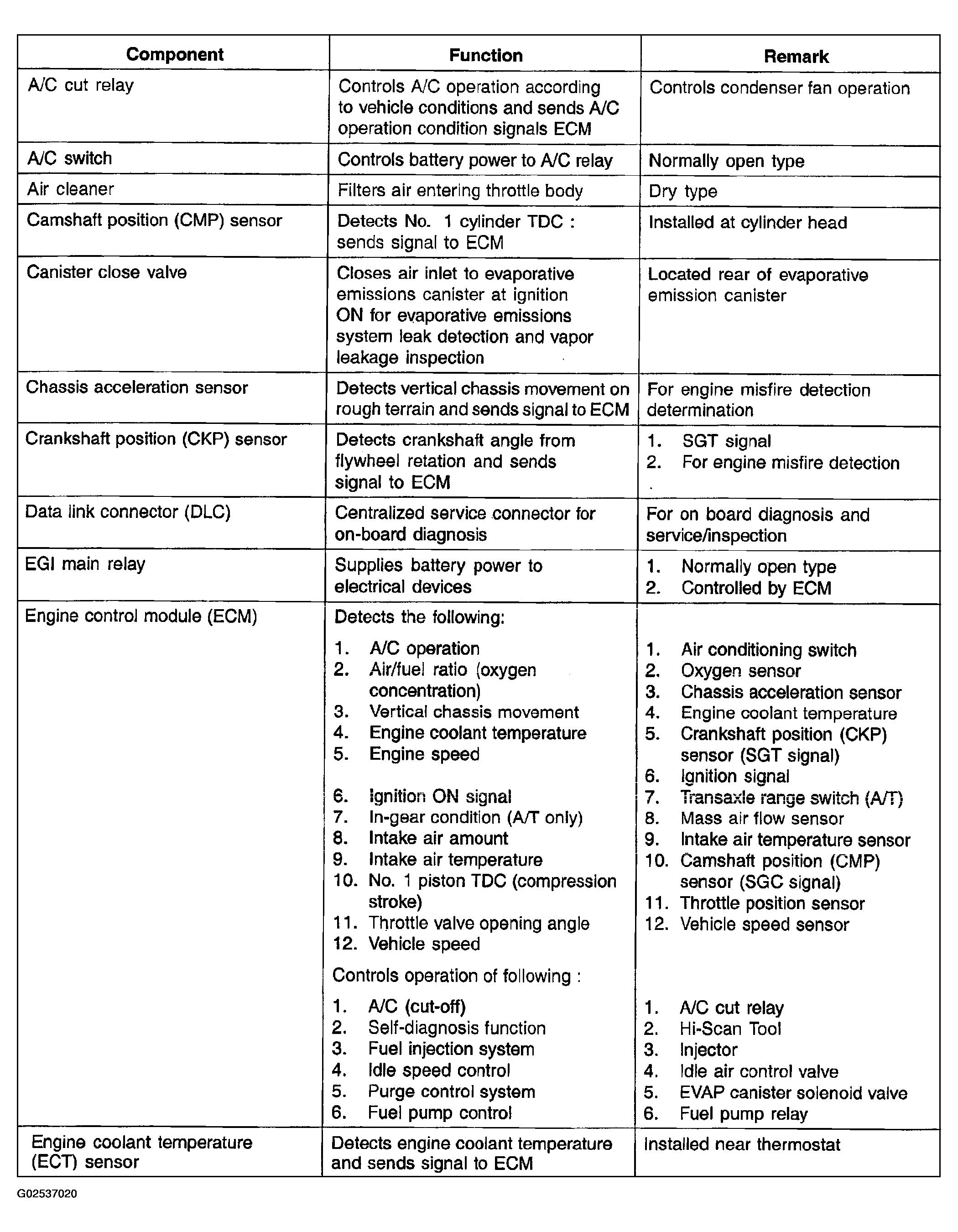

Fig 1: Component Description (1 Of 2)
G02537020Courtesy of KIA MOTORS AMERICA, INC.

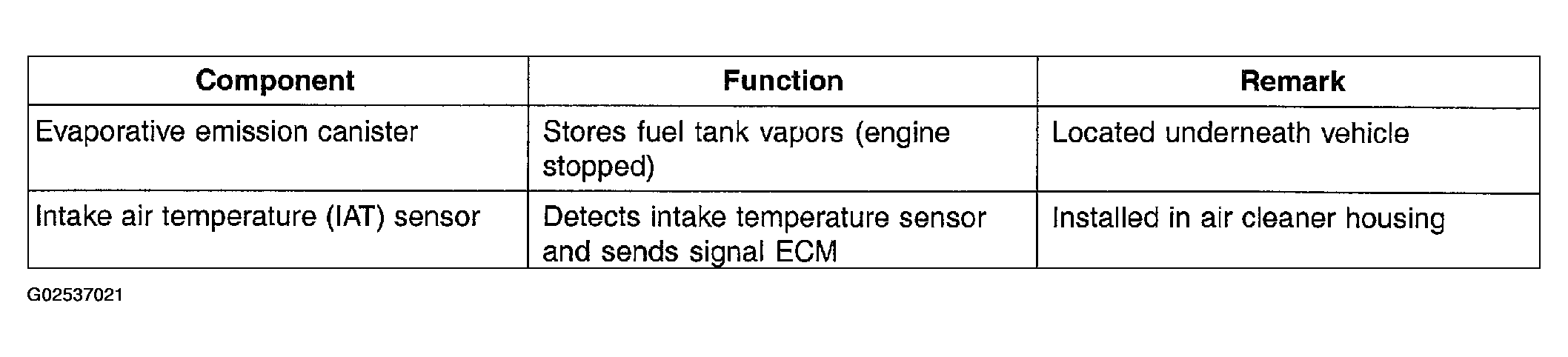

Fig 2: Component Description (2 Of 2)
G02537021Courtesy of KIA MOTORS AMERICA, INC.
