MFI Control System Components: Components

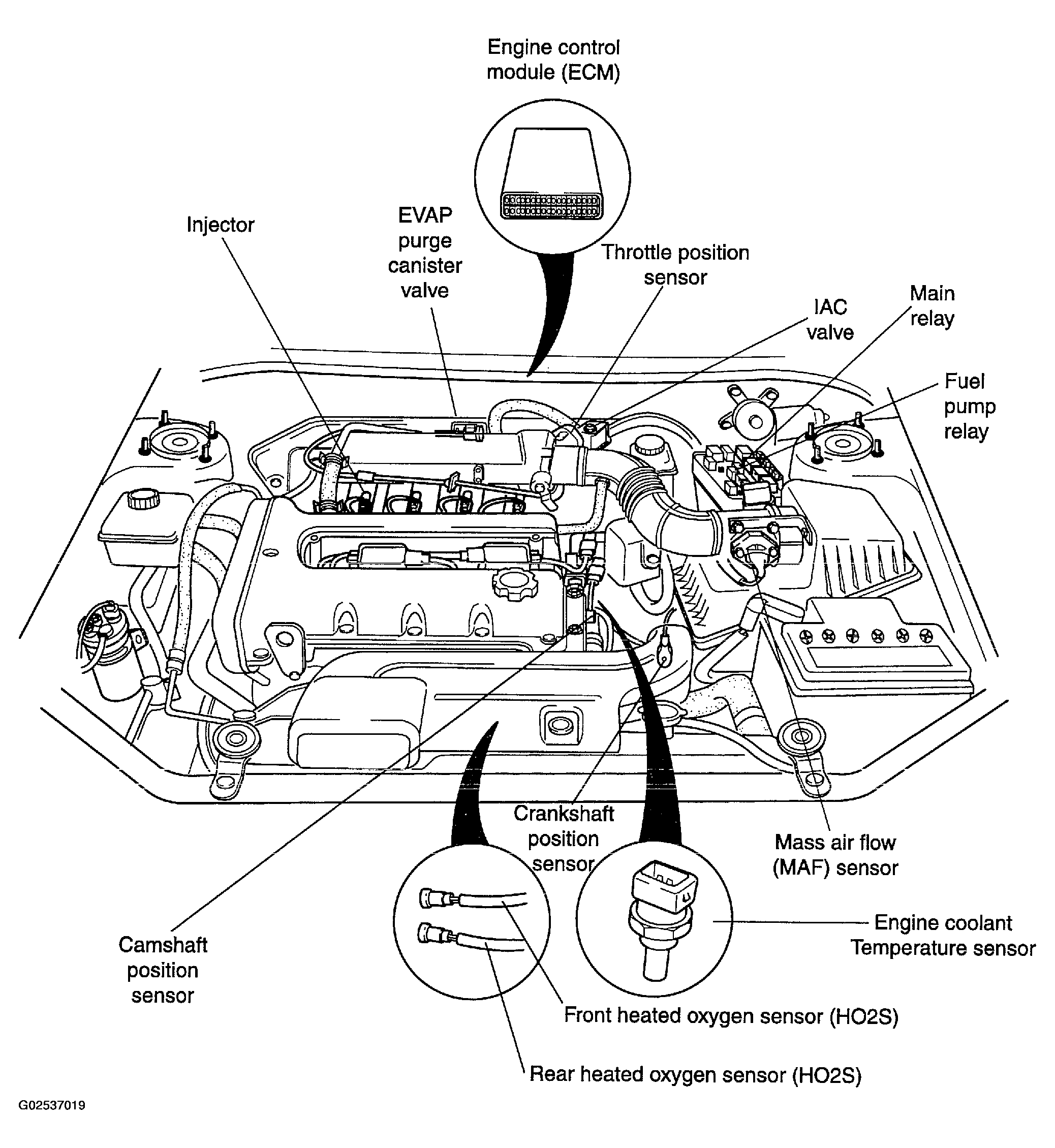

Fig 1: Identifying MFI Control System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
