Crankshaft Position Sensor: Removal

  1. Disconnect negative battery cable.
  2. Disconnect wire harness.
  3. Remove mounting bolt.
  4. Remove sensor from transmission cover.

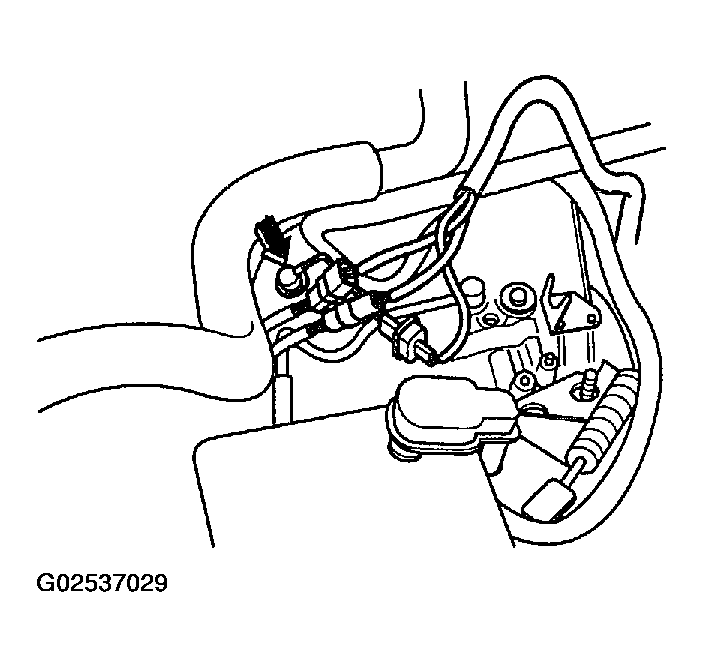

    Fig 1: Removing Sensor From Transmission Cover
    G02537029Courtesy of KIA MOTORS AMERICA, INC.
