Engine Control Module (ECM): Removal

  1. Remove three bolts retaining ECM to floorboard.
  2. Remove ECM from mounting brackets.
  3. Disconnect ECM connector.

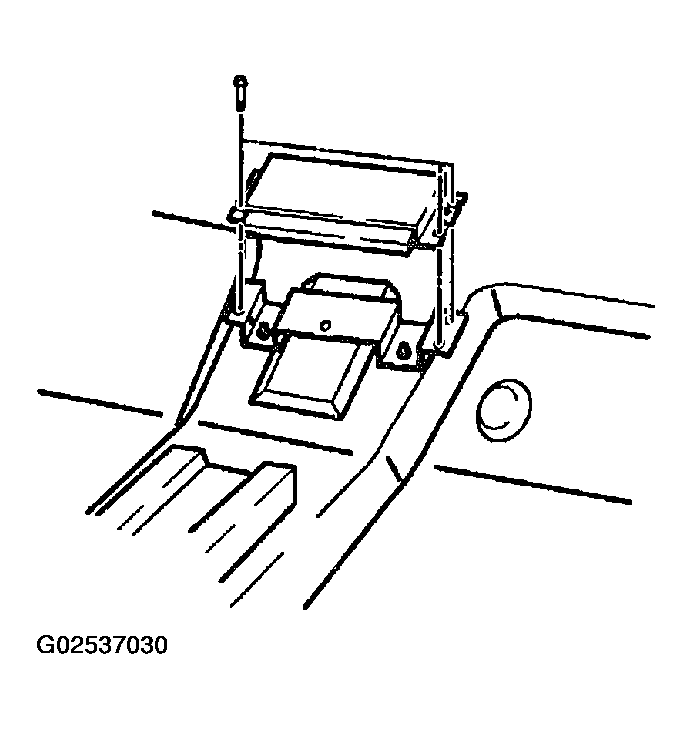

    Fig 1: Removing ECM From Mounting Brackets
    G02537030Courtesy of KIA MOTORS AMERICA, INC.
