Main Relay: Inspection

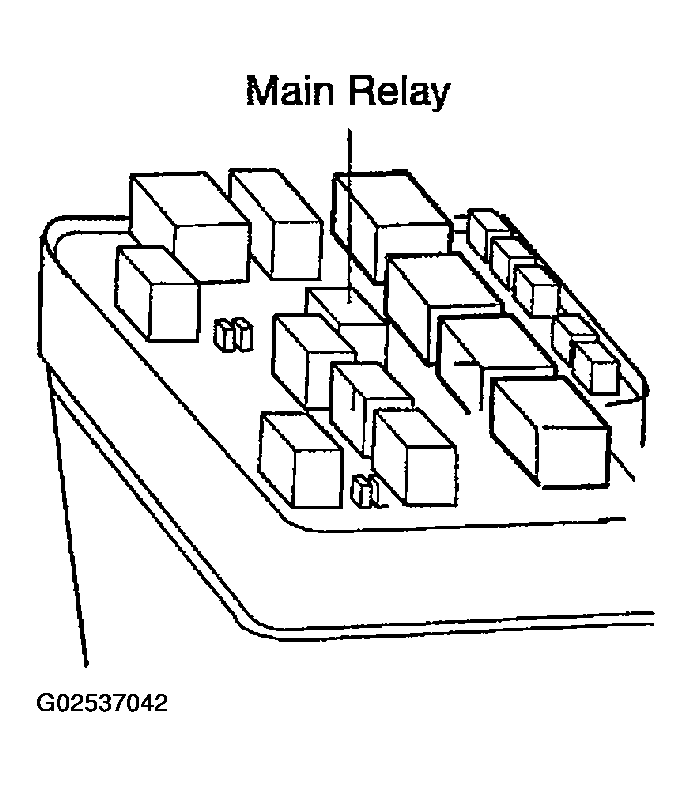

- Remove cover from main fuse block.
- Place a finger on main relay.
- Verify that relay clicks when ignition switch is turned ON.
Courtesy of KIA MOTORS AMERICA, INC.
- Verify that main relay clicks when ignition switch is turned ON and OFF.

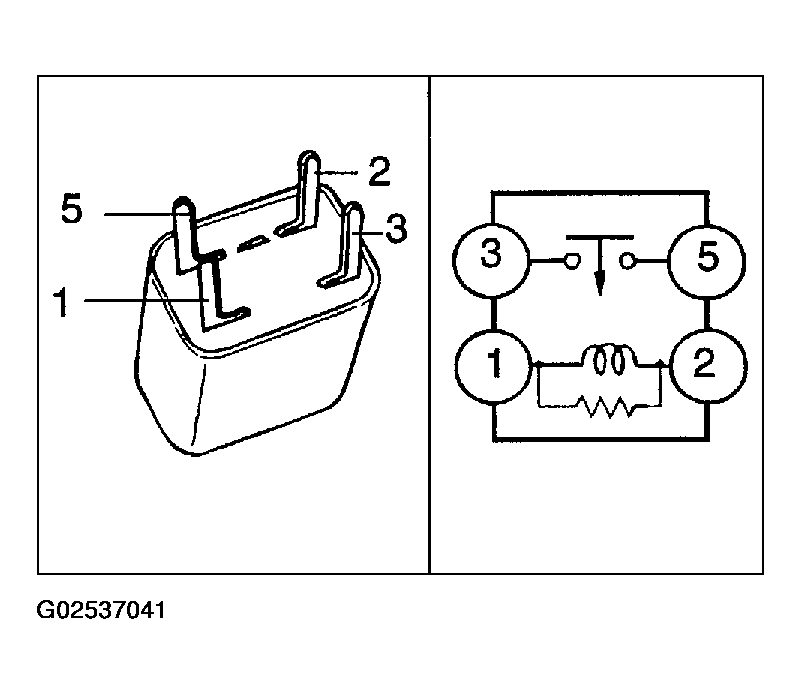

- Apply battery voltage (B+) to terminal 3 and ground terminal 5 of the relay.
- Check continuity of relay as shown.
MAIN RELAY CONTINUITY
| Terminals |
B+ applied |
B+ not applied |
| 3 - 5 |
Continuity |
No continuity |
- If not as specified, replace main relay.
- Turn ignition switch OFF.
- Replace the cover on main fuse block.
