Diagnostic Symptom Index: Notes

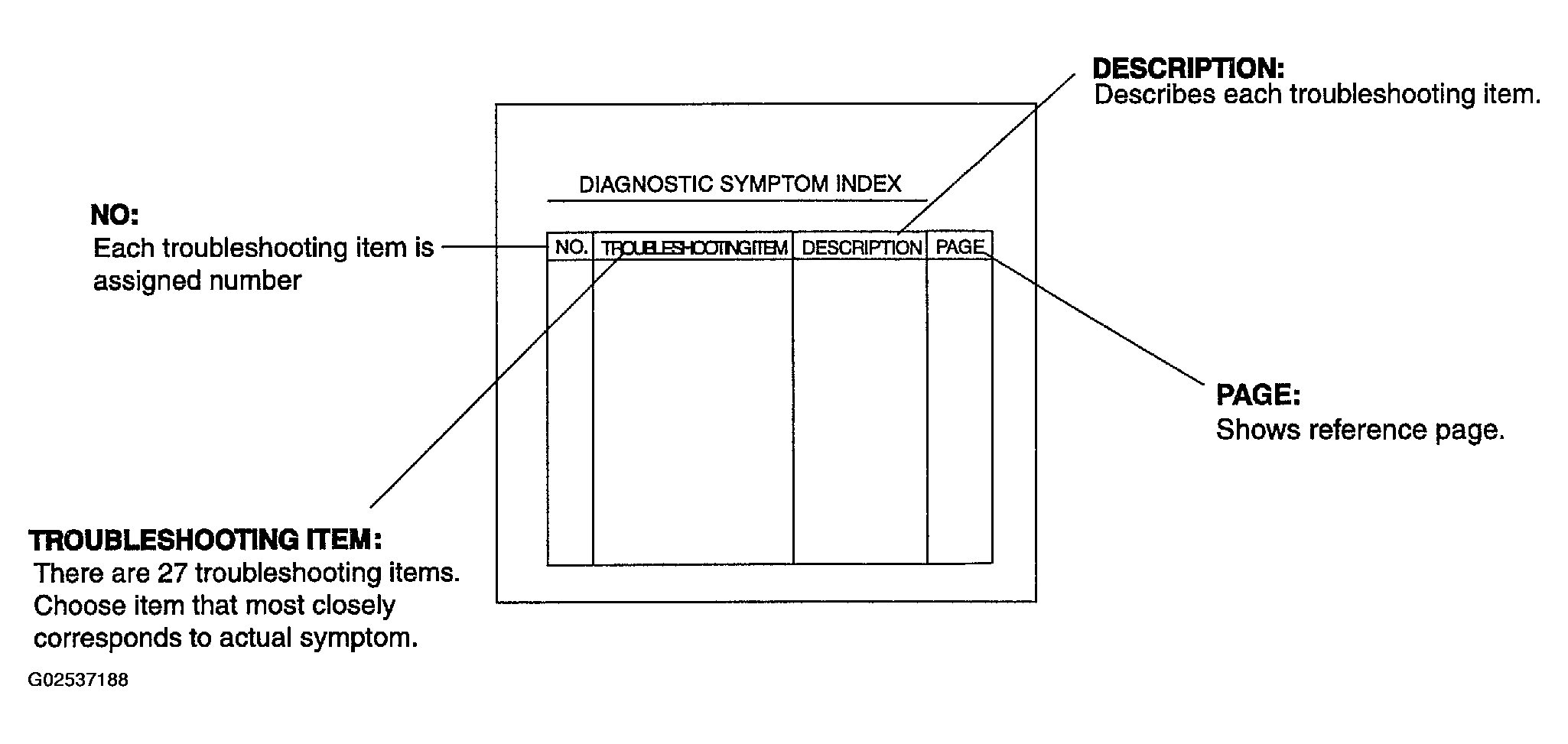

Fig 1: Diagnostic Symptom Index (1 Of 2)
G02537188Courtesy of KIA MOTORS AMERICA, INC.

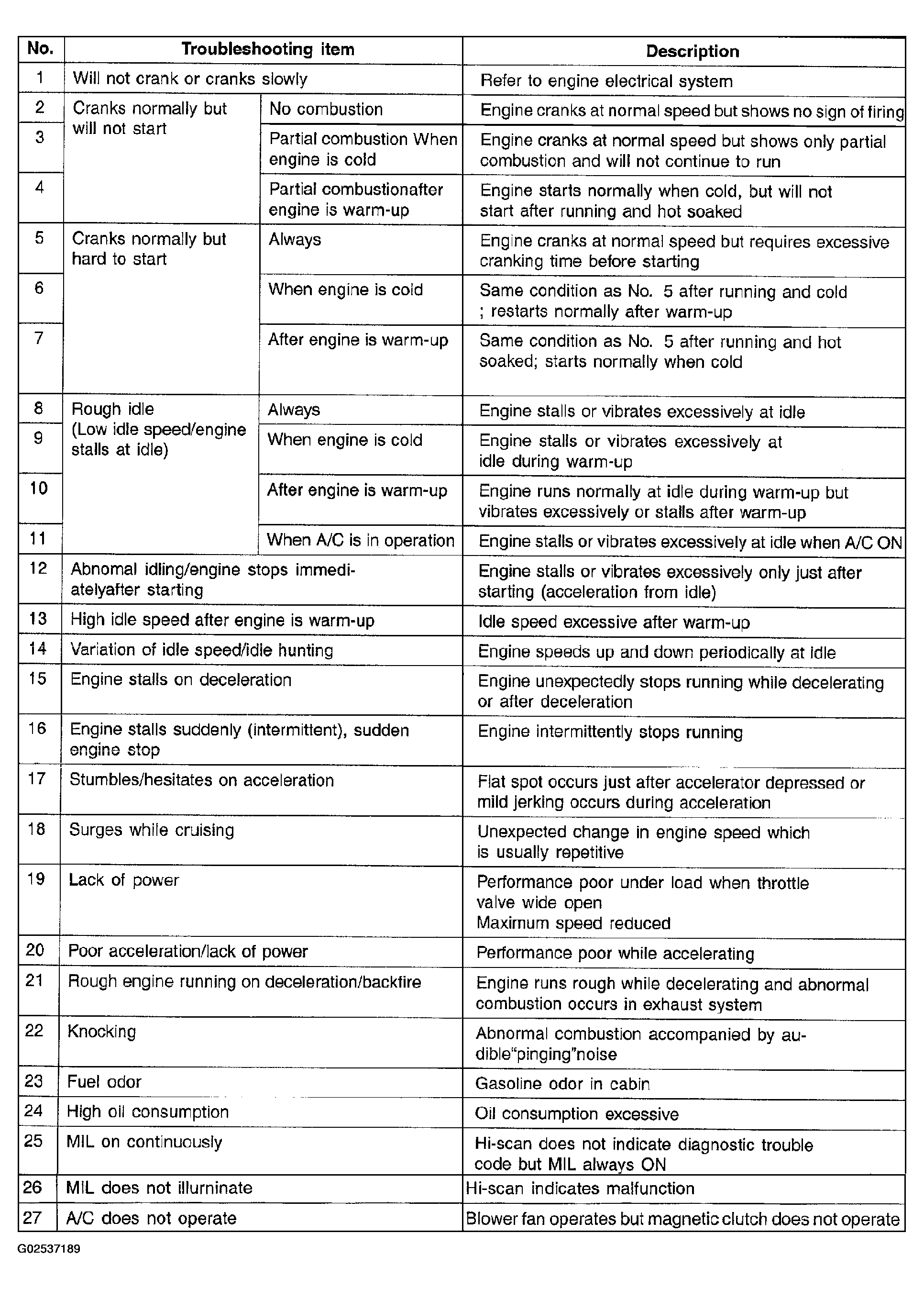

Fig 2: Diagnostic Symptom Index (2 Of 2)
G02537189Courtesy of KIA MOTORS AMERICA, INC.
