Oxygen Sensor (O2S): Installation

  1. Install heated oxygen sensor and washer.

    Tightening Torque:

    1. 22-36 lb-ft (30~49 N.m, 3~5 kg-m)
  2. Reconnect heated oxygen sensor connector.

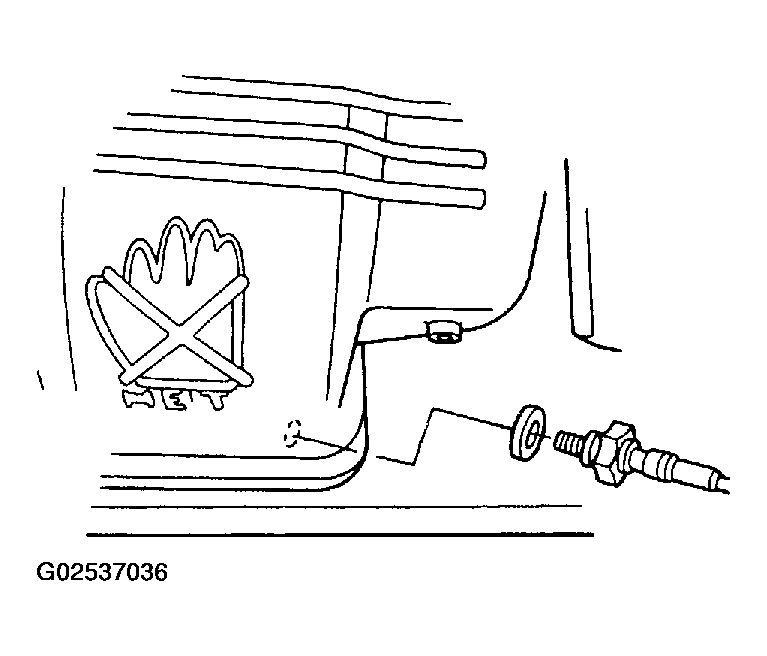

    Fig 1: Installing Heated Oxygen Sensor And Washer
    G02537036Courtesy of KIA MOTORS AMERICA, INC.
