Idle Air Control (IAC) Valve: Removal

  1. Check that ignition key is in OFF position.
  2. Disconnect IAC connector.
  3. Remove two bolts and remove IAC valve from dynamic chamber.

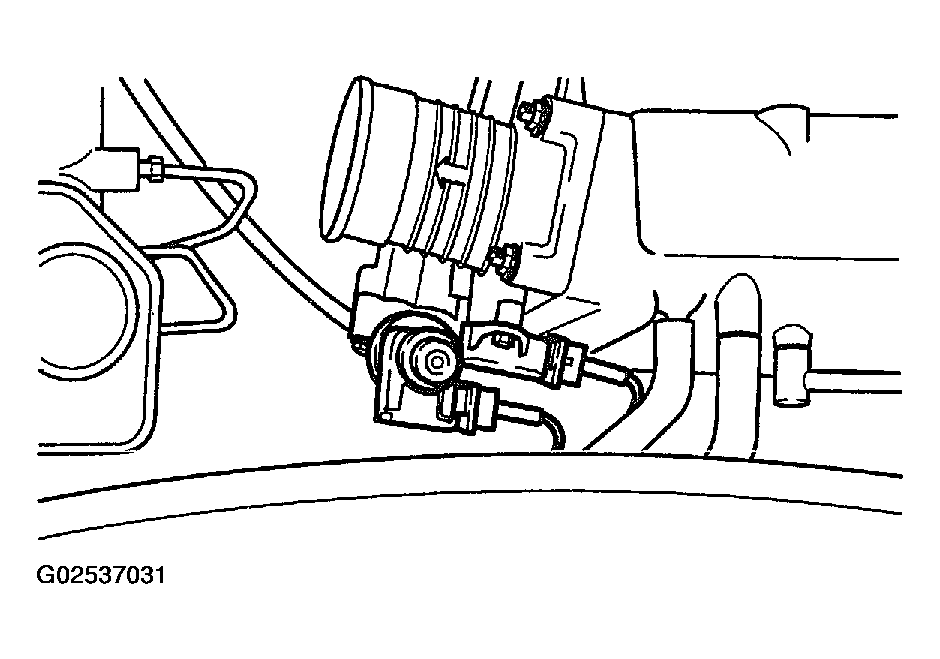

    Fig 1: Removing IAC Valve
    G02537031Courtesy of KIA MOTORS AMERICA, INC.
