Engine Control Module

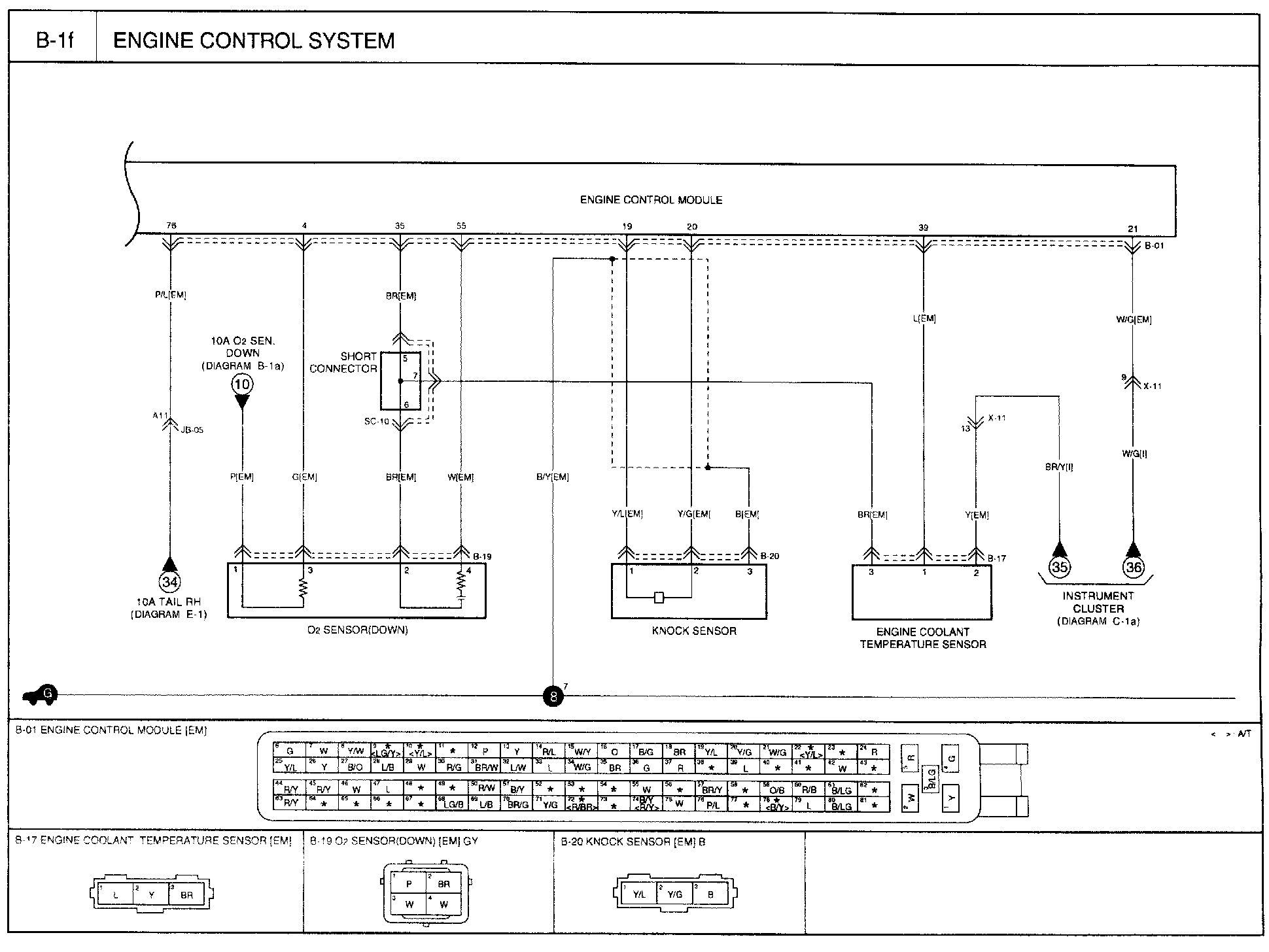

Diagram B-1f:
Pin No. 1 - 12:
Pin No. 13 - 28:
Pin No. 29 - 49:
Pin No. 50 - 68:
Pin No . 69 - 81:
