H-1b - Auto Trans Control Sys,A/T Shift Interlock Control Sys

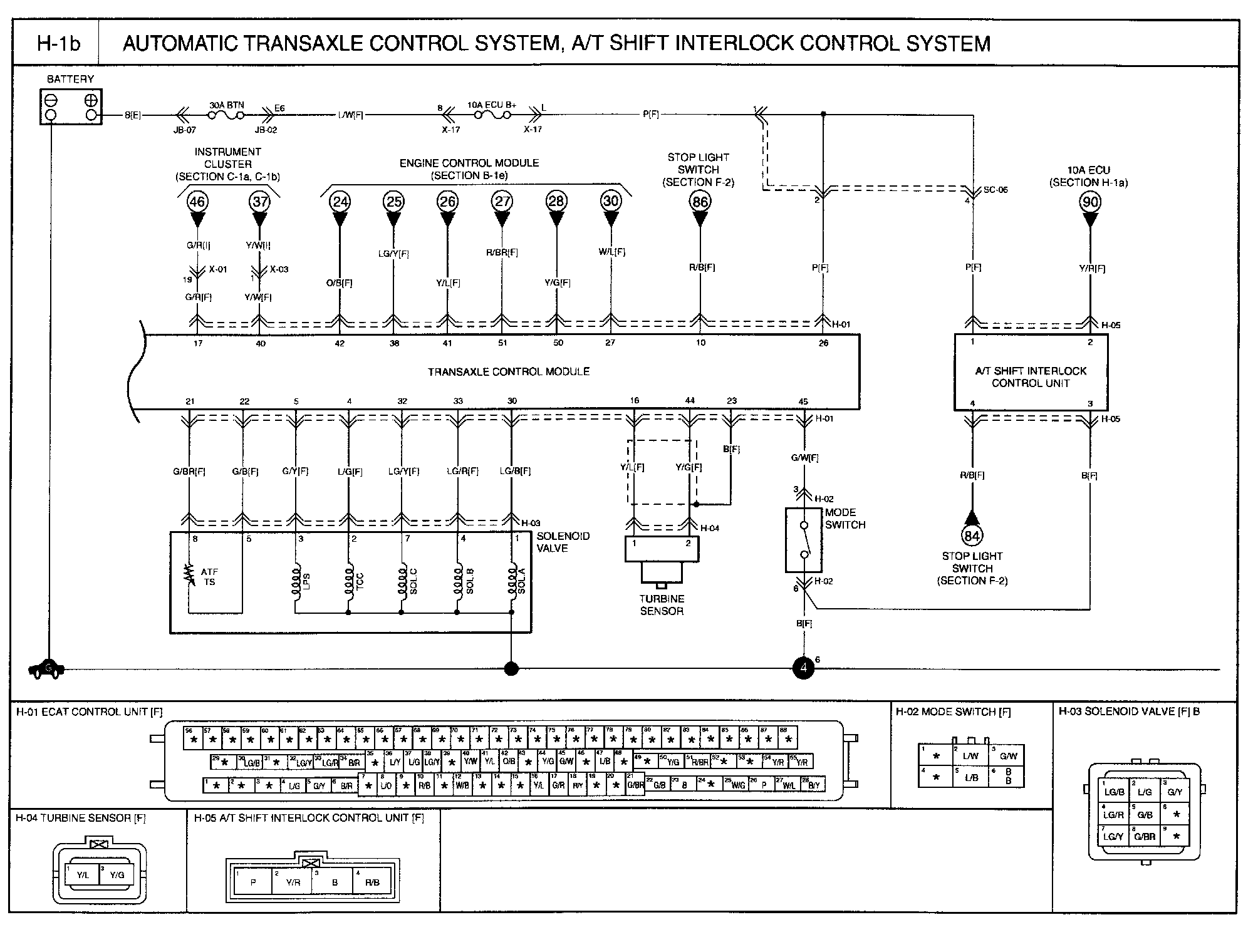

H-1b - Automatic Transaxle Control System, A/T Shift Interlock Control System Circuit:

NOTE: Other diagrams referred to by section number but not shown here can be found at Diagrams by Diagram Section Number. Electrical Diagrams
