Fuel Filter: Service and Repair

REMOVAL

WARNING: Fuel is explosive. When working on fuel system make sure to supply adequate ventilation to the work area. Do not smoke, and keep sparks and open flames away.

1. Depressurize fuel system. Refer to Releasing fuel system pressure.

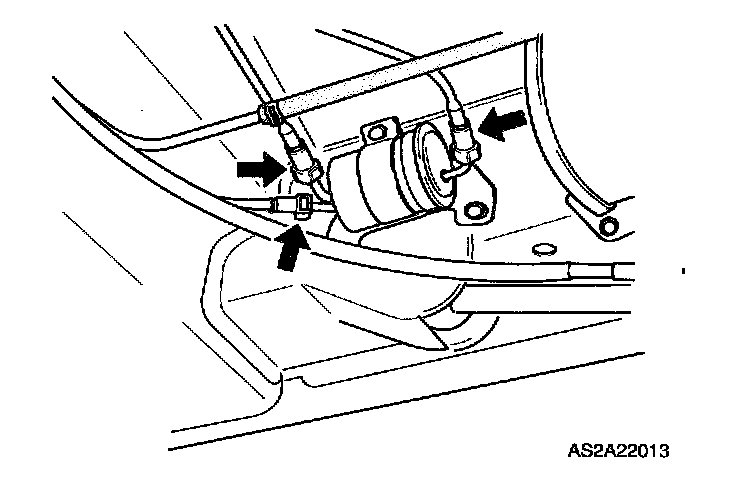

2. Disconnect fuel hoses from fuel filter.




3. Remove fuel filter and bracket.

INSTALLATION

When installing fuel filter, push fuel hose fully onto fuel filter.

1. Install fuel filter and bracket.

Tightening torque: 9.5 lb.ft (12.9 Nm, 1.3 kg.cm)

2. Connect fuel hoses.
