Power Window Switch: Service and Repair

Power window system

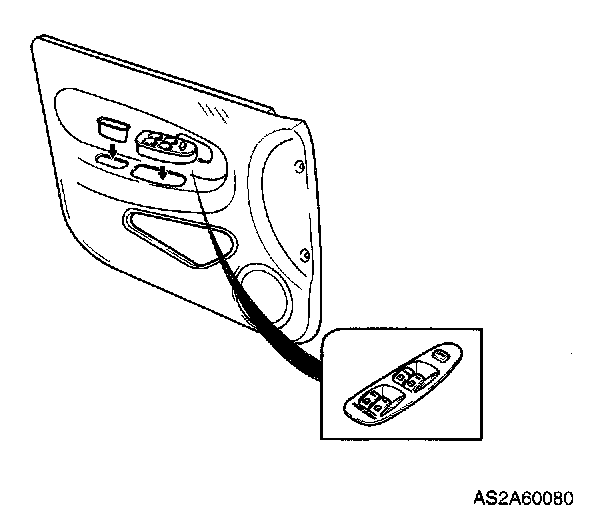

Operating switches

Removal
1. Disconnect negative battery cable.




2. Remove power window operating switch and disconnect power window harness connector.

Installation
1. Install power window switch on door trim.
a. Set power window operating switch into armrest cavity and snap switch assembly into place.

2. Connect power window harness connector to power window operating switch.
3. Connect negative battery cable.
