Brakes and Traction Control: Testing and Inspection

TROUBLESHOOTING

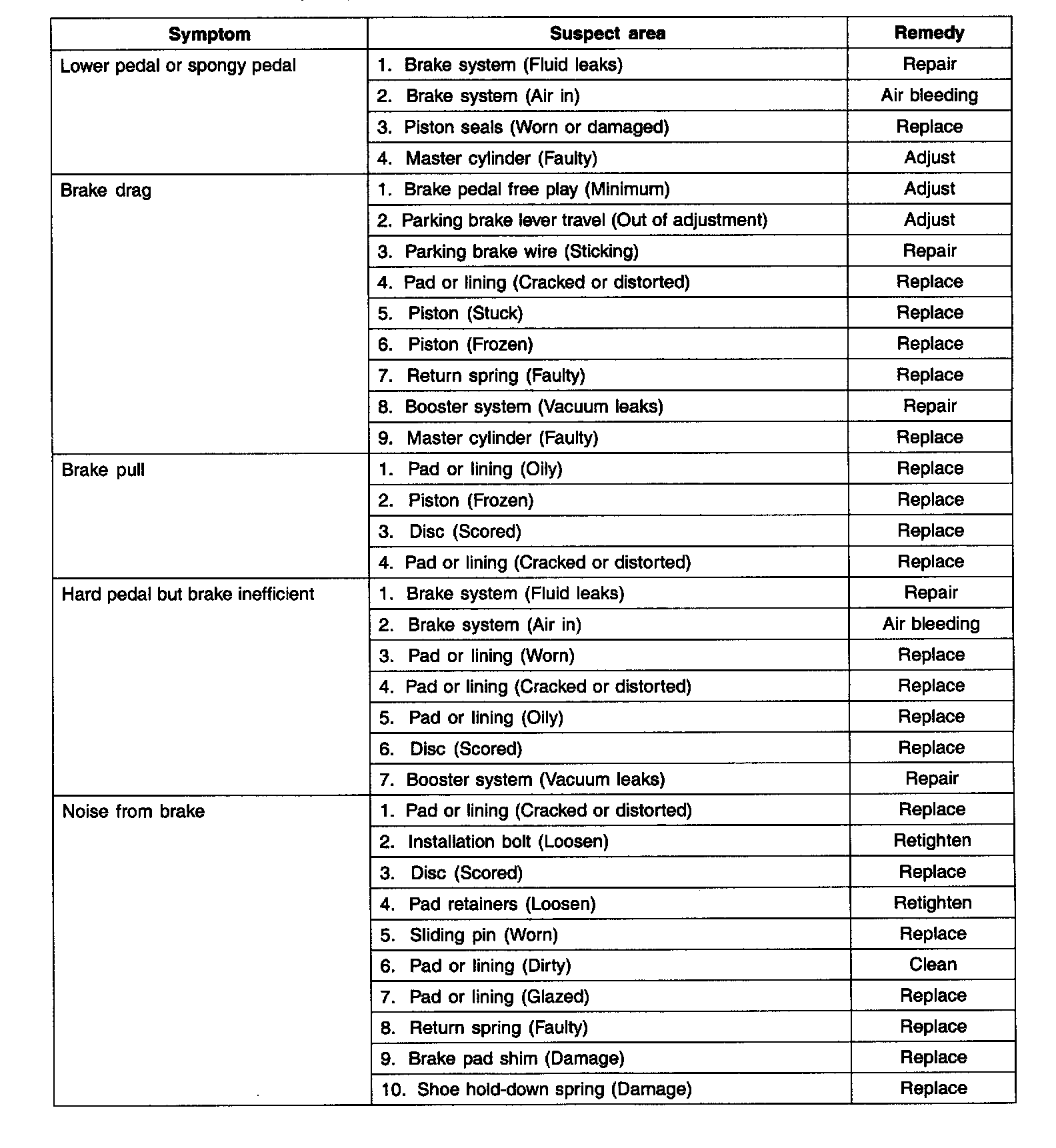

PROBLEM SYMPTOMS TABLE





Use the table below to help you find the cause of the problem. The numbers indicate the priority of the like cause of the problem. Check each part in order. If necessary, replace these parts.

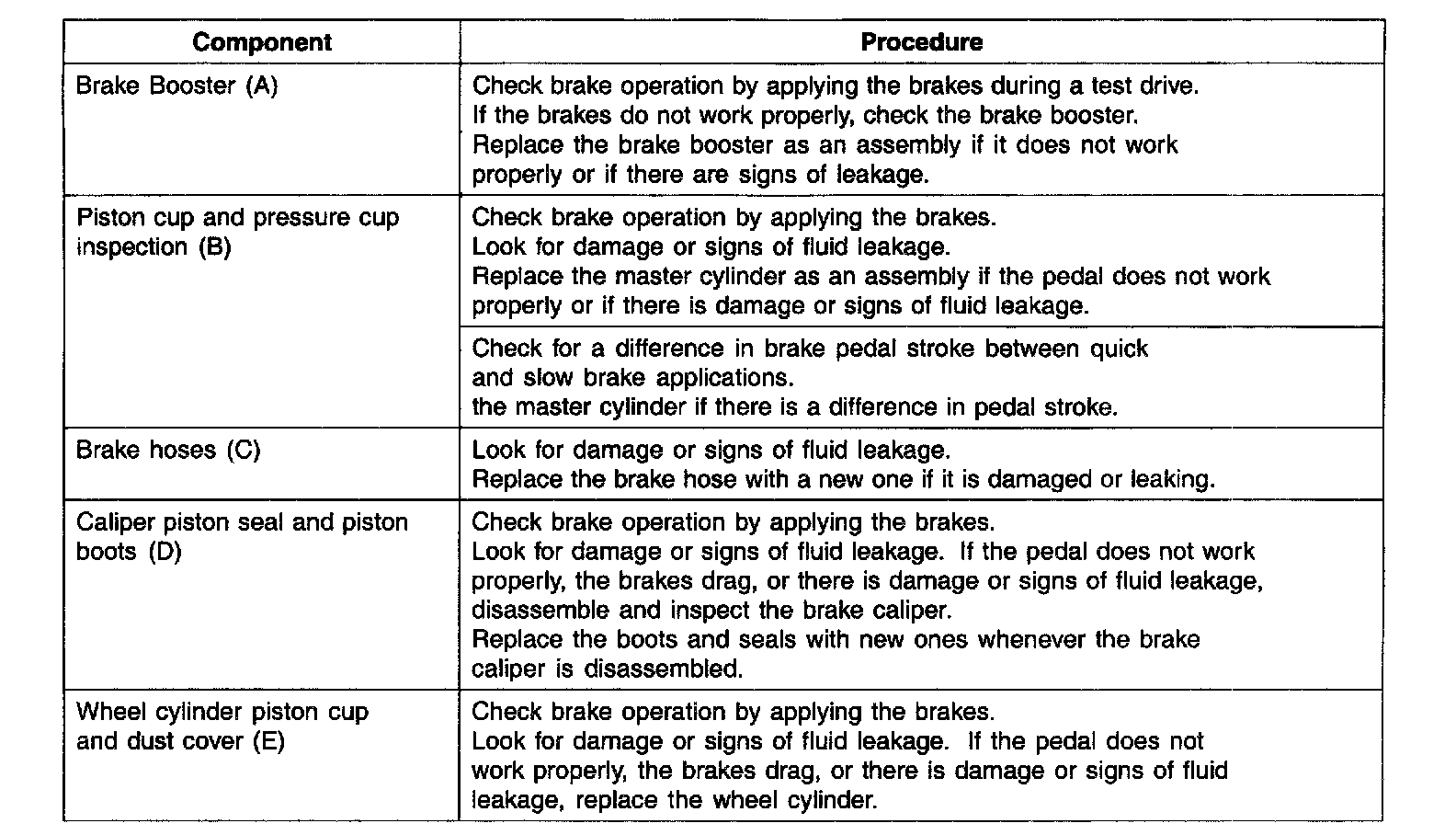

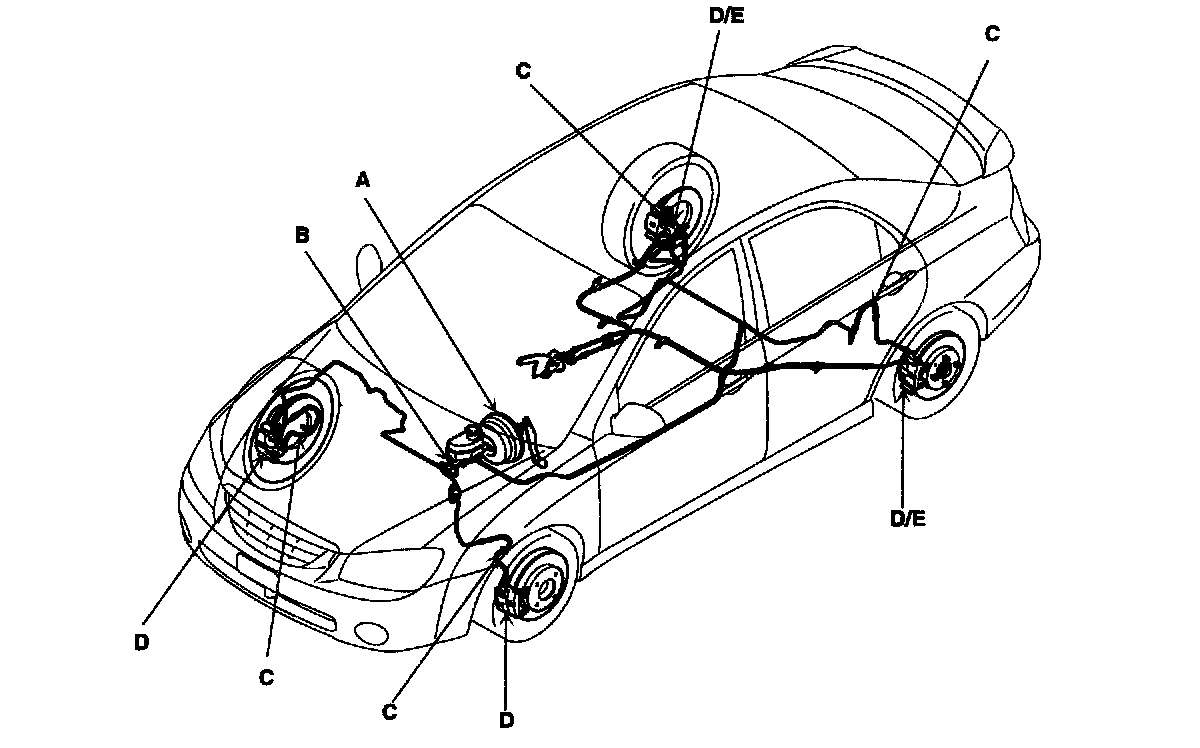

OPERATION AND LEAKAGE CHECK

Part 1:

Part 2:

CHECK ALL OF THE FOLLOWING ITEMS:
