Cruise Control Switch: Service and Repair

CRUISE CONTROL MAIN SWITCH

REMOVAL

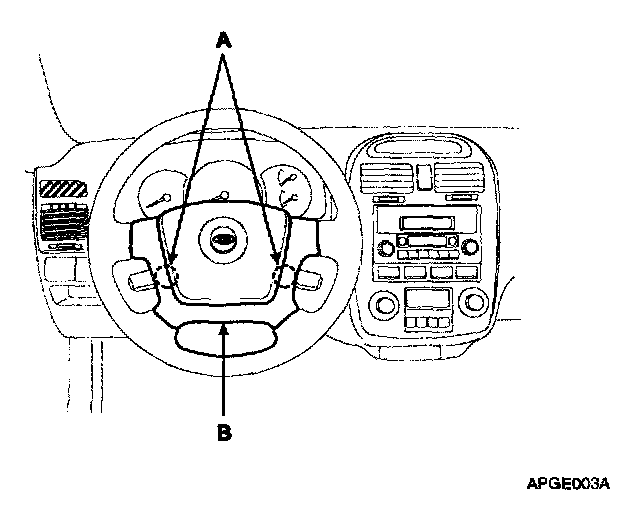

1. Remove the air bag module(B) with two hexagonal bolts(A).
2. Disconnect the air bag module connectors.

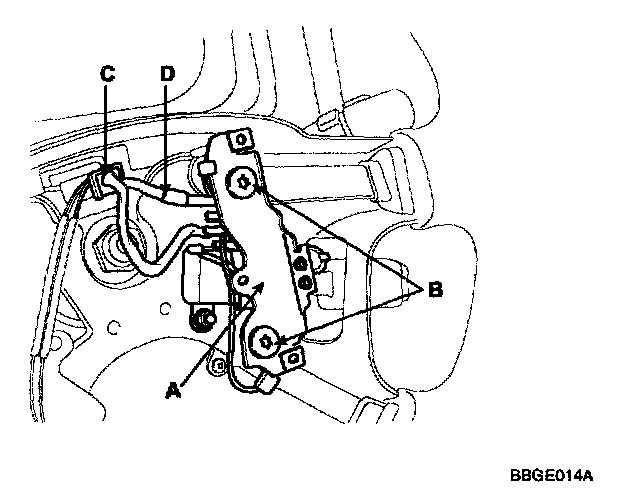

3. Remove the horn switch(A) with two hexagonal bolts(B).
4. Disconnect the auto cruise switch connector(C) and horn switch connector(D).

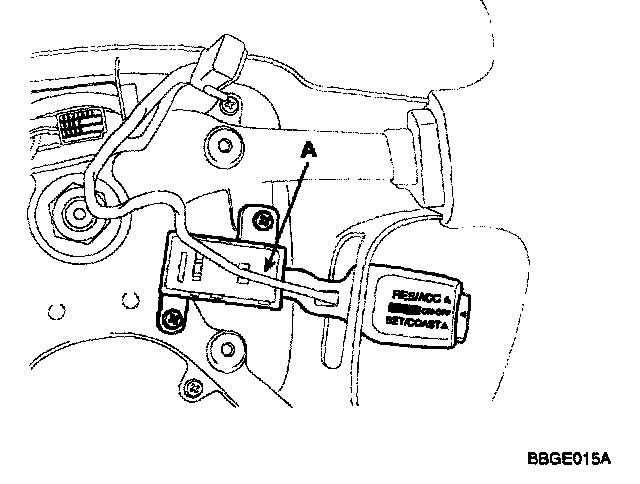

5. Remove the auto cruise switch(A) with two screws.
6. Installation is the reverse of removal.
