Electrical Diagrams



Engine/Transaxle Control System

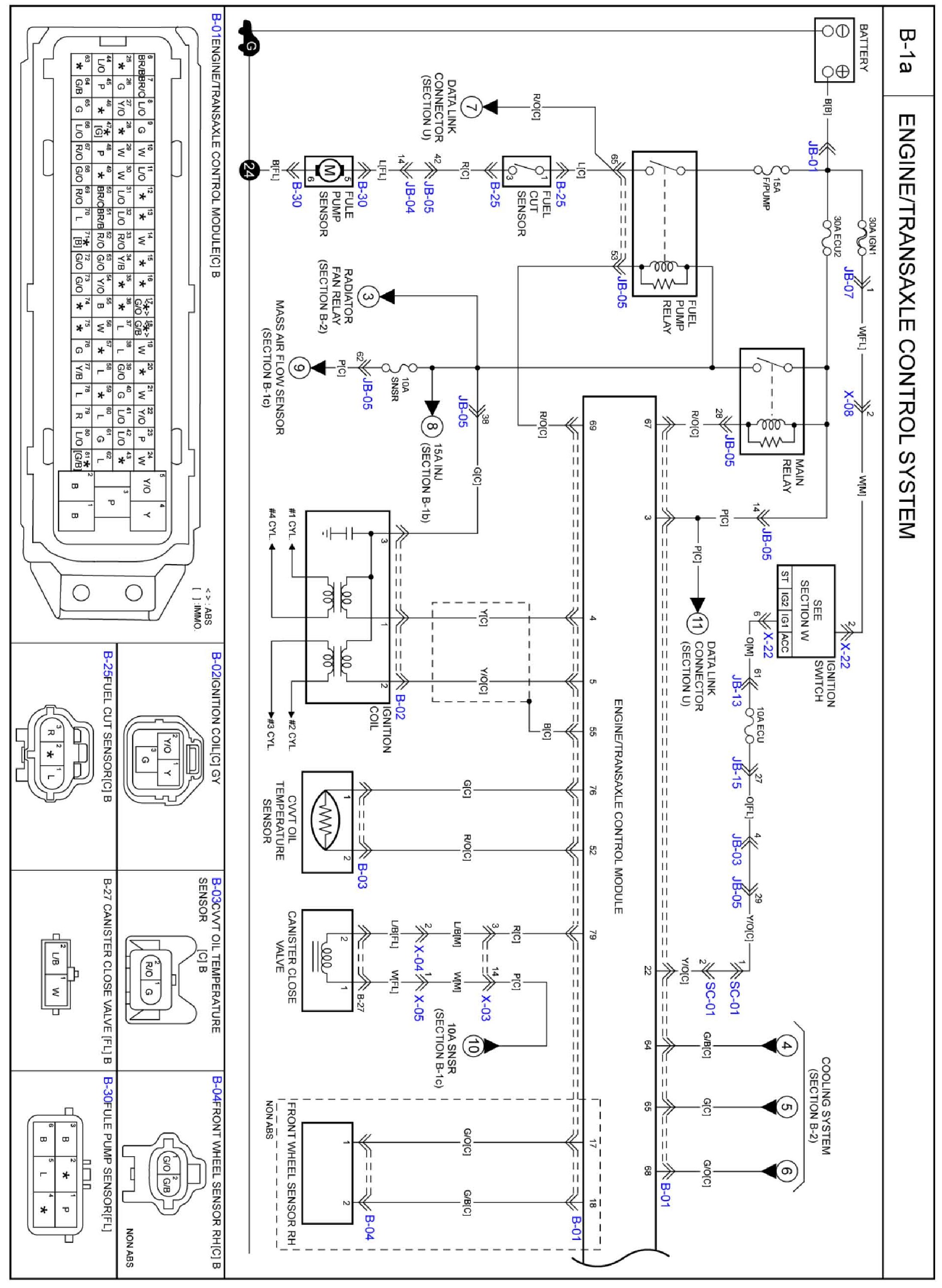

Diagram B-1a:

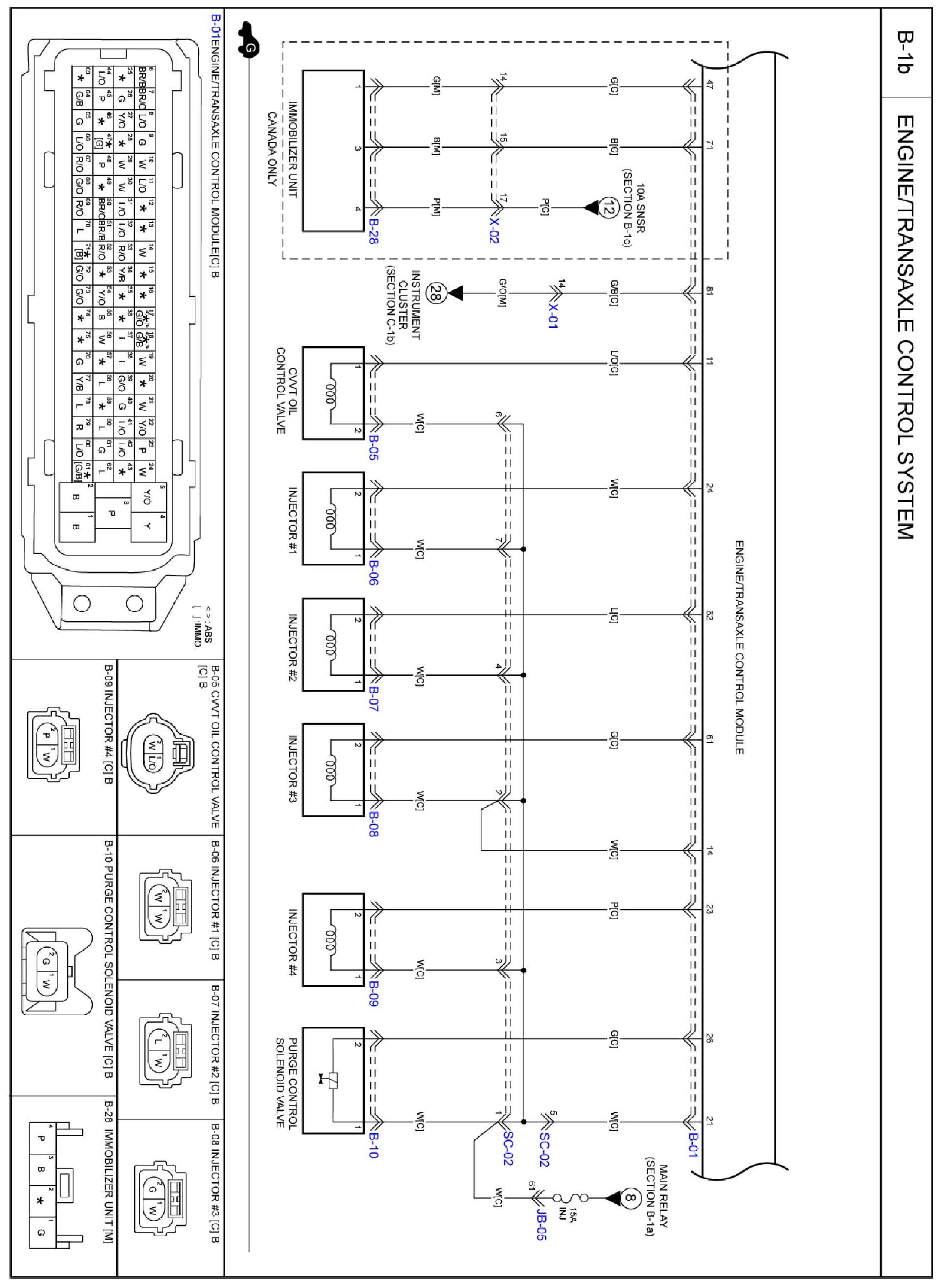

Diagram B-1b:

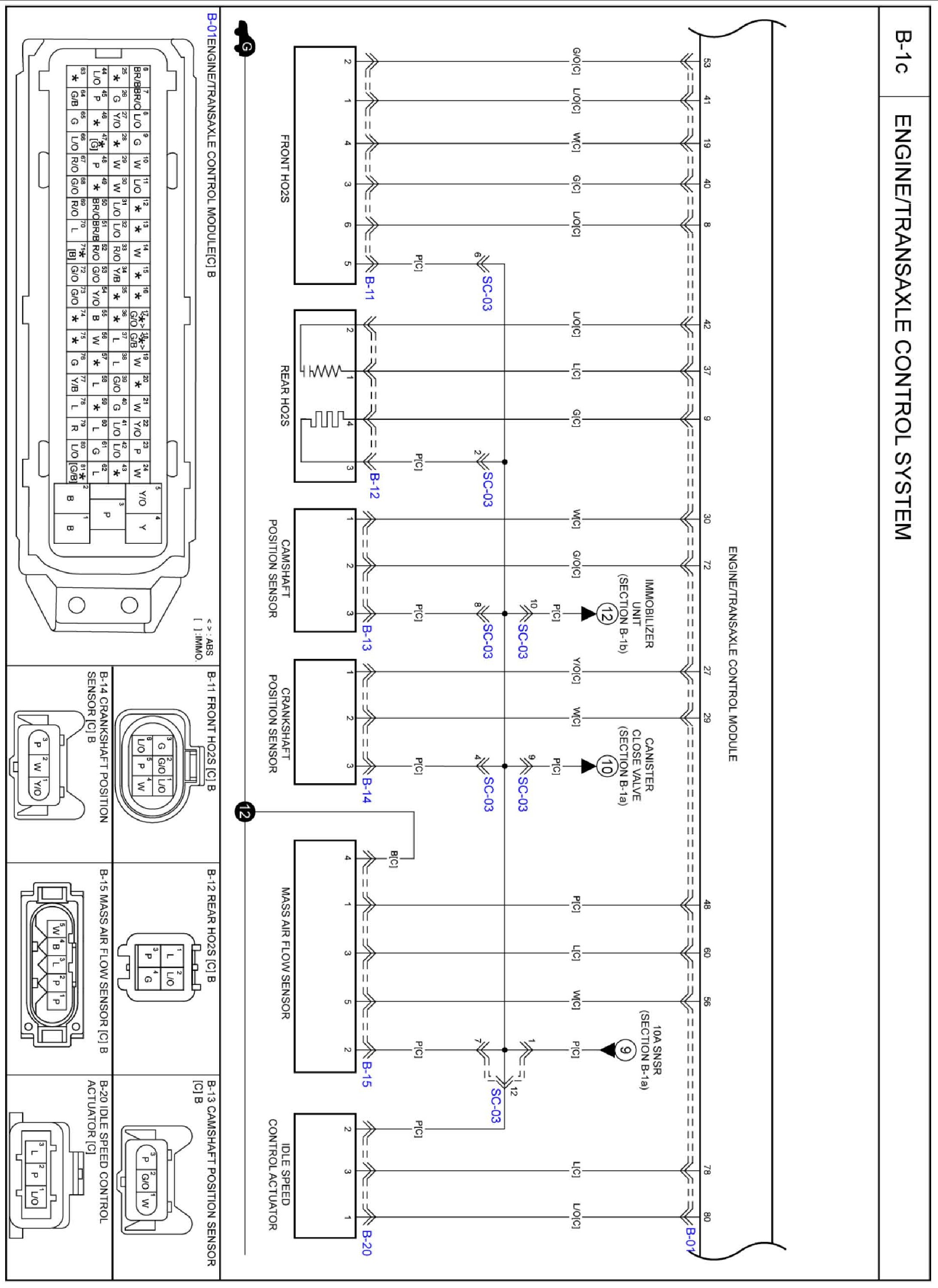

Diagram B-1c:





Diagram B-1d:

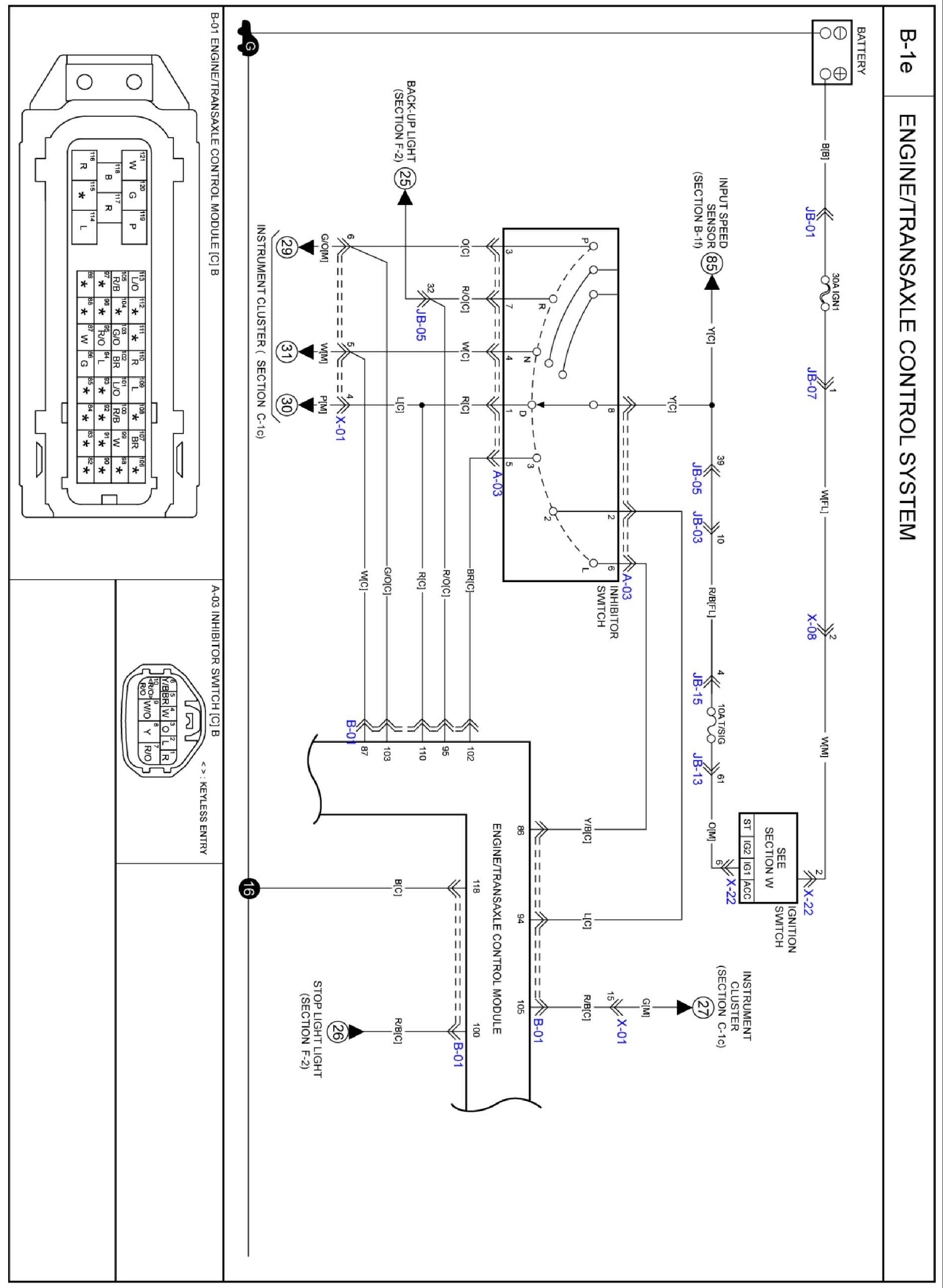

Diagram B-1e:

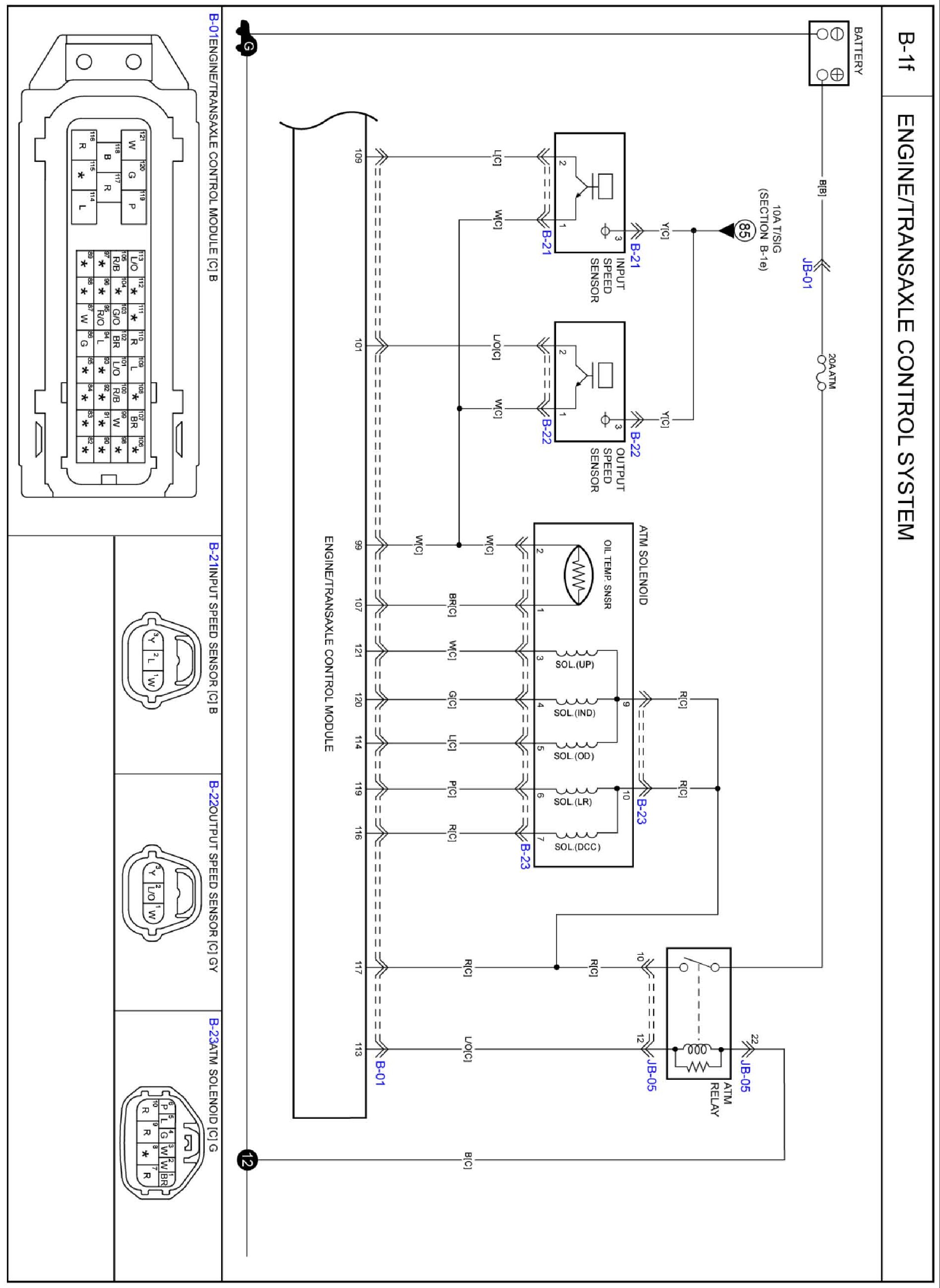

Diagram B-1f:
