Spark Plug: Service and Repair

INSPECT SPARK PLUG

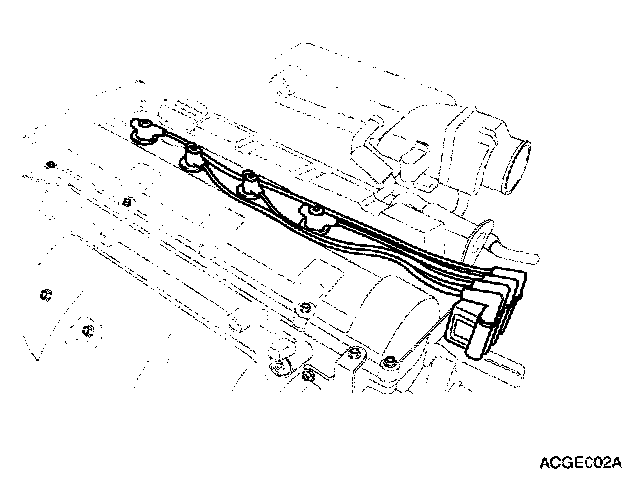

1. Remove the spark plug cable.

NOTE: When removing the spark plug cable, pull on the spark plug cable boot (not the cable), as it maybe damaged.

2. Using a spark plug socket, remove the spark plug.

CAUTION: Be careful that no contaminates enter through the spark plug holes.

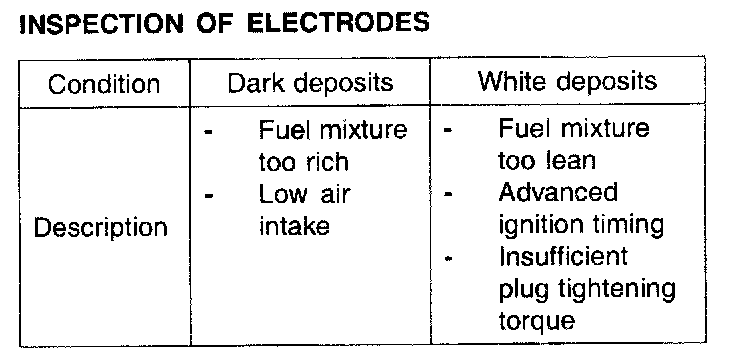

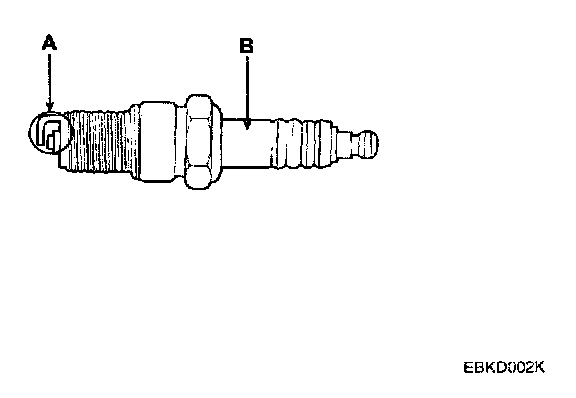

3. Inspect the electrodes (A) and ceramic insulator (B).

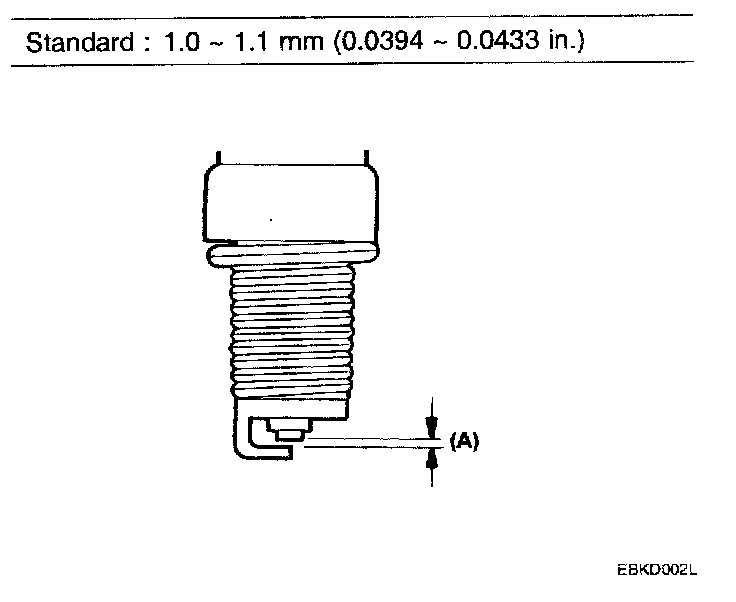

4. Check the electrode gap (A)

Standard : 1.0 - 1.1 mm ( 0.0394 - 0.0433 in )
