Replacement of Terminals

REPLACEMENT OF TERMINALS

Use appropriate tools to remove terminal as shown. When installing the terminal, insert it until it locks securely.

FEMALE

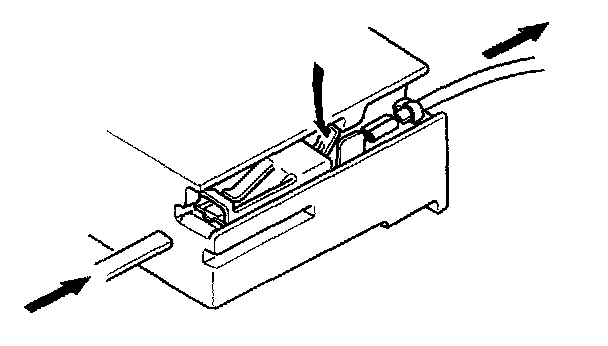

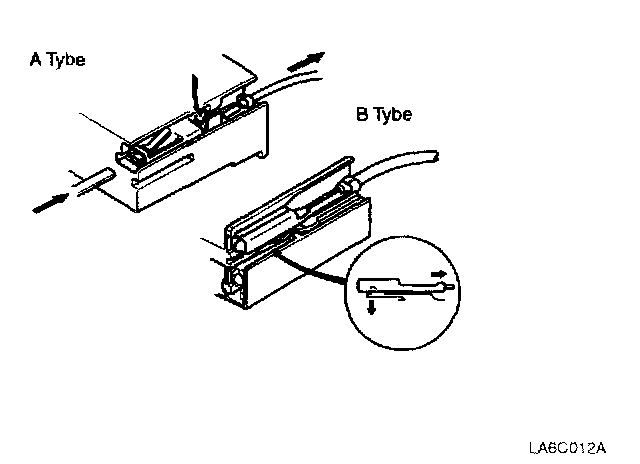

Insert a thin piece of metal from the terminal side of the connector, and then, with the terminal locking tab pressed down, pull the terminal out of the connector.

MALE




Follow the same procedure as female-type terminal.

SENSORS, SWITCHES, AND RELAYS




Always handle sensors, switches and relays carefully.

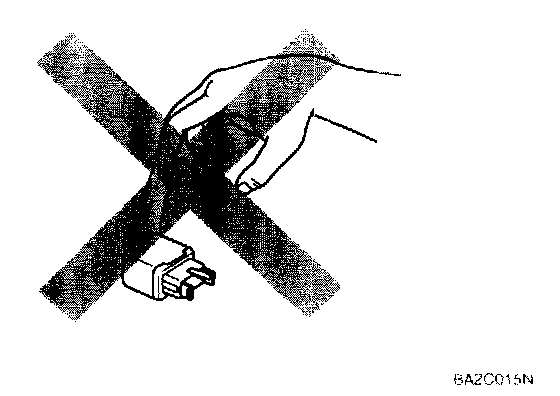

Do not drop them or accidentally strike them against other parts.
