Wiring Color Codes

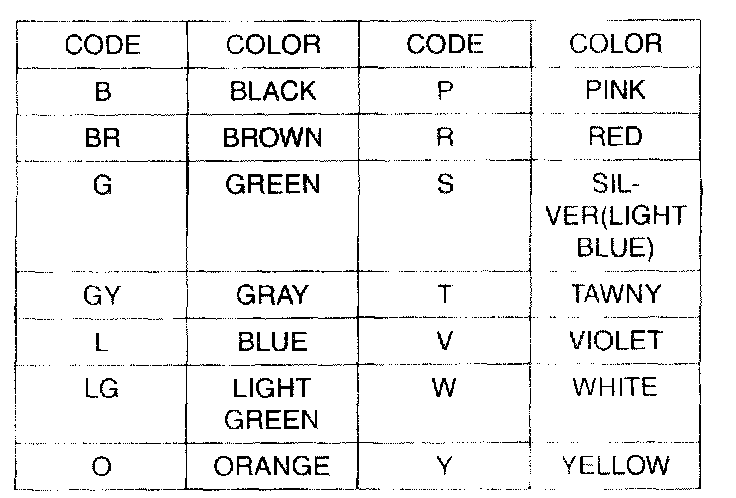

WIRING COLOR CODES

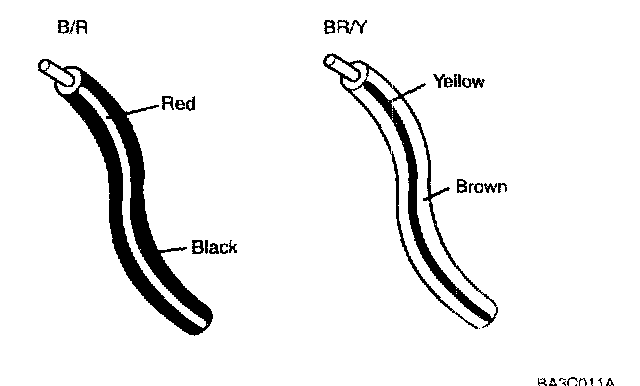

Two-color wires are indicated by a two-color code symbol. The first color indicates the base color of the wire; the second color indicates the color of the stripe.
