Self-Diagnostic Function: Notes
- If the self-diagnostic function is in operation, CAN communication stops and LIN communication is converted into self-diagnostic communication.
- Only BCM communicates directly with Hi-scan, and the other units perform self-diagnostic function by BCM through the mediator of CAN or LIN.

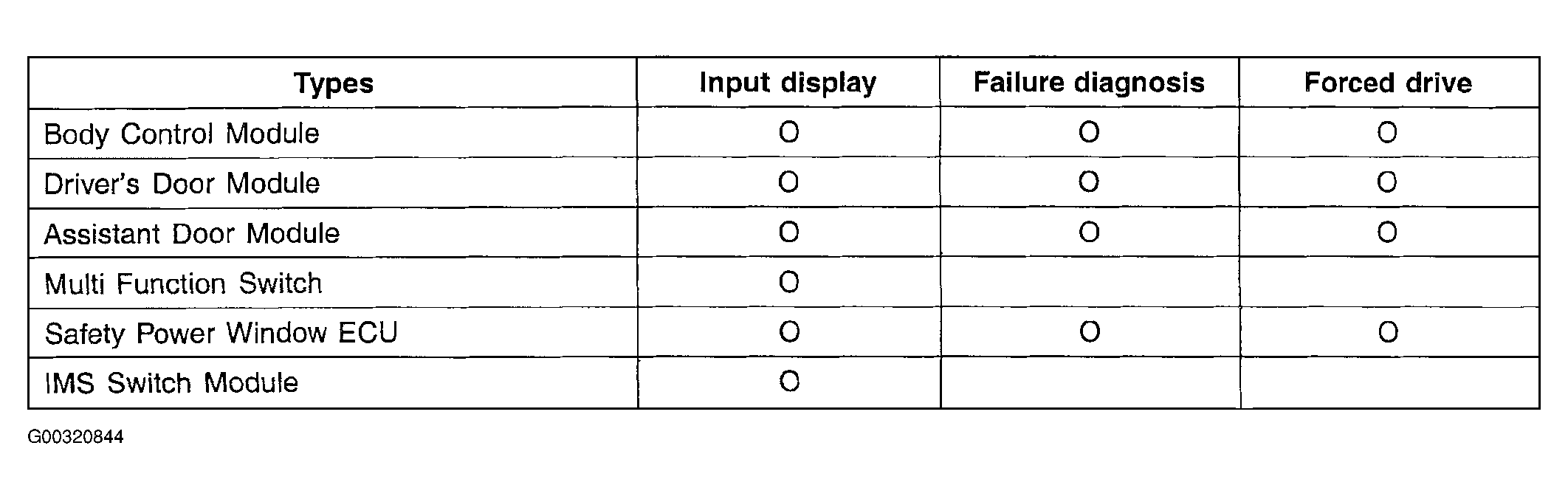

- Self-diagnostic functions of the units.
